Vehicle - Maintenance Schedules
CATEGORYMaintenance
SECTION PAGE
1 46
ISSUE CODE
10/95-0623 100
Subject: Maintenance Schedule
Application: 1994-1996 900 and 9000
Supersedes PSI 07/95-0603
To help you in preparing your Service Menus for 1994, 1995 and 1996 models, listed below are Maintenance Schedule Highlights, indicating any changes, for all 1994 and 1995 models (note: for 1994 900 Convertibles, follow the 1993 900 Maintenance Schedule):
PDI Times:
900 models
1994 Convertible 2.9 hour
1994 900 1.8 hour
**1995-1996 900 2.0 hour (1.3 + 0.7 hour)*
1995-1996 Convertible 2.5 hour (1.8 + 0.7 hour)**
9000 models:
1994 9000 2.3 hour
**1995-1996 9000 2.5 hour(1.8 + 0.7 hour)*
*Time allotted is split amongst originally invoiced dealer and retailing dealer, if different. Effective April 1, 1995.**
Maintenance Intervals are the same from 1993:
First Service Oil Change/
(Free to Customer) Inspection Service Major Services
5000 Miles 15,000 105,000 35,000 125,000
25,000 135,000 65,000 155,000
45,000 145,000 95,000 185,000
55,000 165,000
75,000 175,000
85,000 195,000
Changes and/or Additions to Items included in Maintenance Schedule:
Automatic Transmission Fluid Change:
900 models: 65,000 miles
9000 models: change fluid and filter at 5,000 miles and every 30,000 miles thereafter
Ventilation Air Filter:
900 models: Change at 15,000 miles and every 10,000 miles thereafter
9000 models: Change at 35,000 miles and every 30,000 miles thereafter
Drive Belts:
900 and 9000 Camshaft drive belt (V6 engine only): Change at no charge to the customer at 35,000, 65,000 and 95,000 miles
900 and 9000 Drive belts; check tension, Poly-V tensioner function and belt condition and replace if necessary: first at 15,000 miles and every 10,000 miles thereafter
Airbag System, SRS warning lamp, visual inspection:
900 and 9000: Check first at 5,000 mile First Service and every 10,000 miles thereafter
Safety Belts; operation and visual inspection of belts for tears or fraying:
900 and 9000 models: Check at 5,000 mile First Service and every 10,000 miles thereafter
Wipers; clean glass and wiper blades, check blades:
900 and 9000 models: Check at 5,000 mile First Service and every 10,000 miles thereafter
Check and top up washer system:
900 and 9000: Check at 5,000 mile First Service and every 10,000 miles thereafter

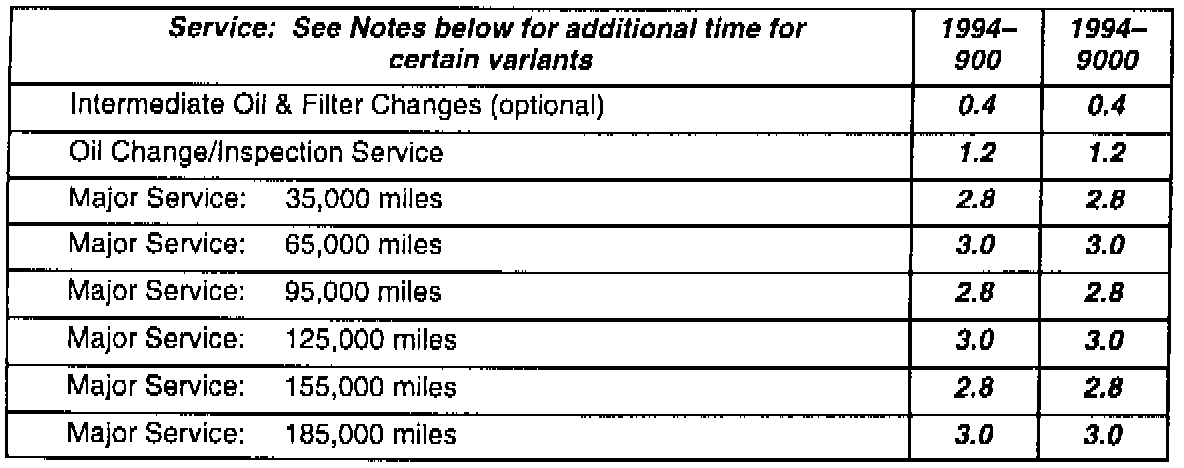

Labor Time Schedule:
**Listed below are the times you can use in developing a Service Menu for the 1994, 1995 and 1996 900 models for your Dealership (times for 9000 remain the same from 1993 but for your convenience have been included):**
Additional Times For Certain Variants:
900
Add 0.3 hour for R & R spark plugs on V6 equipped models, when required
Add 0.2 hour to change ATF on automatic transmission equipped models at 65,000 miles
Add 1.3 hour to R & R camshaft drive belt on V6 equipped models at 35,000, 65,000 and 95,000 miles
9000
Add 0.4 hour to change automatic transmission fluid & filter at Major Services
Add 1.3 hour to R & R camshaft drive belt on V6 equipped models at 35,000, 65,000 and 95,000 miles
Other Service Times (applicable when car is in for service):
900
Add 0.3 hour for R & R front brake pads, if needed
Add 0.3 hour for R & R rear brake pads, if needed
Add 0.6 hour for front toe-in adjustment, if needed
9000
Add 0.3 hour for R & R front brake pads, if needed
Add 0.5 hour for R & R rear brake pads, if needed
Add 0.6 hour for front toe-in adjustment, if needed
Add 0.2 hour for R & R spark plugs (extra change, if needed)
