Engine Oil Filters/Drain Plug Gaskets - Part Numbers

CATEGORY: Engine

SECTION: 2

ISSUE: 03/95-0555

CODE: 221

SUBJECT:
Engine Oil Filters and Drain Plug Gaskets

APPLICATION:
900 and 9000 Models

For reference purposes, listed below are correct part numbers for engine oil filters and drain plug gaskets for all Saab models.

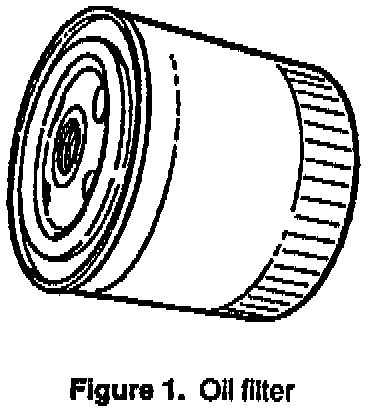

Please note that the 4-cylinder engine oil filter will thread on to a 6-cylinder engine. However, It will cross-thread and loosen up resulting in a loss of engine oil pressure. For further identification purposes. note that the oil filter for the 4-cylinder engine has a rubber flap behind the little holes which acts as a anti-drain back valve. The filter for the 6-cylinder engine does not have this flap. Rather, its anti-drain back function is performed within a casting in the engine block itself.

CARS AFFECTED:

All 900 models
All 9000 models

PARTS:

4-cylinder engine oil filter 91 44 445
6-cylinder engine oil filter 45 02 696
4-cylinder engine drain plug gasket 91 32 937
6-cylinder engine drain plug gasket 45 02 134
