Maintenance Required Lamp/Indicator: Application and ID

SID UNIT:
The SID (Saab Information Display) consists of an EDU (Electronic Display Unit) and SCC (Saab Car Computer) integrated in a single unit. It is located in the upper part of the center console.

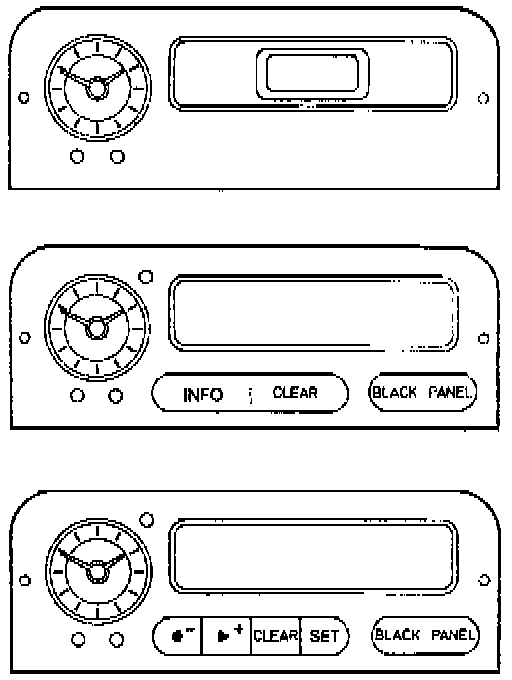

There are four different versions of the SID:

SID unit 1:
Clock (analogue)
Outside temperature display
Light sensor

SID unit 2:
Clock (analogue)
Outside temperature display
Light sensor
Audio display
CHECK messages
BLACK PANEL
Trip computer
Self-diagnostics

SID unit 3:
Clock (analogue and digital)
Outside temperature display
Light sensor
Audio display
CHECk messages
BLACK PANEL
Trip computer (advanced)
Self-diagnostics

SID unit 4:
SID unit 1 with audio display
