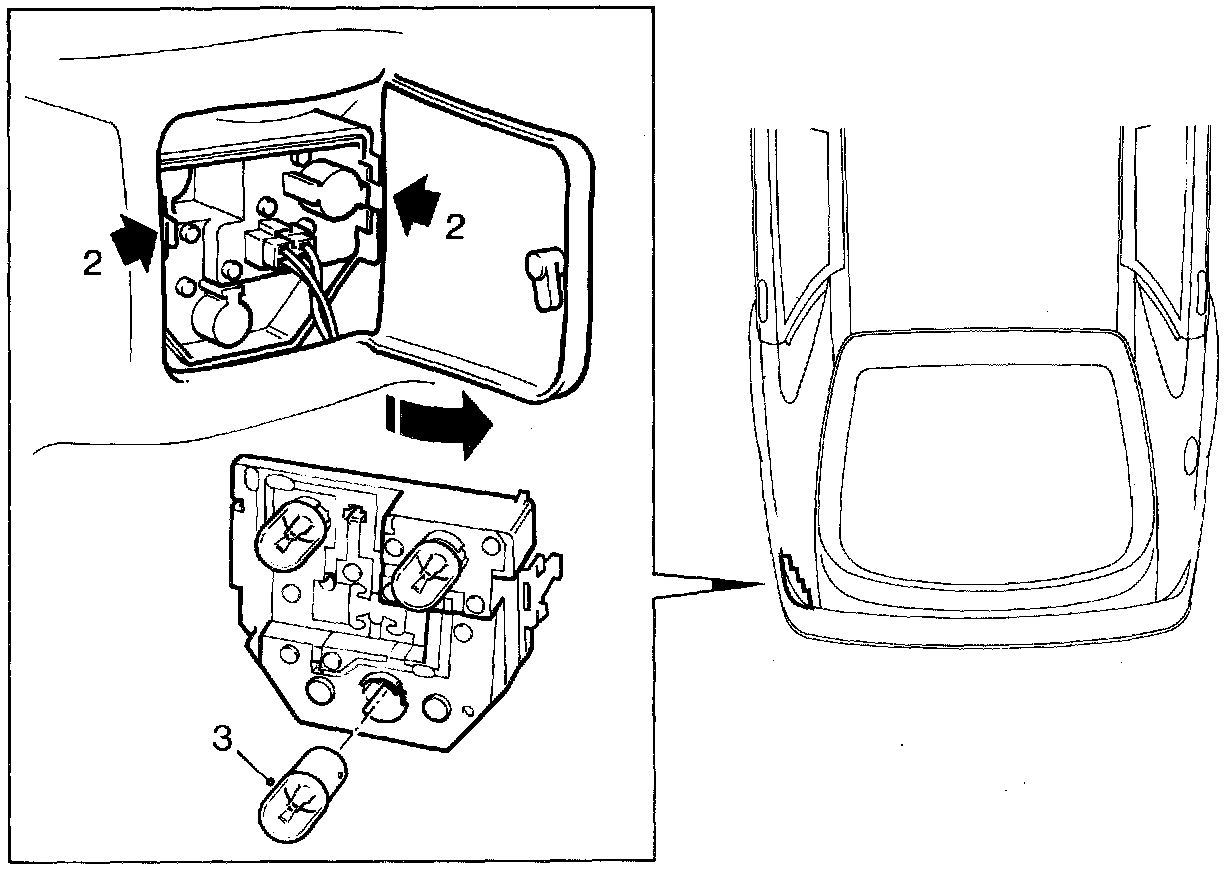

Replacement of Rear Light Bulbs





1 Open the flap in the side trim.
2 Remove the bulb holder by pressing in the locking tongues.
3 Change the bulb.
