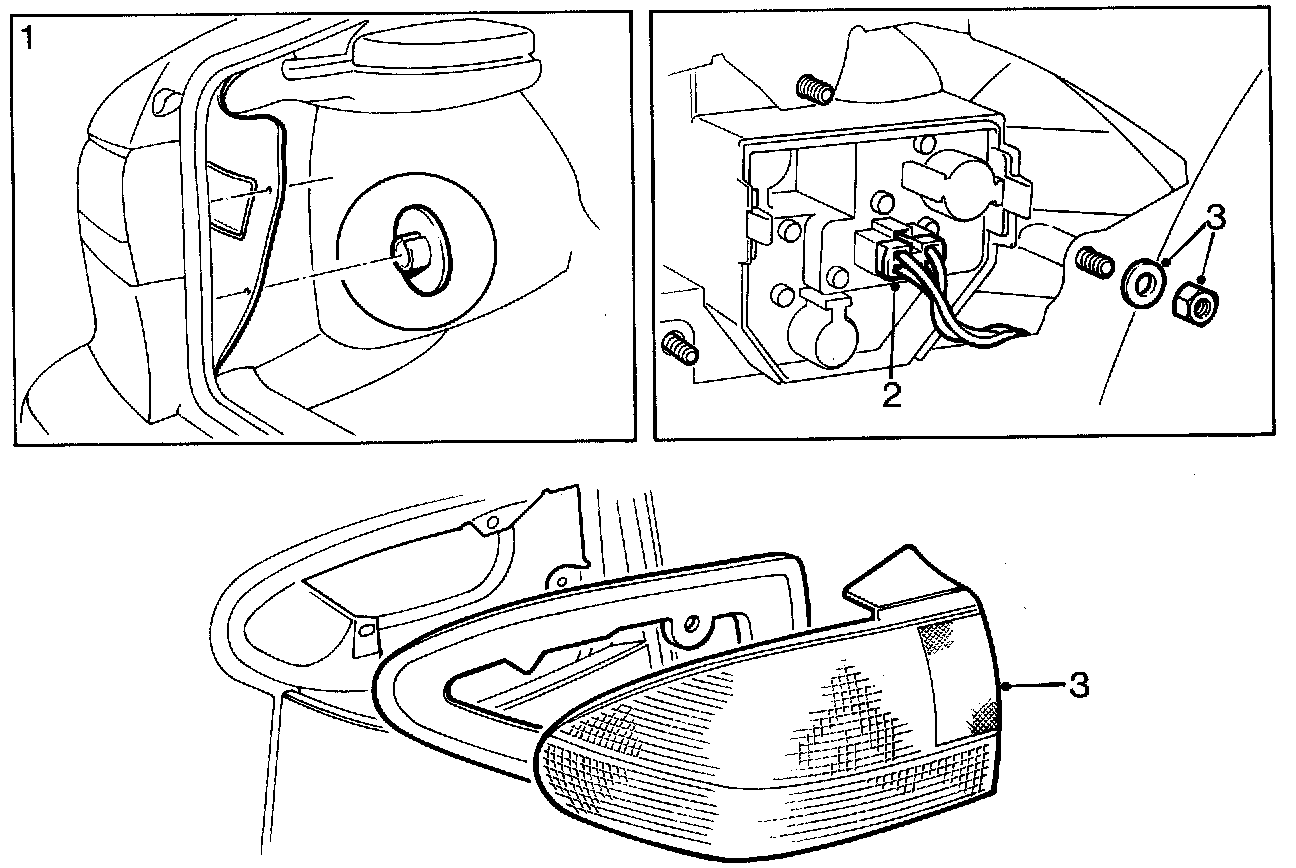

Replacement of Rear Lights




1 Remove the screw clip at the rear of the side trim and fold down the trim.
2 Unplug the 4-pin connector from the bulb holder.
3 Remove the three nuts securing the lamp body and remove the light cluster.
Install in reverse order
