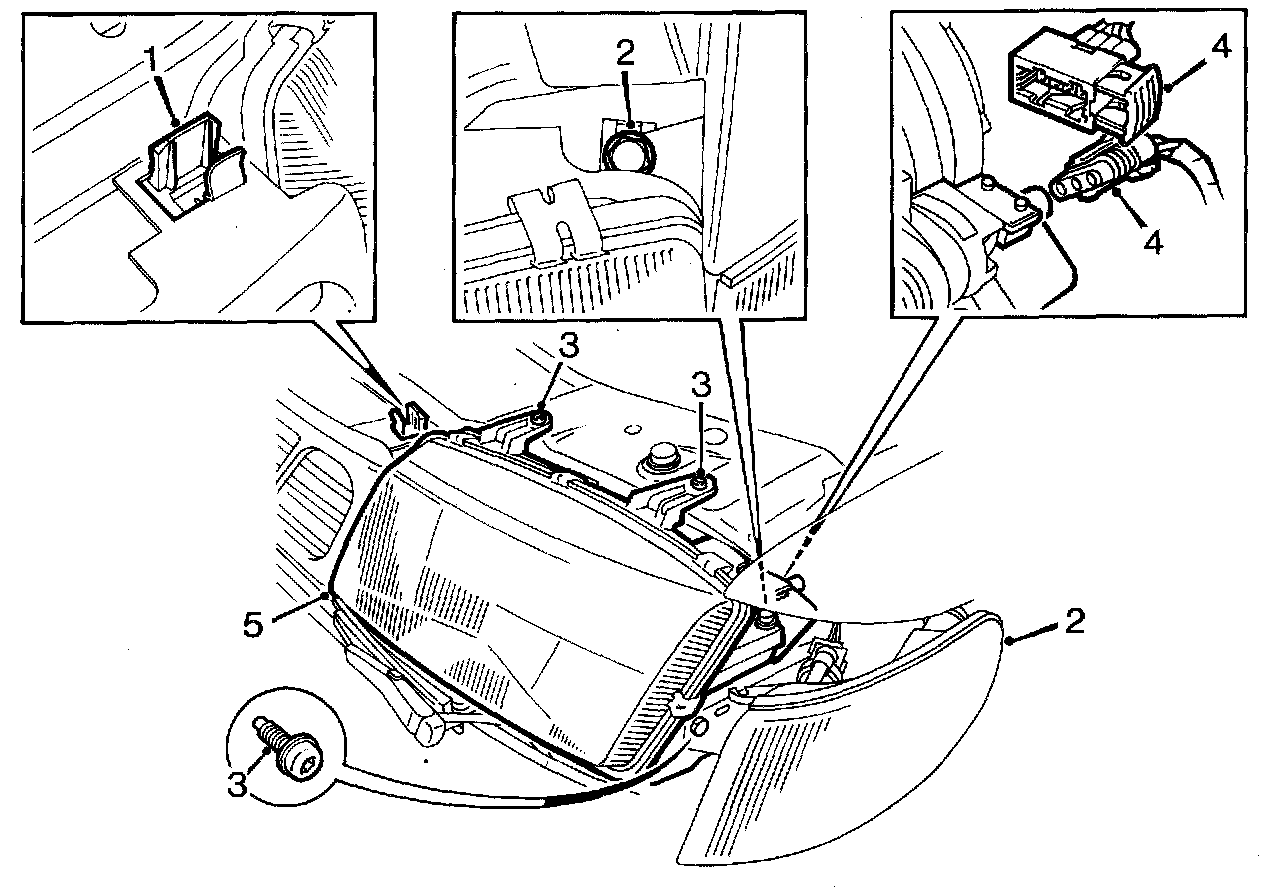

Replacement of Headlamp

1 Remove the grille.
2 Remove the light cluster retaining bolt and lift out the light cluster.
3 Remove the three bolts securing the headlamp unit.
4 Lift out the headlamp slightly to facilitate unplugging the lamp connectors.
5 Remove the headlamp.
Install in reverse order.
