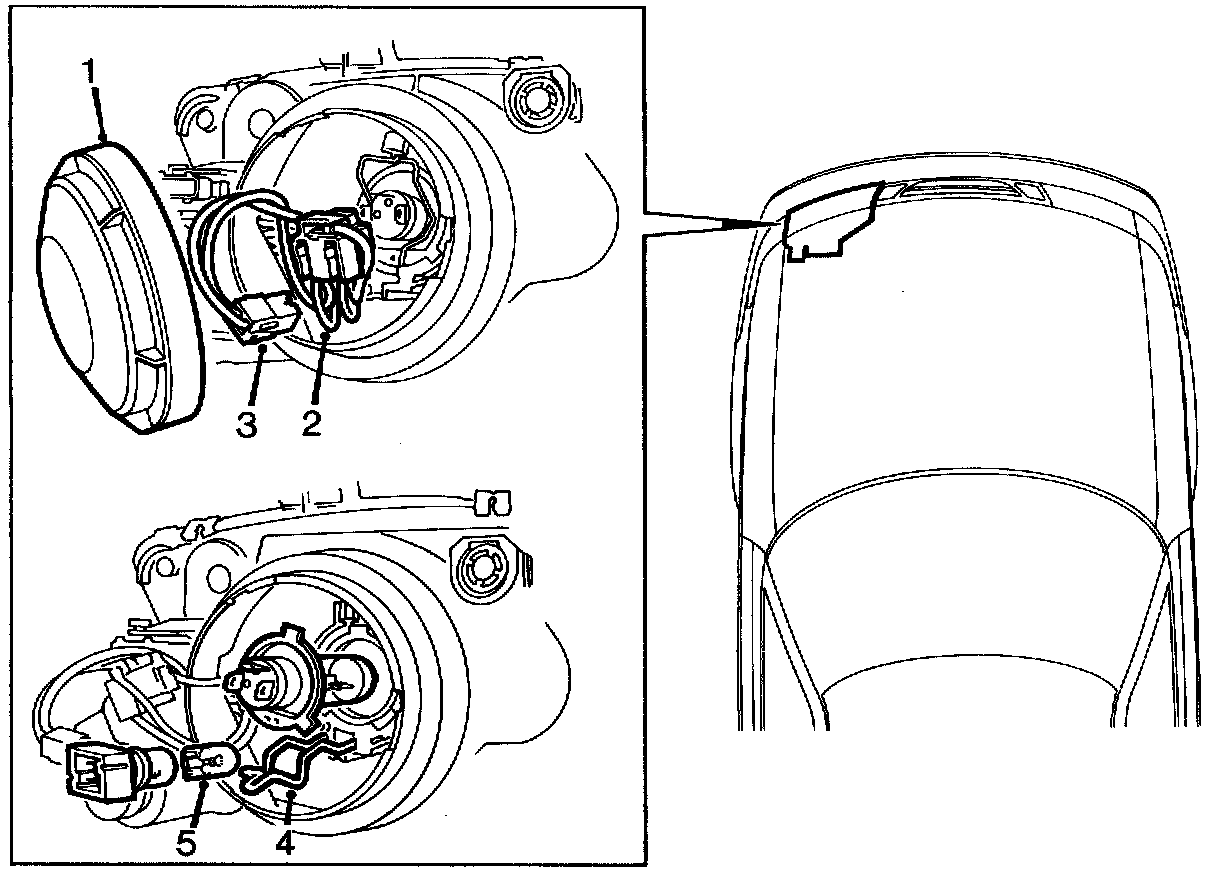

Replacement of Bulb In Headlamp






1 Remove the protective cover at the rear of the headlamp.
2 Unplug the connector for the halogen bulb.
3 Unplug the connector for the parking light bulb
4 Unhook the clip securing the halogen bulb and change the bulb.
5 To remove the parking light bulb, turn the holder through 90 ° and change the bulb.
