Headlamps

Headlamps: Component Location:

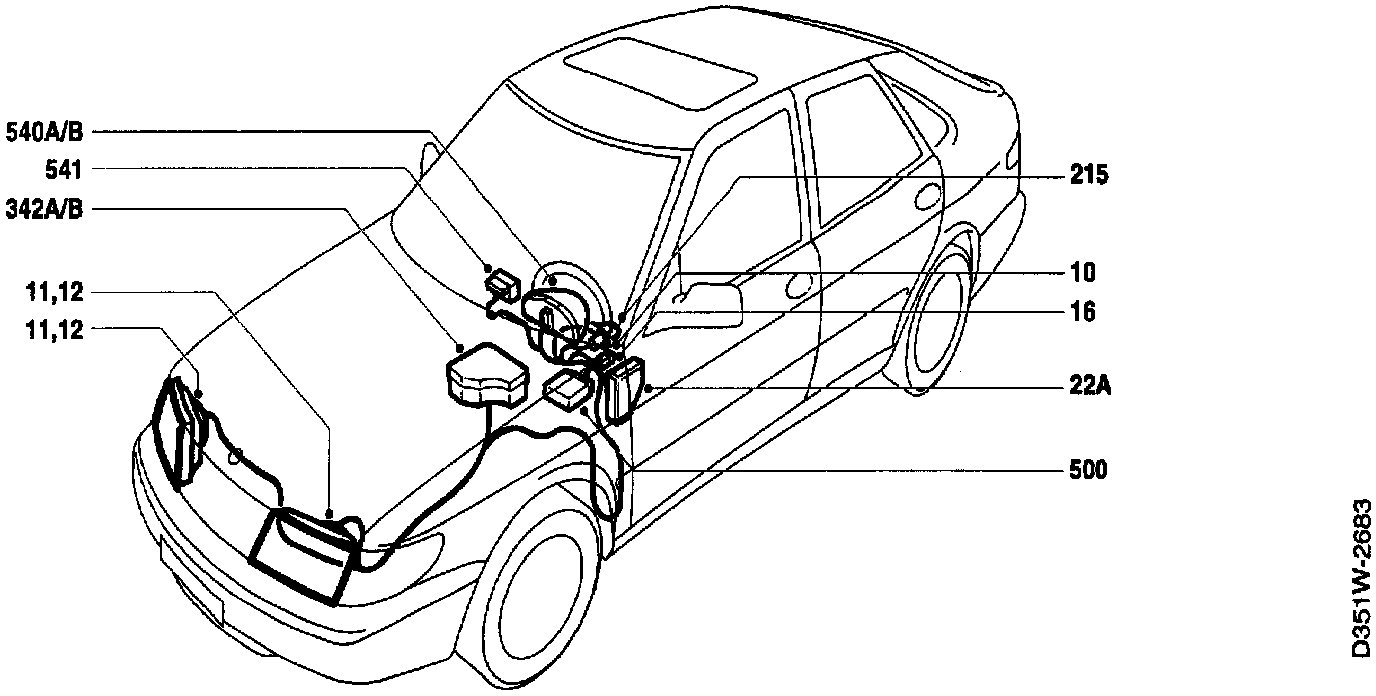

COMPONENT LOCATION VIEW

Headlamps: Component ID:

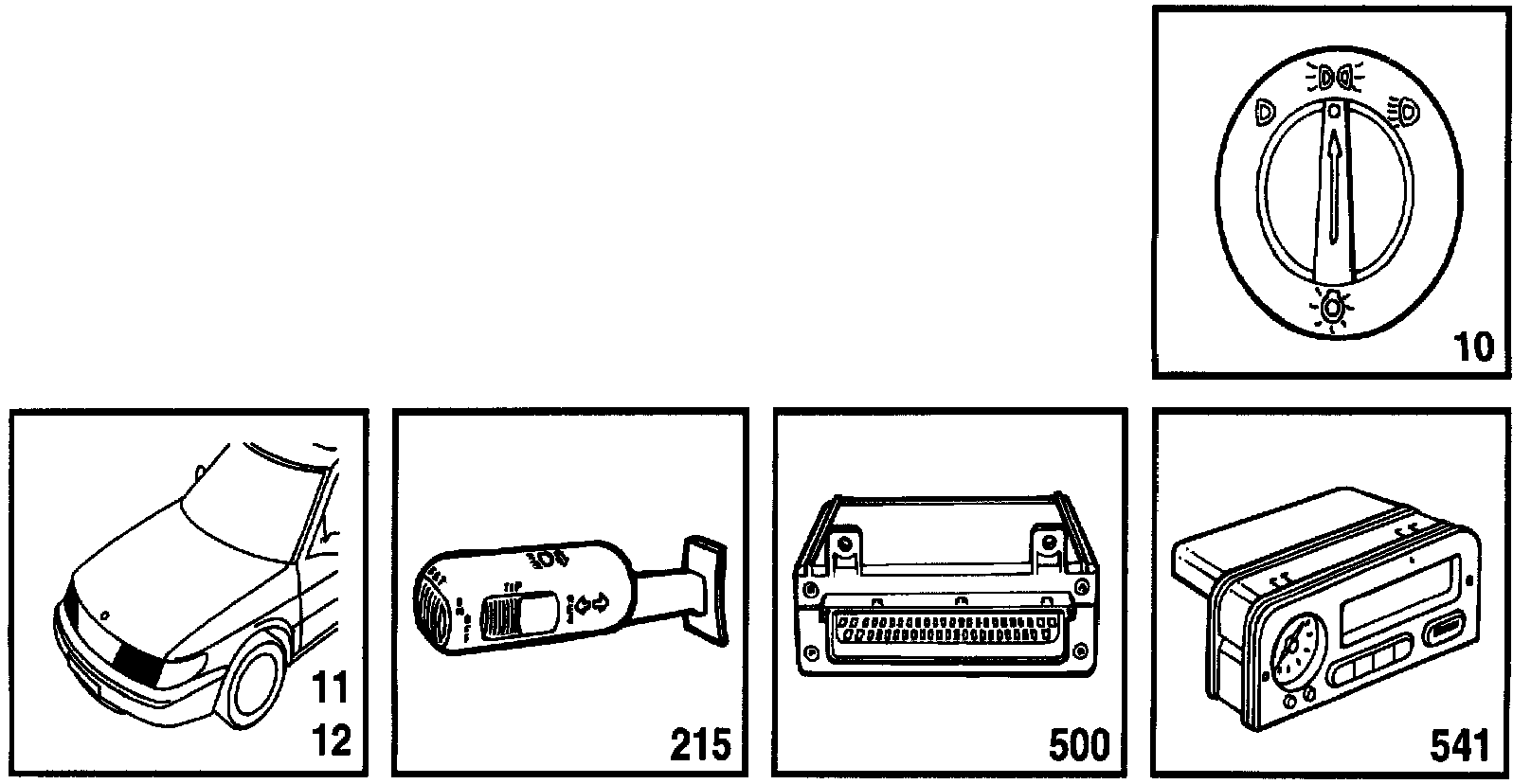

COMPONENT ID
8 Main beam relay on main relay board in the engine bay.
8A Dipswitch relay on main relay board in the engine bay
10 Lights switch on dashboard between steering wheel and driver's door.
11 Main beam in LH and RH headlamps.
12 Dipped beam in LH and RH headlamps.
22A Main fuse board in the dashboard.
47G Main beam indicator lamp in the main instrument display panel.
47V Lights on indicator lamp in the main instrument display panel.
215 Dipswitch on the left of the steering column.
228B Filament monitor, headlamps, on main relay board in the engine bay.
342A Main fuse board in the engine bay.
500 ICE control module
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard
521 "DEFECTIVE LAMP" indicator lamp in main instrument display panel 1.
540 Main instrument display panel on the dashboard.
541 SID unit on the dashboard.
544 "INFO DISPL" indicator lamp in main instrument display panel 2.

10-Pin Connector
H10-2 On the bracket below the left-hand A pillar.

33-Pin Connector
H33-2 Black connector on bracket below the left-hand A pillar.

Grounding Points
G30 Grounding point, left-hand structural member behind the battery.
G31 Grounding point, right-hand structural member, in the engine bay on the right-hand side.
G33S Grounding point, connector bracket (Signal) below the left-hand A pillar.
