Fog/Driving Lamp: Service and Repair

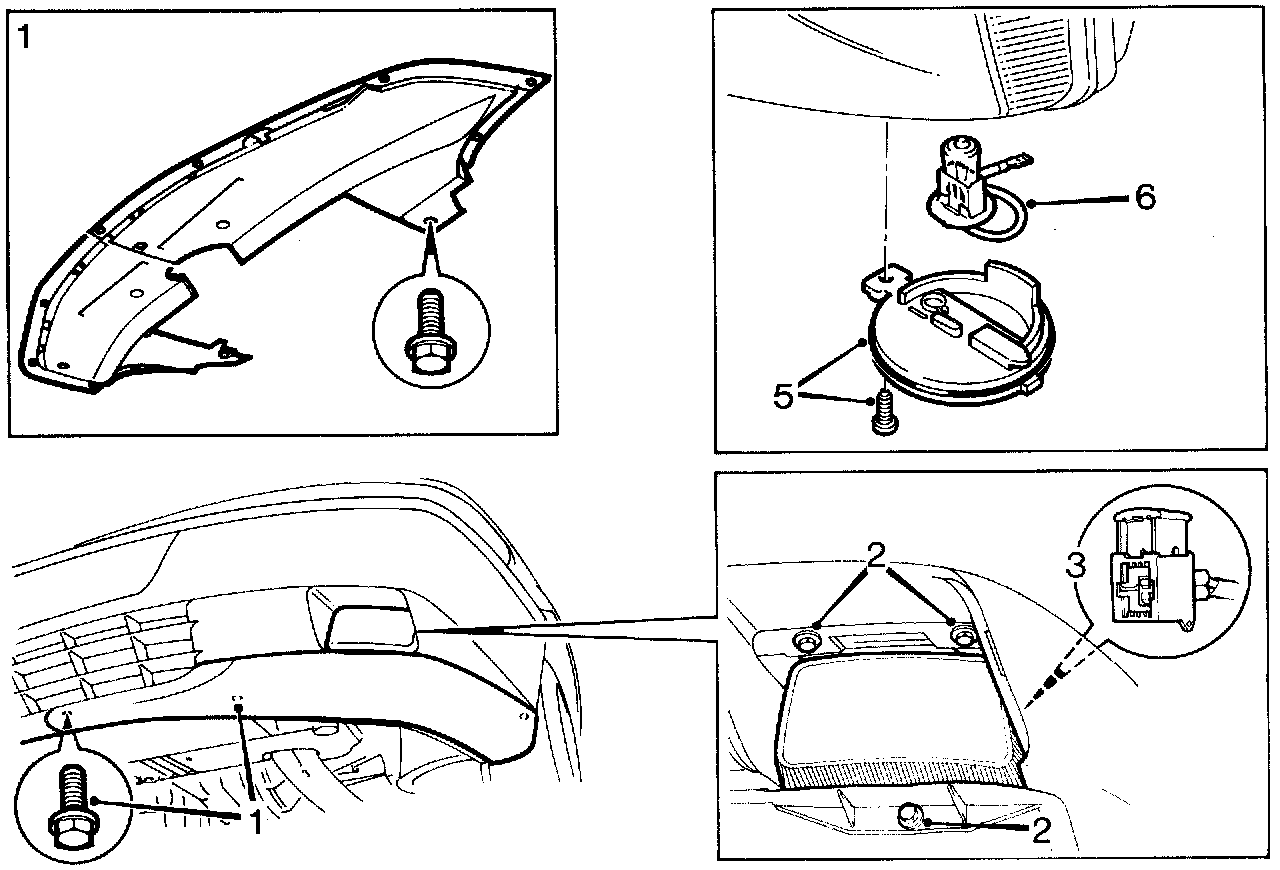

1 Remove the air deflector and the lower part of the front spoiler.
2 Remove the three bolts securing the tog light.
3 Lift out the fog light and unplug the connector.
Install in reverse order.

Changing the bulb
4 See point 1 above.
5 Remove the black screw securing the fog light's protective cover.
6 Undo the two clips securing the fog light and re move same.
7 Unplug the connector and change the bulb.
Install in reverse order
