Fog/Driving Lamp Indicator: Description and Operation

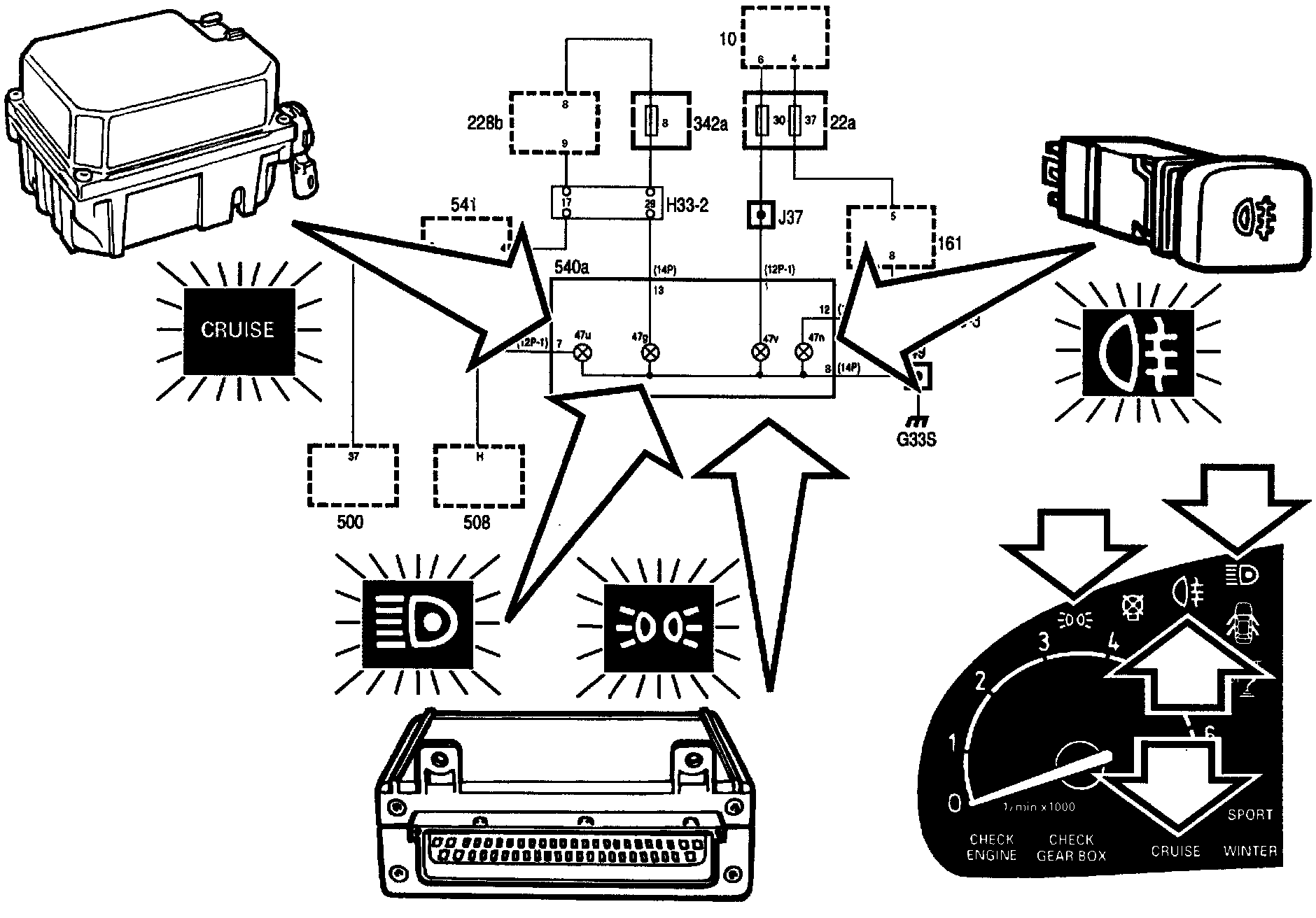

The indicator lamp for the rear fog light is situated in the left-hand part of the main instrument display panel and tells the driver that the rear fog light is switched on.

The indicator lamp is supplied with current via pin 12 (14p) and connected to ground in the main instrument display panel.
