Fog/Driving Lamp: Adjustments

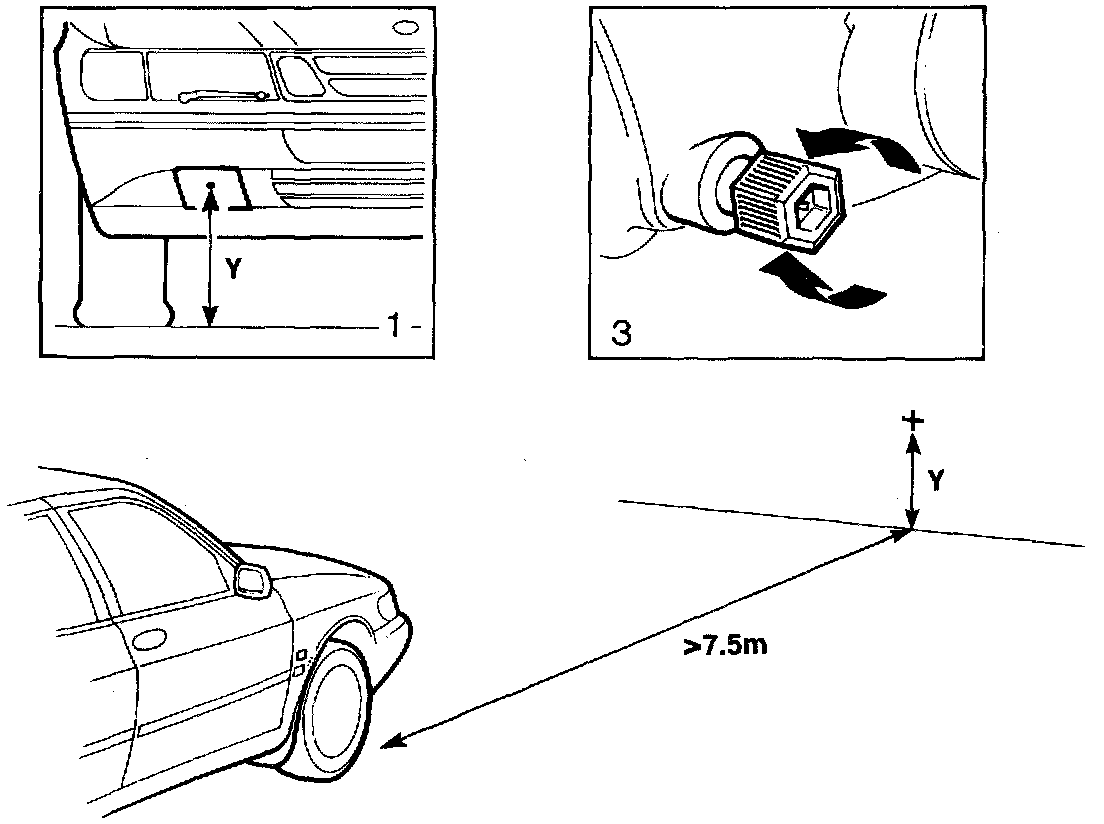

1 Measure the distance between the center of the lens and the floor.
Mark the wall (at 90° to the lens) with a cross at the same height.

2 Switch on the fog lights.
3 Turn the adjusting screw until the light is:
- (for the US market) about 1.3 % of the distance between the car and the wall (e.g. 13 cm below the cross if the distance between car and wall is 10 meters)
- (for other markets) about 1 - 2 % of the distance between the car and the wall (e.g. 10 - 20 cm below the cross if the distance between car and wall is 10 meters)
angled downwards below the horizontal line of the cross.
