Center Mounted Brake Lamp: Service and Repair

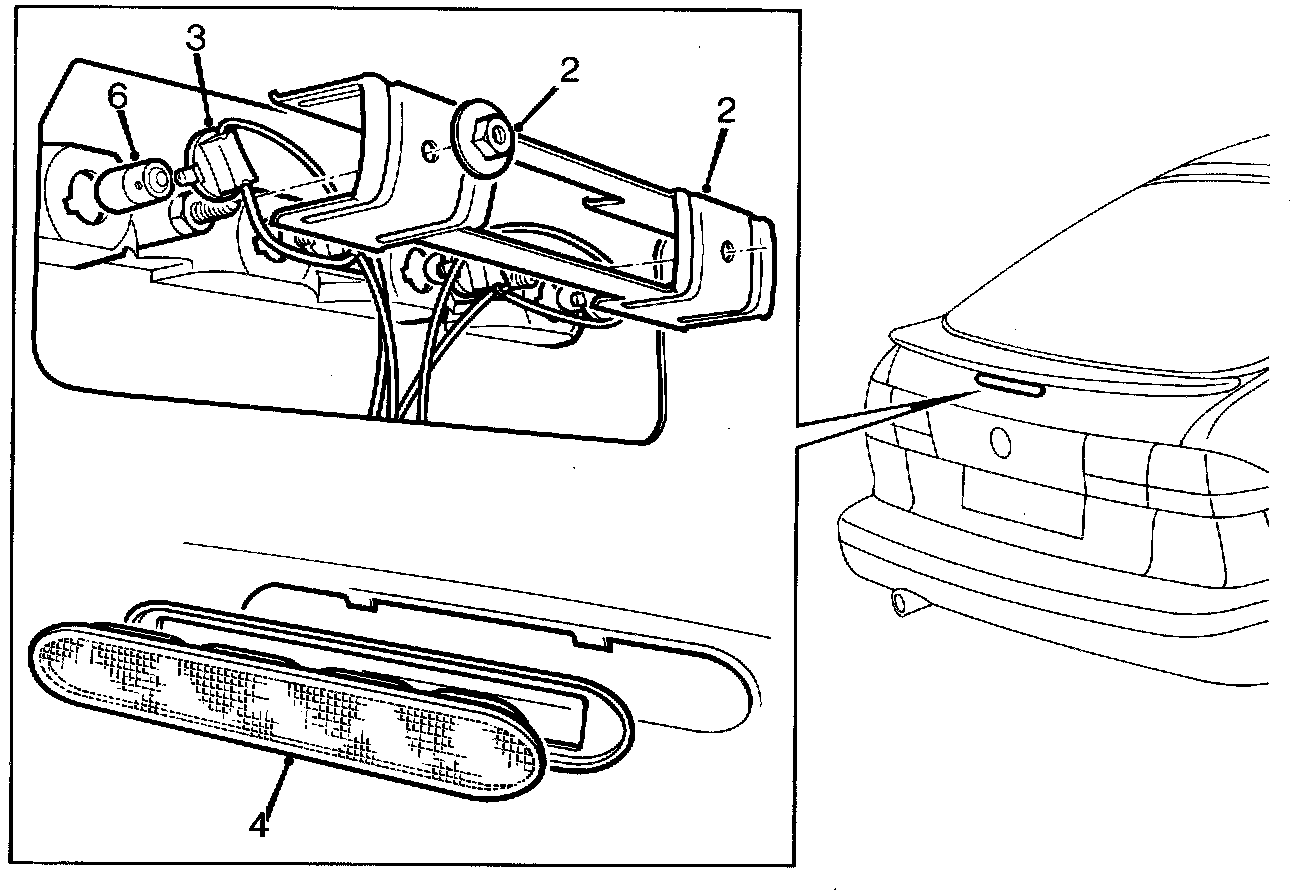

1 Remove the tailgate trim.
2 Undo the two nuts.
3 Unplug the connectors.
4 Press out the lamp unit.
Install in reverse order.

Replacement of bulbs
5 Remove the tailgate trim.
6 Turn the four bulb holders 90° and remove them.
7 Change the bulbs and install in reverse order
