Without Side Reversing Lights

p��WReversing Lights:

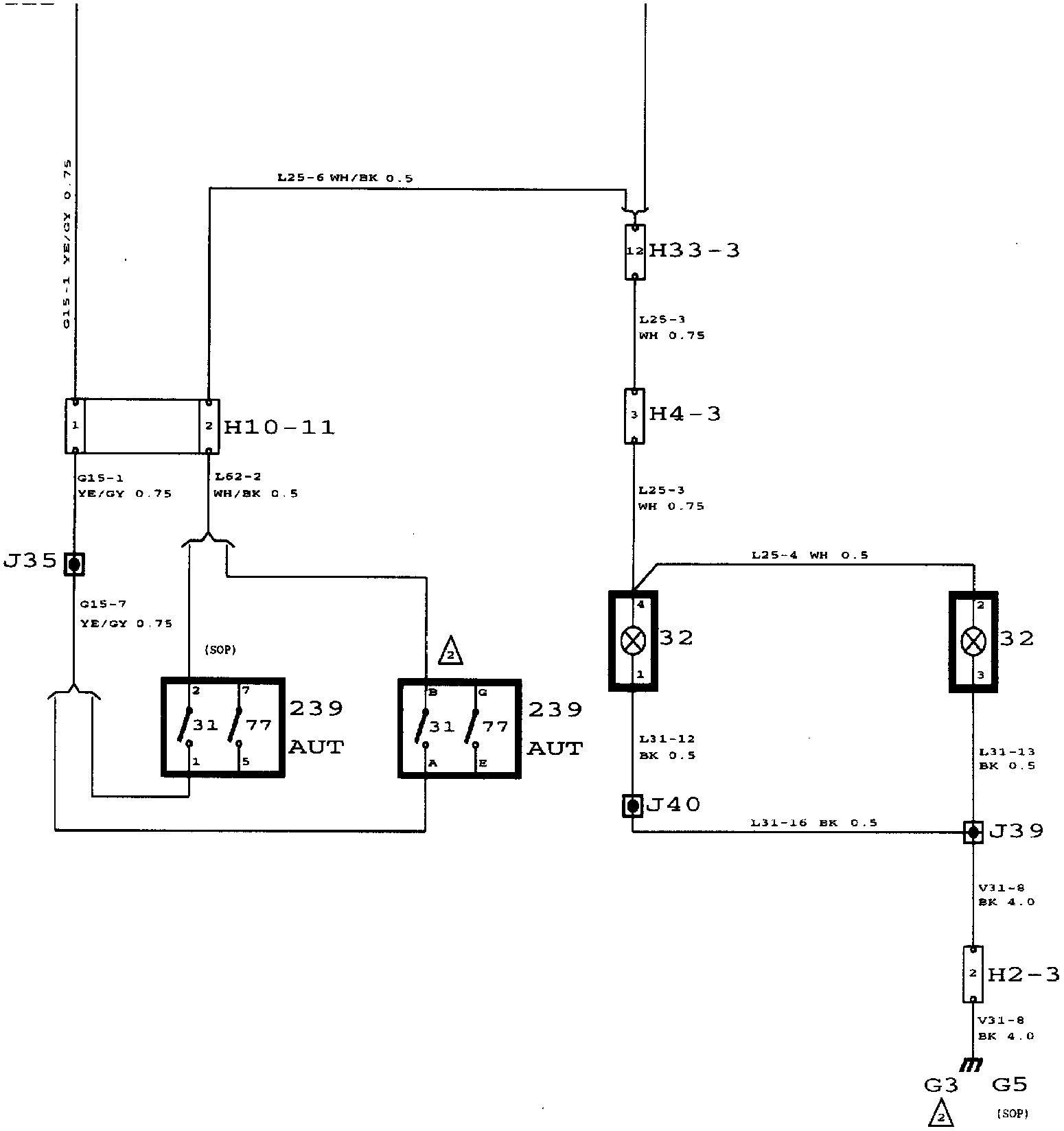

WIRING DIAGRAM

Reversing Lights With/without Side Reveresing Lights: Component Location:

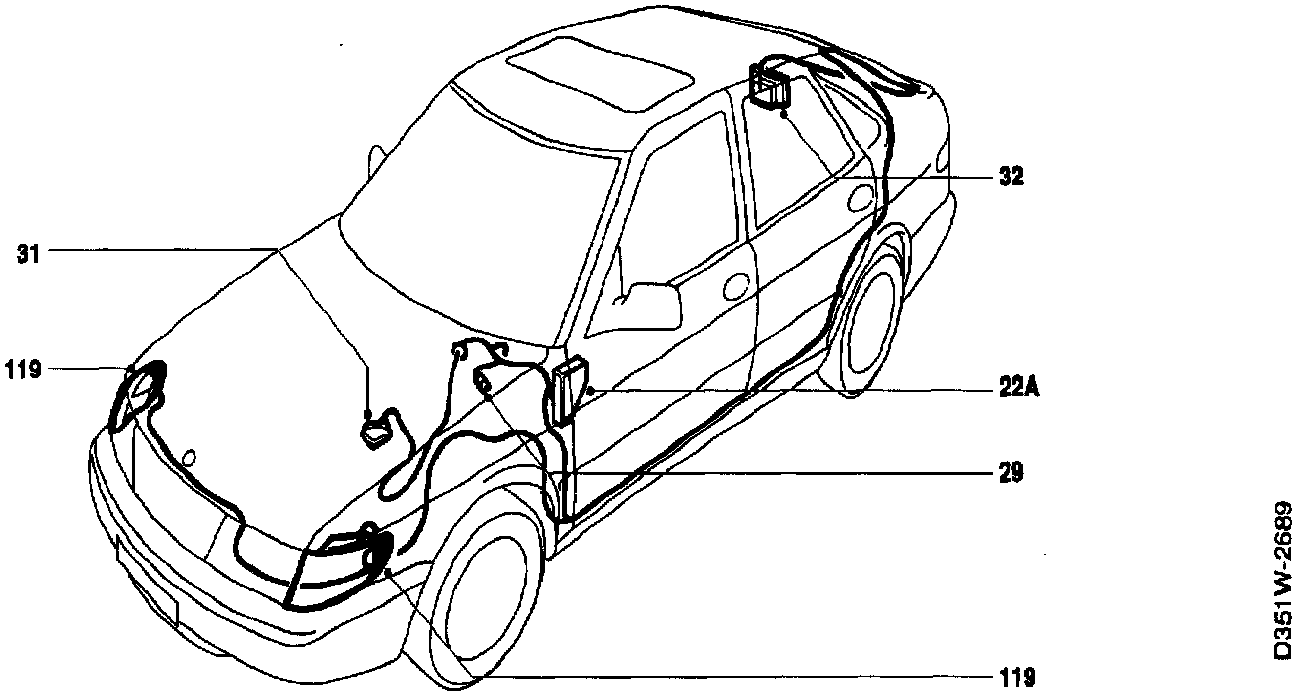

COMPONENT LOCATION VIEW

Reversing Lights With/without Side Reveresing Lights: Component ID:

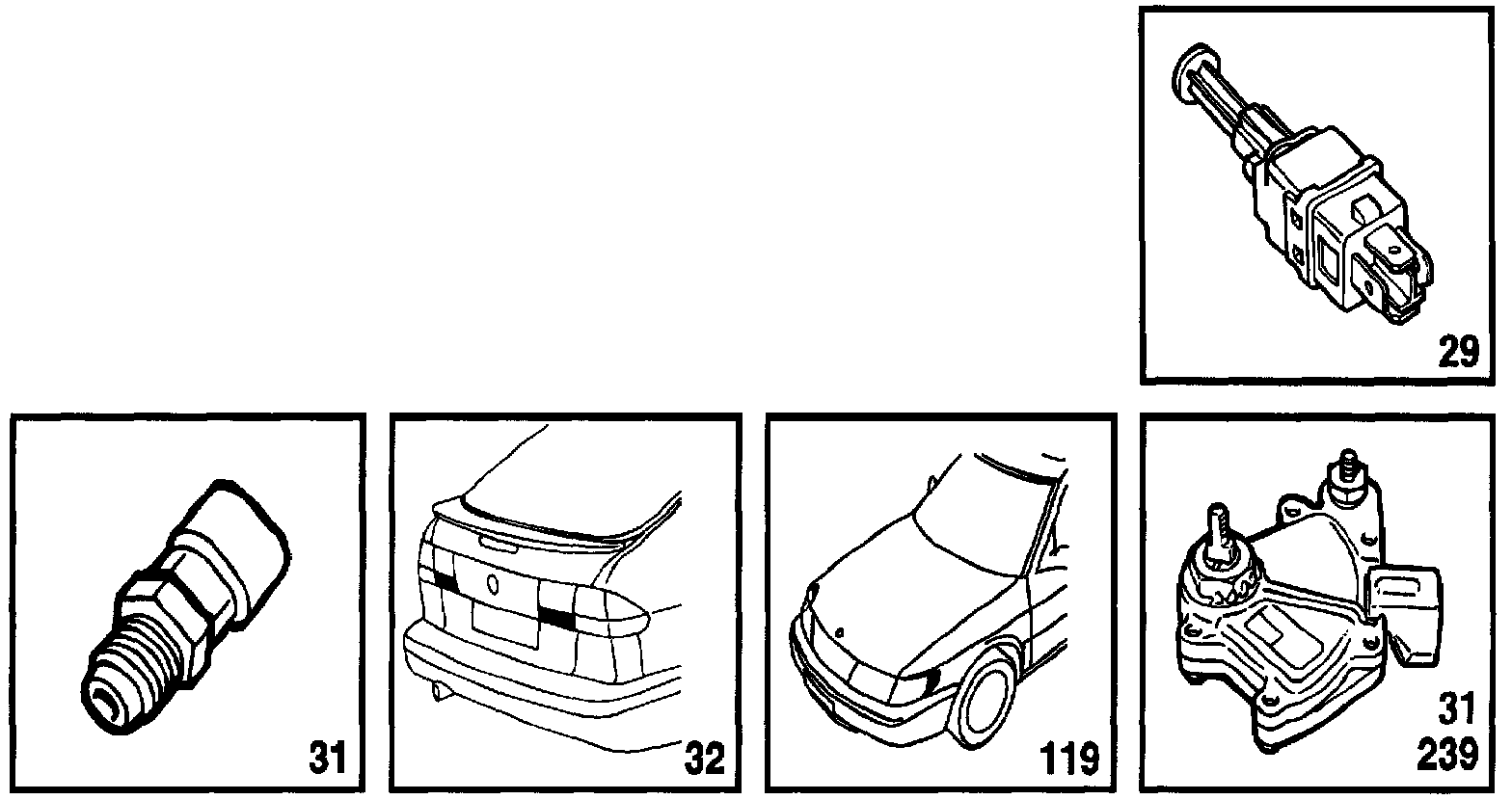

COMPONENT ID
22A Main fuse board in the dashboard.
29 Brake light switch on the pedal assembly.
31 Reversing lights switch on the gearbox below the battery.
32 Reversing lights in the rear light cluster on the tailgate.
119 Side reversing lights in the front light clusters.
239 Selector lever position sensor on the automatic transmission in the engine bay.
405 Relay for reversing lights on main relay board in dashboard.

2-Pin Connector
H2-3 In the luggage compartment behind the left-hand wheel housing.

4-Pin Connector
H4-3 In the luggage compartment behind the left-hand wheel housing.

10-Pin Connector
H10-1 Black connector on bracket behind the battery.

33-Pin Connectors
H33-2 Blue connector on the bracket below the left-hand A pillar.
H33-3 Grey connector on the bracket below the left-hand A pillar.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G5 Grounding point under rear seat on the left.
G30 Grounding point, left-hand structural member behind the battery.
G31 Grounding point, right-hand structural member, behind the RH headlamp.
G33S Grounding point, connector bracket (Signal) below the left-hand A pillar

DESCRIPTION OF OPERATION
Manual Gearbox
Current is supplied from fuse 31 to reversing light switch 31. The switch closes when reverse gear is selected, lighting the lamps.

Automatic Transmission
Current is supplied from fuse 9 to reversing light switch 31 located on selector lever position sensor 239. The contacts in the switch close when reverse gear is selected, lighting the lamps.

Side Reversing Lights
Cars for certain markets incorporate side reversing lights 119 in the front light clusters. These lights are then supplied with current via relay 405. The relay coil is supplied with current via the reversing-lights switch.

FAULT DIAGNOSIS HINTS
The reversing lights are switched on when reverse gear is engaged and the ignition switch is in the Drive position.
1. Check that fuses 9 and 31 are intact and supplied with current.
2. Check that current is present on the connections of the reversing lights switch.
3. Check that the bulbs are intact and supplied with current.
4. Check the connectors, wiring harness and ground connections.
