Lighting and Horns: Application and ID

Rating (w) Base Item
Headlamps 60/55 H4 base 1
Headlamps, US 67/60 HB2 2
Fog Lights 55 H3 3
Reverseing lights 21 BA 15s 4
Rear fog lights
Front direction indicators 21 BAU 15s 5
Rear direction indicators
Brake lights 21/5 BAY 15d 6
Rear lights
Front direction indicators/side marker 32/3CP BAY 15d
lights/rear direction indicator, US (SAE 1157NA) 7
Side reversing lights/brake lights/rear
lights, US
Rear lights 5 BA 15s 8

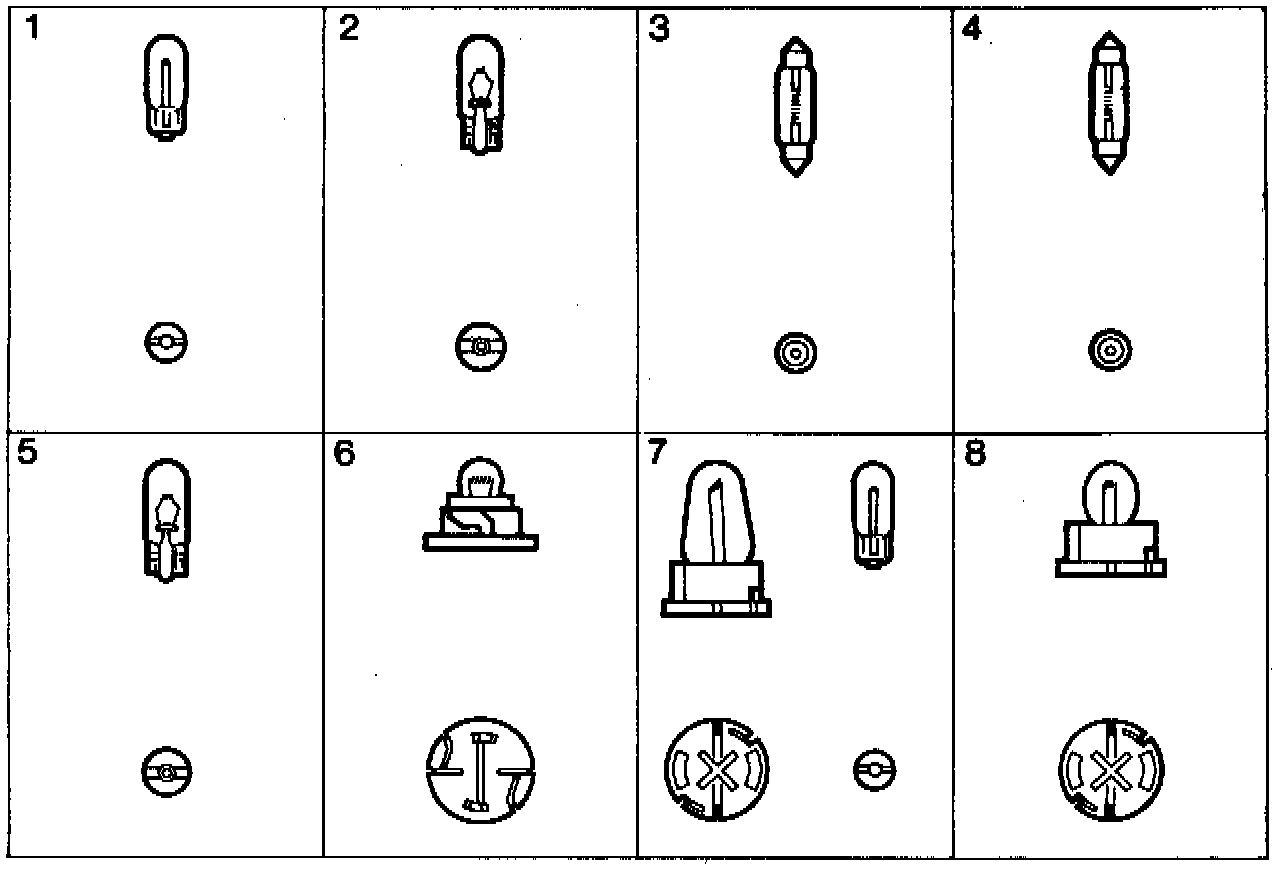

Rating (w) Base Item

Illumination of switches and ashtray 1.2 W2X4.6d 1
Seat-belt warning lamp
Ignition switch illumination
Warning and indicator lamps 1.2 Lamp with bulb holder 2
Number pate lighting, glove compartment lamp 5 SV 8.5-8 3
Roof lamp, luggage compartment lighting 10 SV 8.5-8 4
Warning and indicator lamps 1.4 Lamp with bulb holder 5
Charging warning lamp 2.0 Lamp with bulb holder 6
Illumination for heating and ventilation controls 2 W2X4.6d 7
ACC W2.1 X 9.5d
Parking lights/side direction indicator 5 W2.4 X 9.5d 8
