Home >> Saab >> 1994 >> 900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Testing Readings, Control Module Connections >> Test Readings, Pins 35 - 47

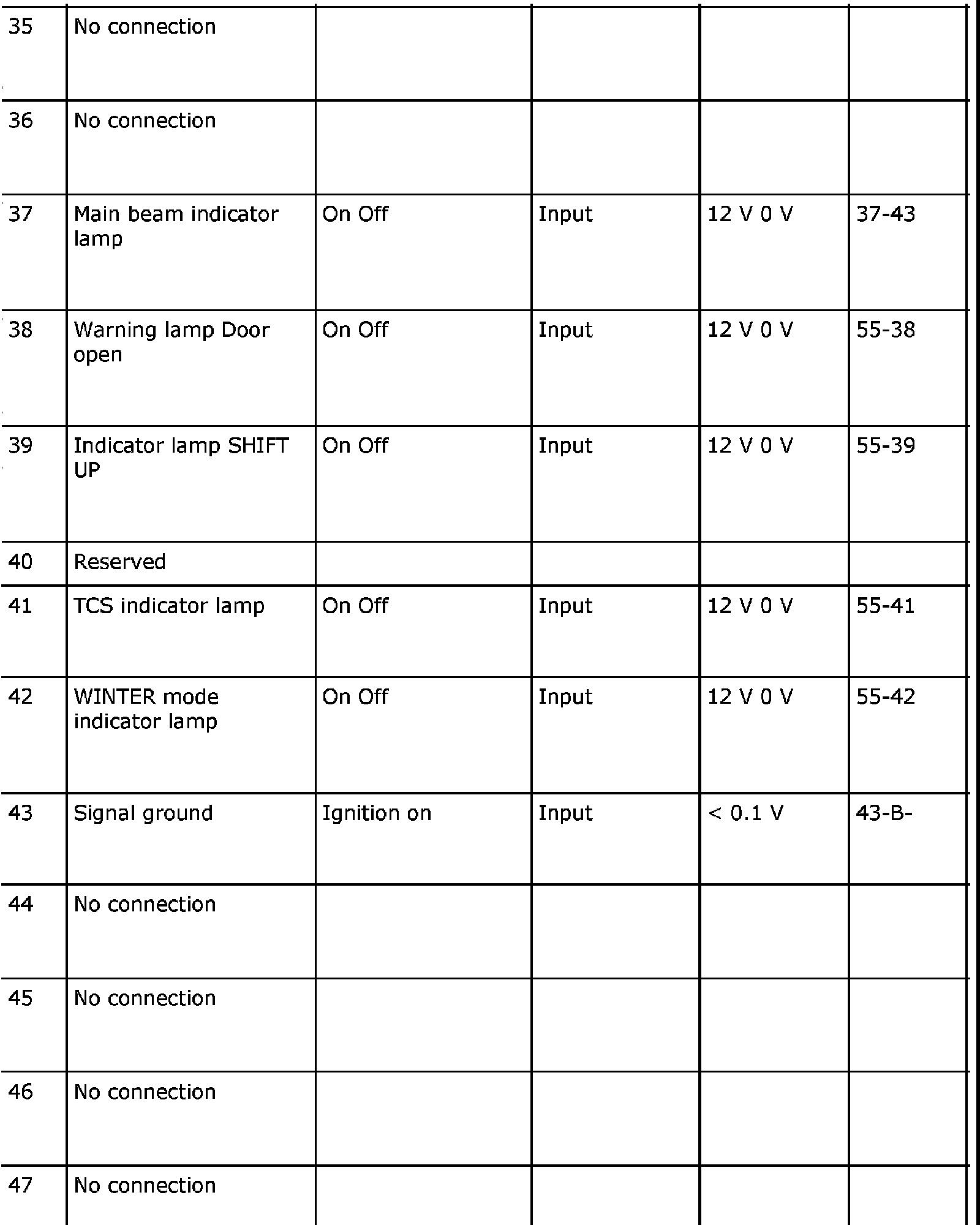

Test Readings, Pins 35 - 47
