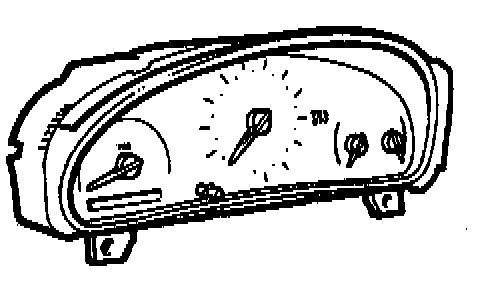

Connector Locations





Number of pins 56
Power supply (+30 circuit) Pin No.55
Power supply (+15 circuit) Pin No.56
Signal ground Pin No.43
