Fuel Gauge

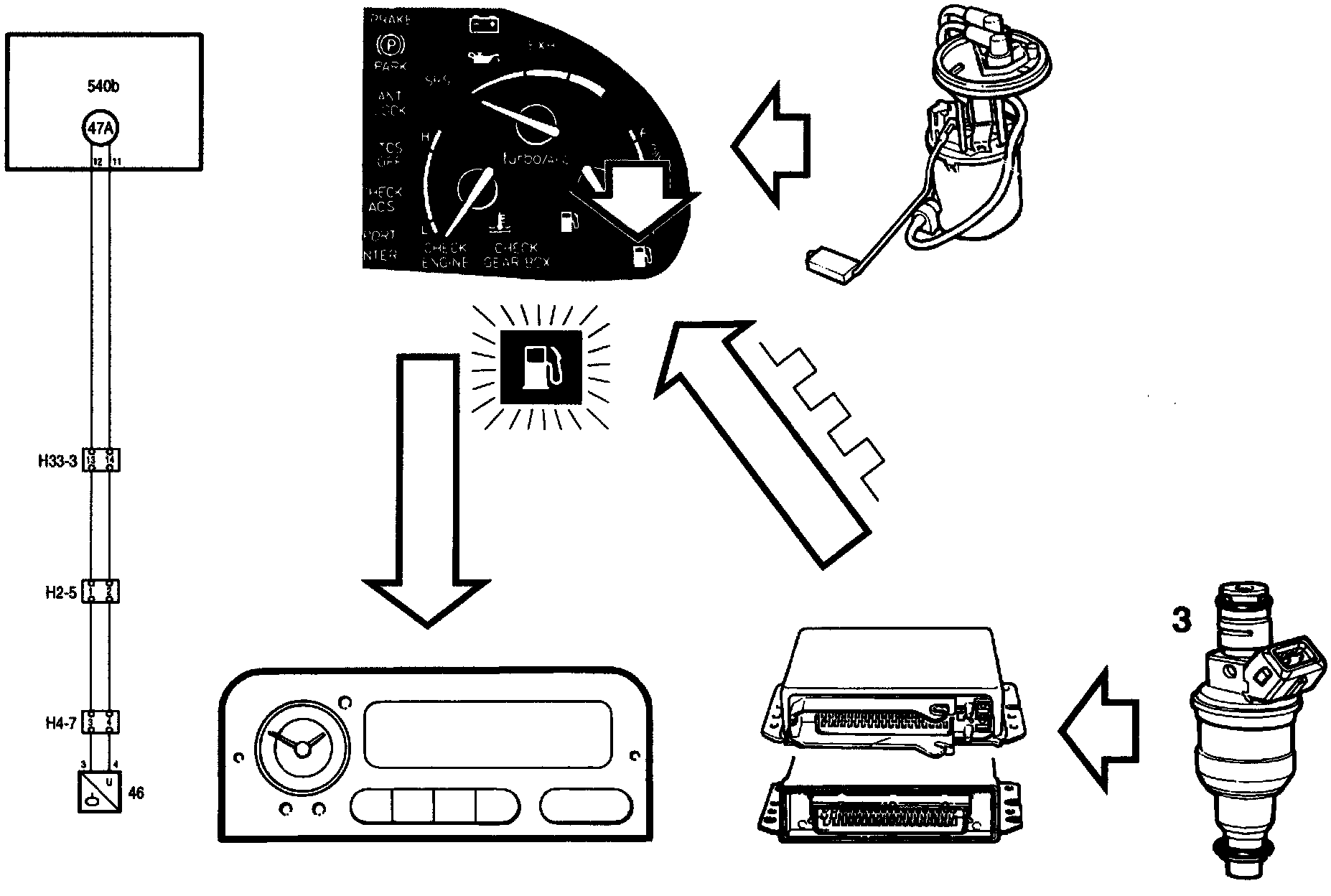

When the ignition switch is turned to the Drive position, positive voltage is supplied from fuse 17 to pin 55 of the main instrument display panel for further distribution to:
- The fuel level gauge
- The low fuel warning lamp
This tells the driver how much fuel is left in the tank. The level sensor in the fuel tank has a variable resistor whose resistance corresponds to the level sensed by the sensor's float in the tank.

The sensor is connected to pin 11 of the main instrument display panel's control module which reads the resistance of the sensor and controls the voltage supplied to the fuel gauge so that its needle corresponds to this resistance.

When the fuel remaining in the tank is down to about 8 litres, the low fuel warning lamp is connected to ground via pin 12 of the main instrument display panel.

The information is also made available to other systems via pins 3 and 4.

On cars with OBDII, pin 32 connects the input of the respective engine control module to ground.
