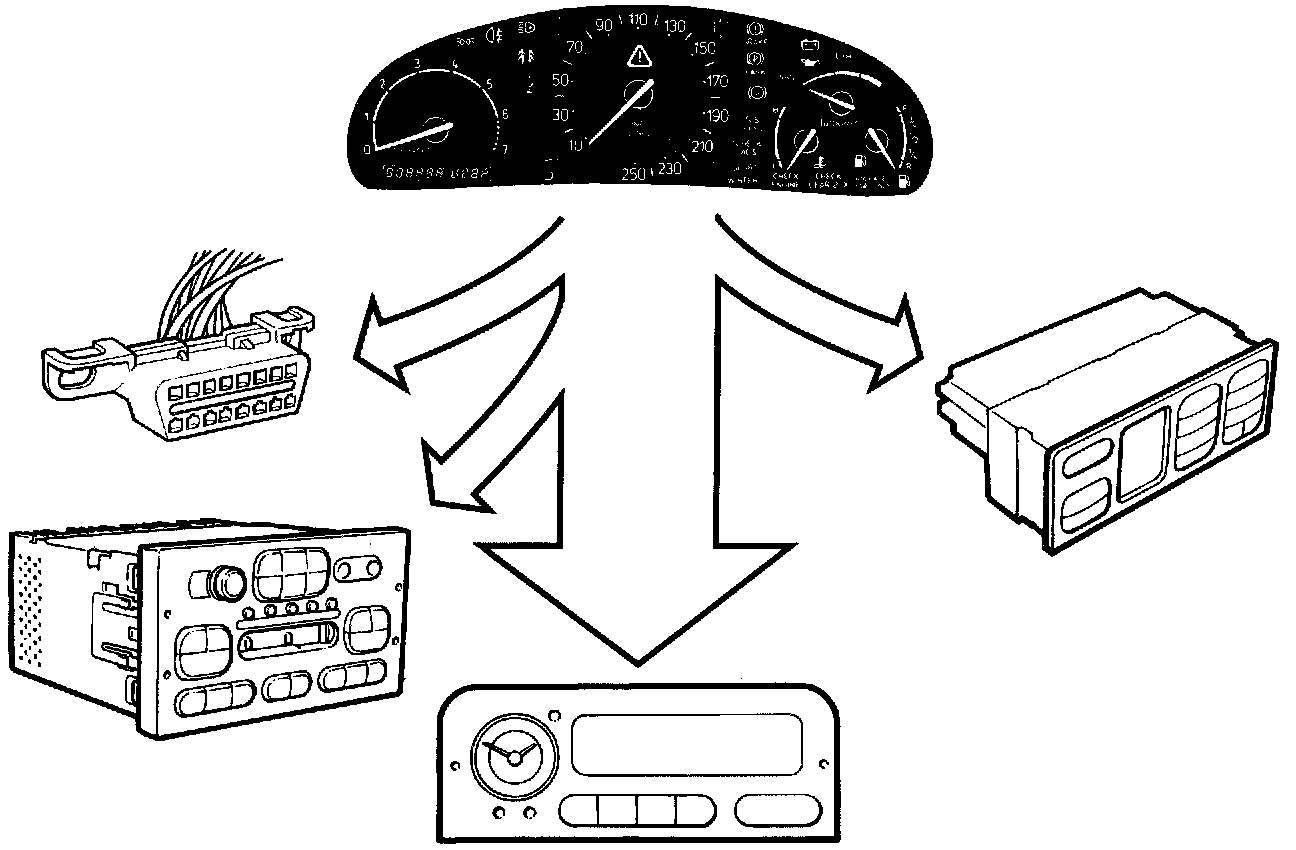

Control Module (Process Card) Outputs

- Output signals (pins 3 and 4):
- Speed (to Saab Information Display (SID) unit and audio).
- Engine coolant temperature (to ACC)
- Fuel level (to SID unit).
- Fuel consumption (to SID unit).
- Inspection of fan belt (CHECK function) (to SID unit).
- Acoustic signal central warning lamp (request to SID unit).
- Odometer reading (to SID unit for service indication)
- Diagnosis
- Pin 32
- Low fuel level (OBDII)
