Test Data and Connections

NOTE:
^ Unless otherwise specified, the ignition should be switched ON. All data are approximate.

^ For signal information on specific pin number, refer to the Description and Operation of that component.

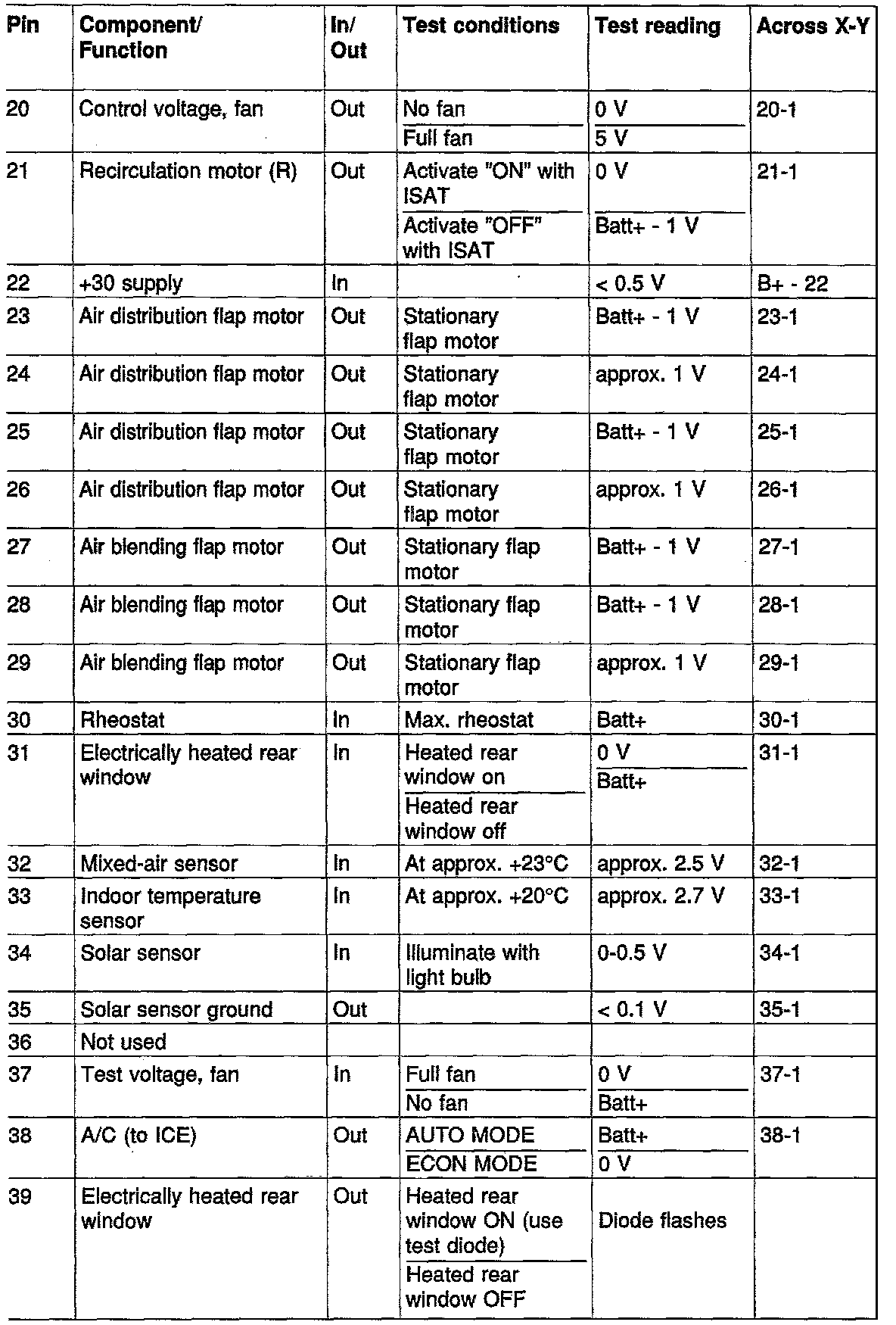

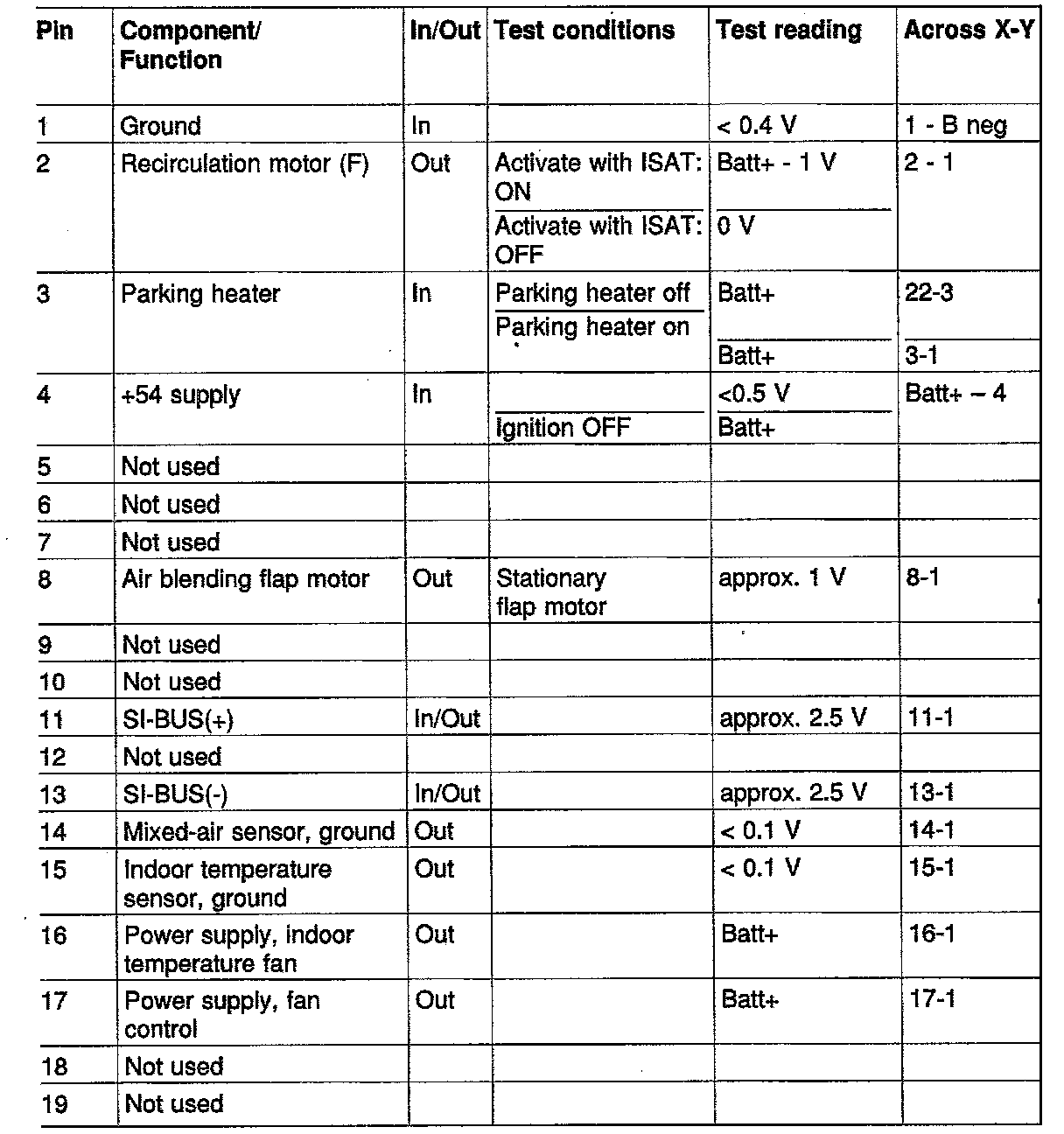

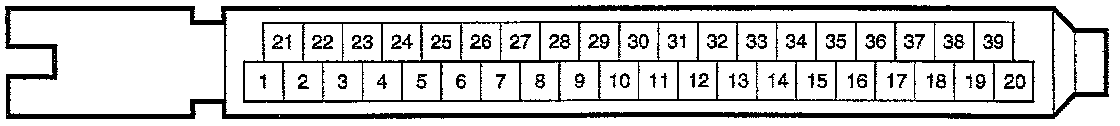

Test Data, Control Module Connections
