FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
1994
>>
900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Sensors and Switches - HVAC
>>
Solar Sensor
>>
Service and Repair
>>

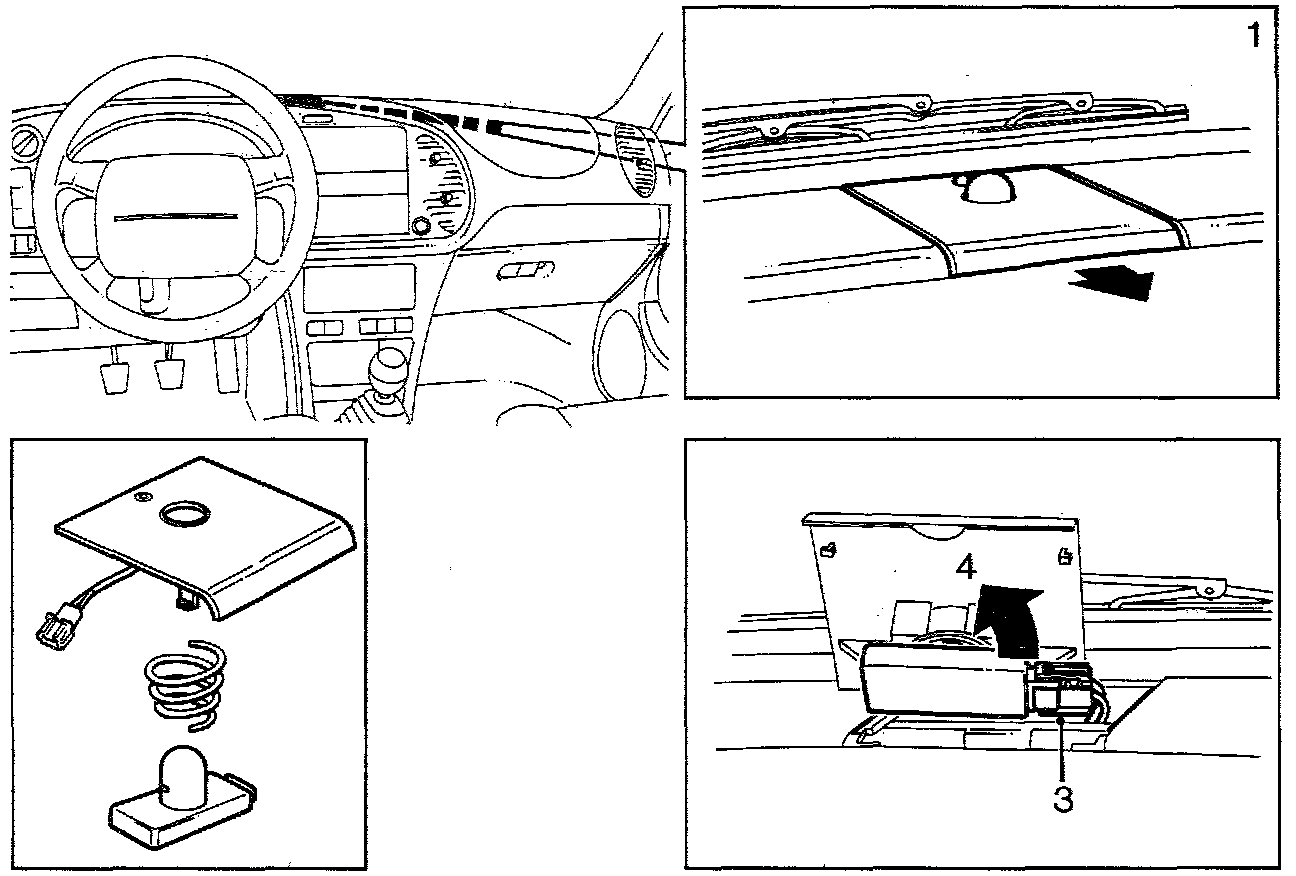

Solar Sensor, Removal
Solar Sensor, Removal
1.
Slide the
solar sensor
's cover rearwards.
2.
Work the cover on the top of the dashboard loose.
3.
Unplug the
solar sensor
connector.
4.
Remove the
solar sensor
by pressing it against the cover while turning it anticlockwise.
