Control Module Outputs

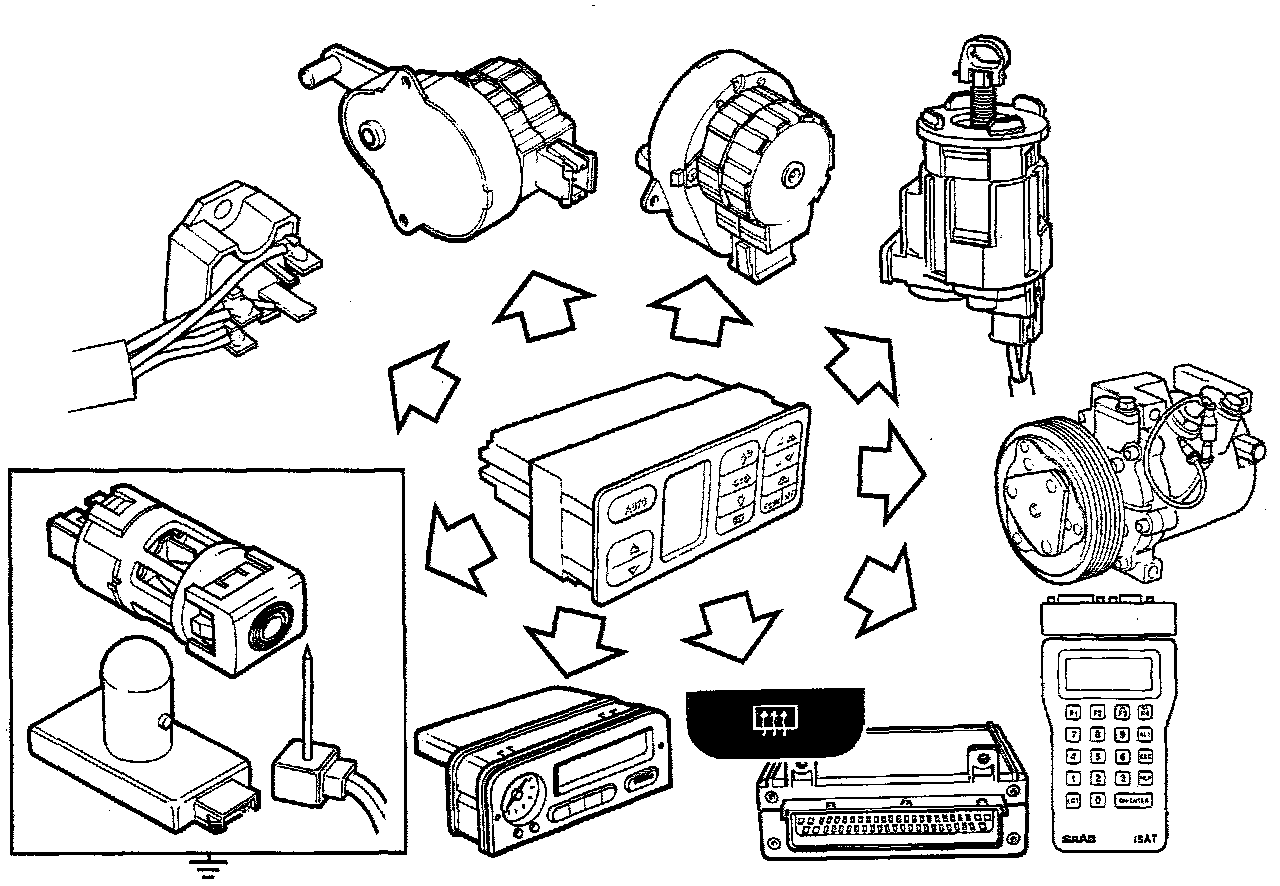

ACC Control Module Outputs
1. Cabin temperature sensor, ground (pin 15).
2. Cabin temperature sensor, suction-fan motor (+) (pin 16).
3. Blended-air temperature sensor, ground (pin 14).
4. Solar sensor, ground (pin 35).
5. Fan control voltage (pin 20).
6. Fan control power supply (pin 17).
7. Blended-air damper, stepping motor winding 1 (+) (pin 27).
8. Blended-air damper, stepping motor winding 1 (-) (pin 8).
9. Blended-air damper, stepping motor winding 2 (+) (pin 28).
10. Blended-air damper, stepping motor winding 2 (-) (pin 29).
11. Air distributor, stepping motor winding 1 (+) (pin 23).
12. Air distributor, stepping motor winding 1 (-) (pin 24).
13. Air distributor, stepping motor winding 2 (+) (pin 25).
14. Air distributor, stepping motor winding 2 (-) (pin 26).
15. Recirculation damper, DC motor (pin 2).
16. Recirculation damper, DC motor (pin 21).
17. A/C compressor (pin 38), request for turn-on of A/C compressor via ICE, anti-frost thermostat, engine management system and pressure monitors.
18. Electrically heated rear window via ICE (pin 39).
19. Communication with SID and ISAT (pins 11 and 13)
- Wake-up signal to SID.
- Diagnostics communication with ISAT.
