Removal

1. Drain the A/C system of refrigerant.
2. Remove the grille.

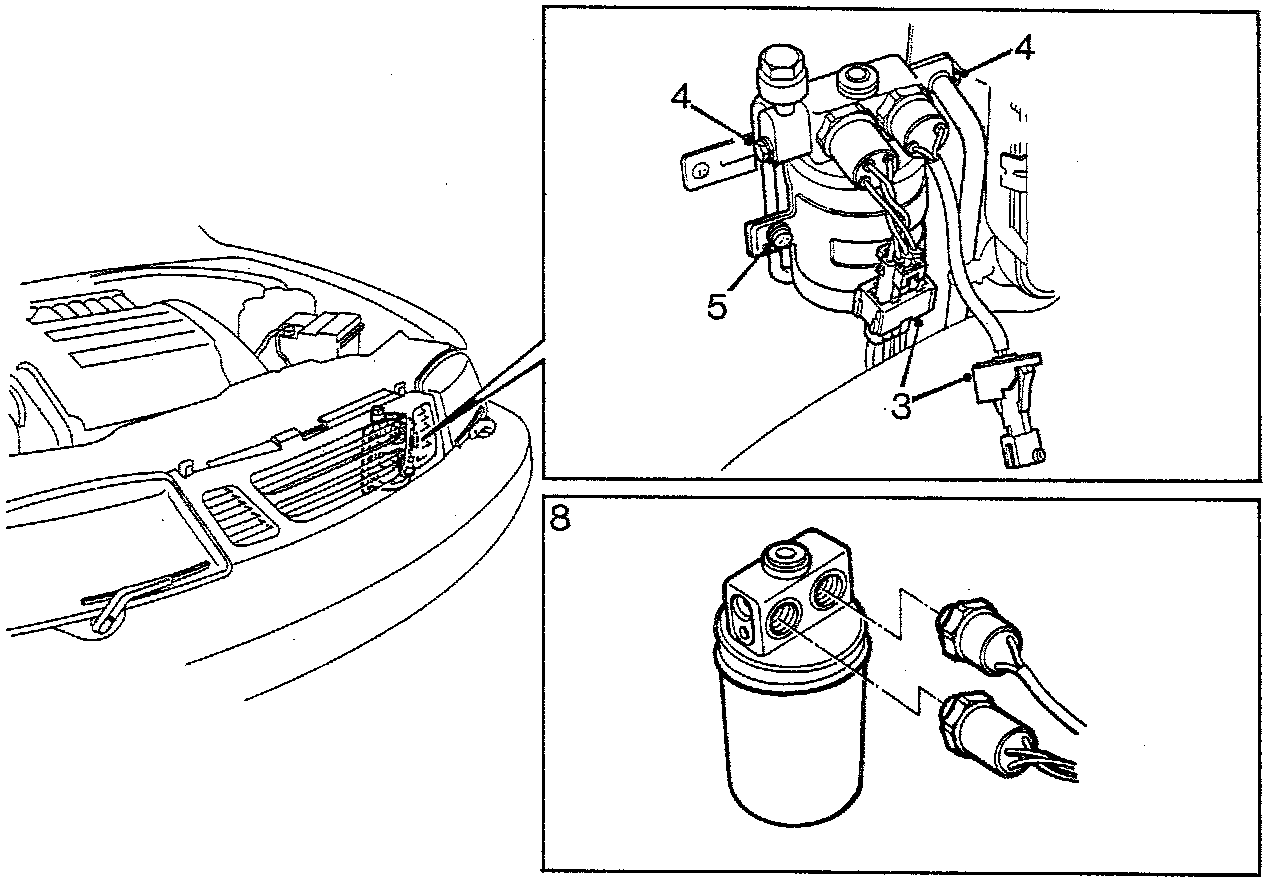

3. Unplug the pressure switch's connector. In hot climate markets the A/C system is equipped with two pressure switches.
4. Remove the bolts securing the pipes to the receiver.
5. Remove the bolt securing the receiver to the holder on the condenser.
6. Lift up the receiver.
7. Plug the openings.
8. Unscrew the pressure switch or switches. It/they should be transferred to the new receiver.
