900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Service and Repair
>>

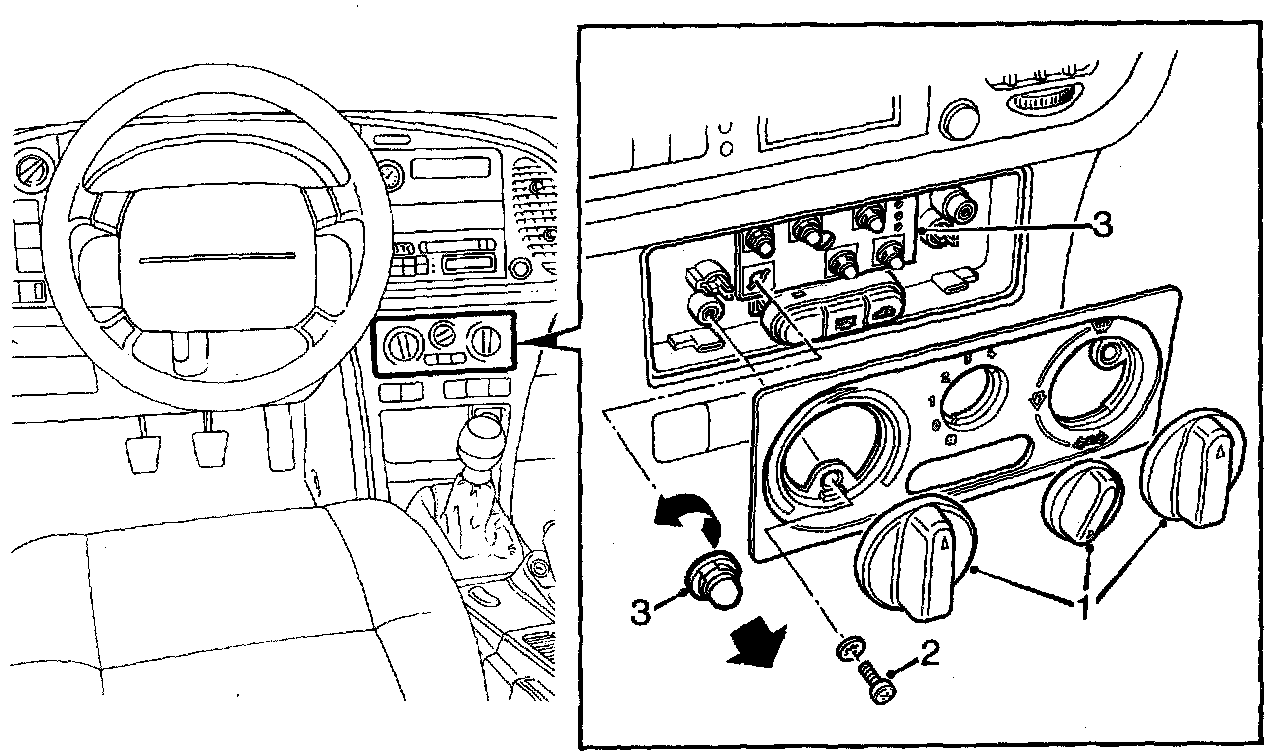

Changing the Bulb In the AC Switch Panel
>>
MCC
MCC
1
Withdraw the control knobs.
2
Undo the two screws and lift away the front plate on the panel.
3
Lift out the lamp board and change the bulb.
