Changing the Bulb In the AC Switch Panel
>>
ACC
ACC
1

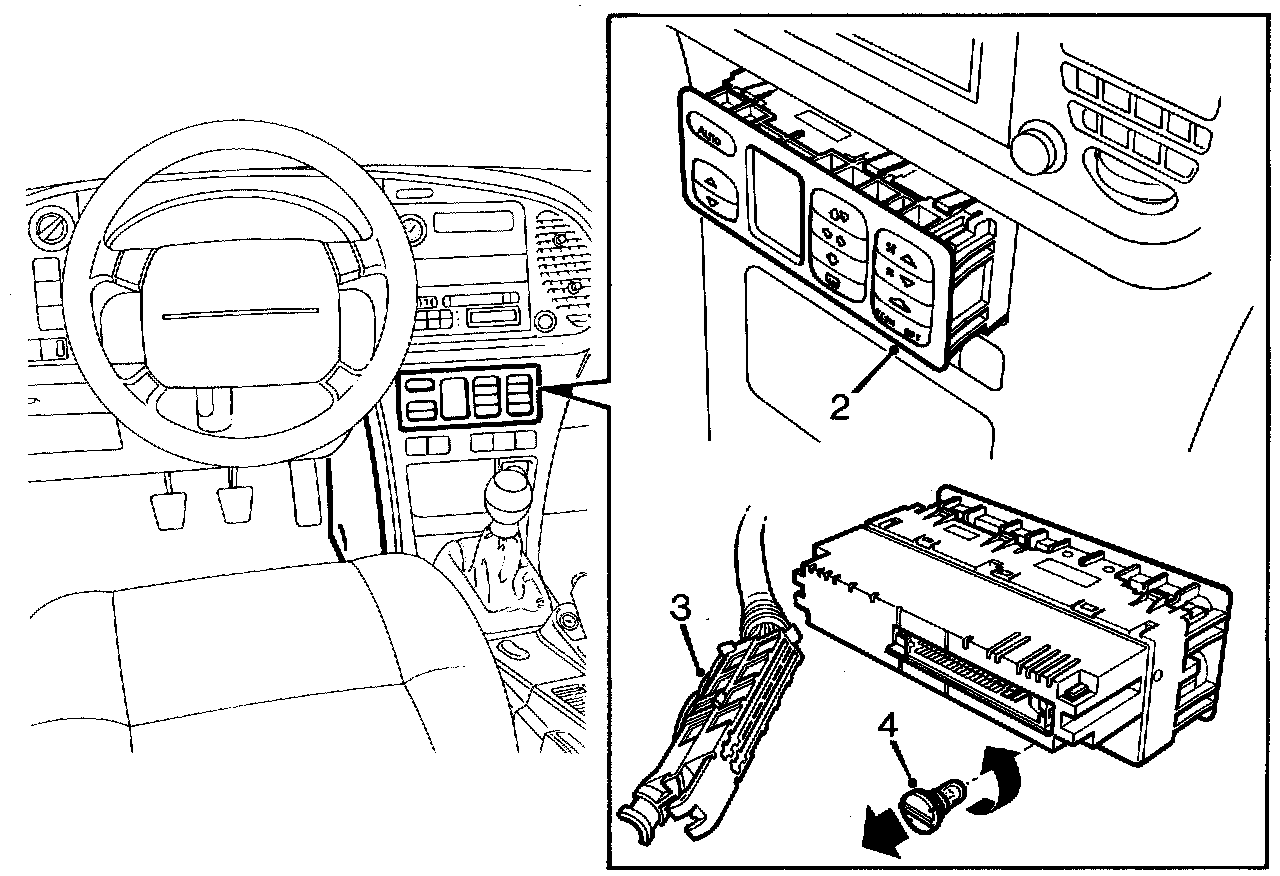

Remove the right-hand part of the covering trim on the center console.
2
Press out the climate control panel from the rear.
3
Unplug the connector.
4
Use a screwdriver when changing the bulb.
