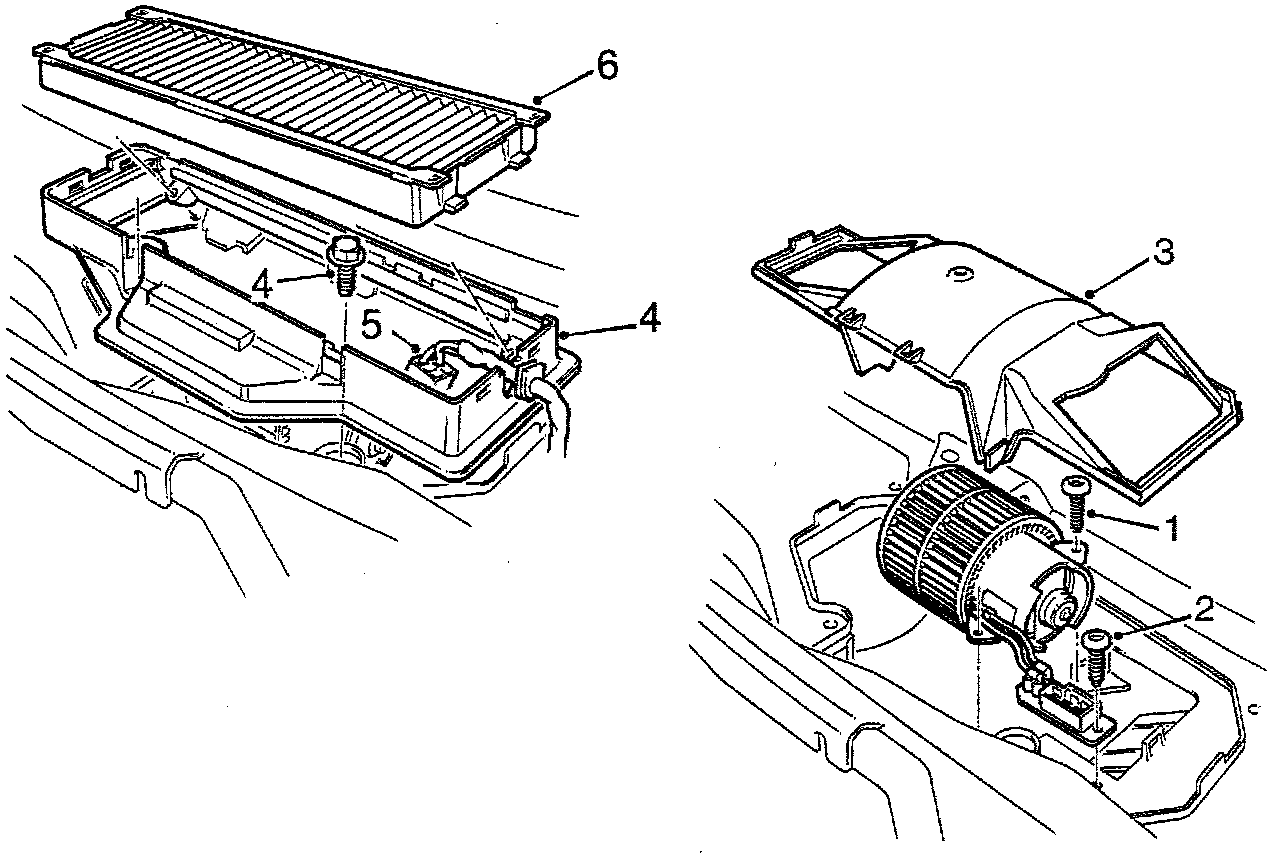

Front Fan Motor Installation

1. Install the fan and tighten the screws.
2. Position the connector and tighten the screw.
3. Refit the cover over the ventilation fan.
4. Refit the fresh-air filter frame.
5. Plug in the ventilation fan connector.
6. Refit the fresh-air filter.
7. Refit the wiper unit.
8. Refit the cover over the bulkhead.
9. Refit the wiper arms.
