Removal
Removal

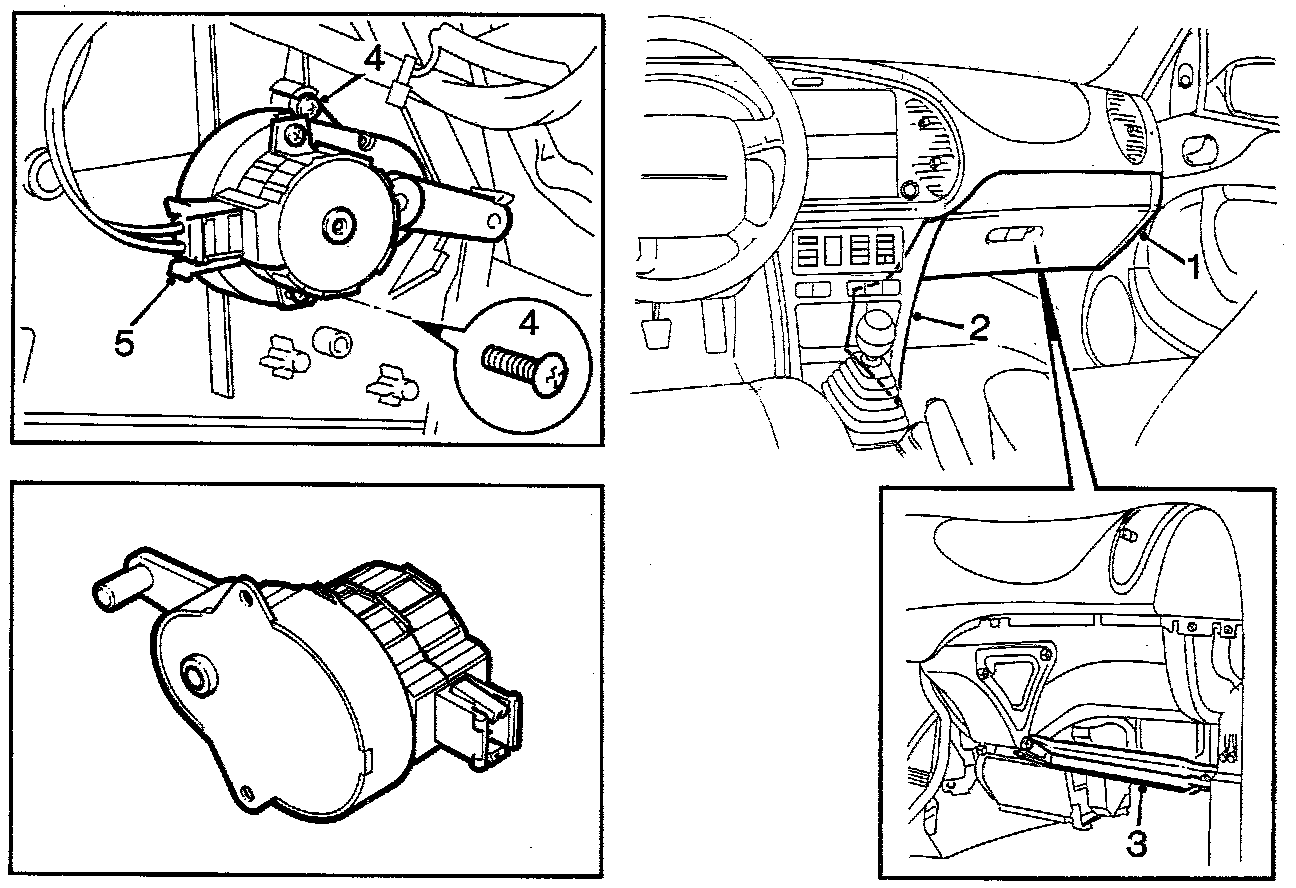

1.
Remove the glove box.
2.
Remove the panel from the side of the centre console.
3.
Remove the
air duct
on the floor.
4.
Remove the two stepping motor retaining screws.
5.
Unplug the connector.
