Intermediate Pipe

REMOVAL
1. Lift up the car and undo the joints on the exhaust pipes.
2. Remove the pipe.

INSTALLATION
1. Clean the joints.

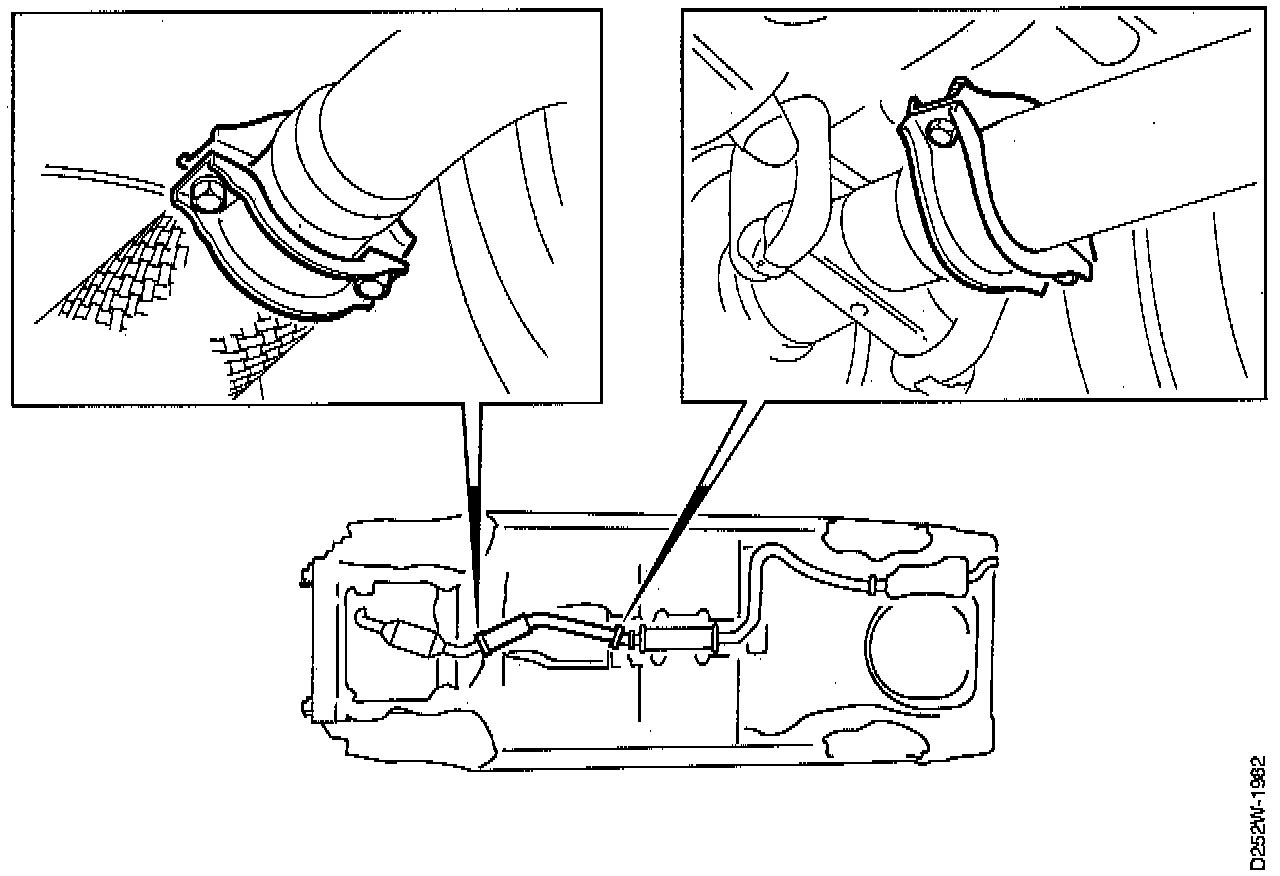

2. Push up the exhaust pipe as shown in the illustration and pull the joints together, then tighten to: 20 Nm (15 ft. lbs.).
- Make sure that the exhaust system is well clear of adjacent parts.
3. Lower the car.
