Timing Component Alignment Marks: Locations

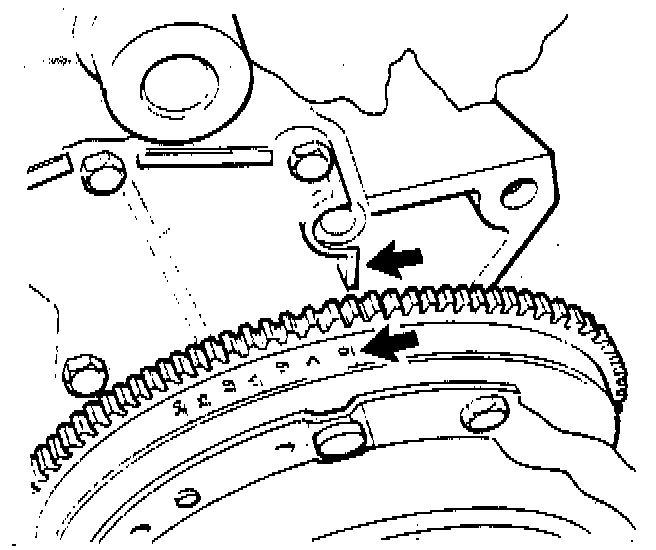

Timing Component Alignment Marks

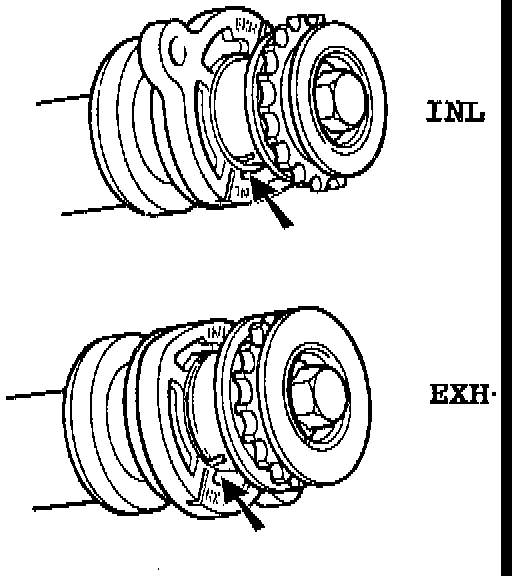

Camshaft Marks:

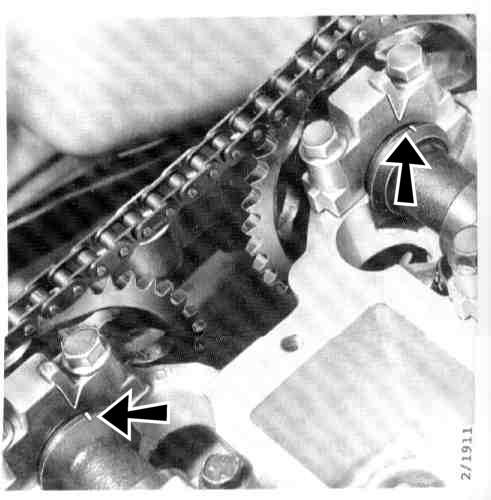

Balance Shaft Marks:

Align the crankshaft, camshafts, and balance shafts with their respective timing marks.

For further information refer to Engine : Service and Repair : Disassembly/Assembly
