Cylinder Head Bolt - Tightening Torque

CATEGORY
Engine

SECTION
2

PAGE
62

ISSUE
02/97-0738

CODE
210

Subject:
Cylinder Head Bolt Tightening Torque

Application: 1994- 900 & 9000 Models with 4-Cylinder Engine





The tightening torques for the cylinder head bolts have been changed to increase the stability of the torque on the cylinder head bolts.

Cars Affected:

1994- 900 & 9000 models with 4-cylinder engines

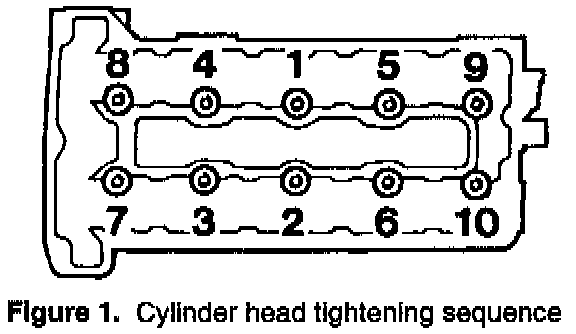

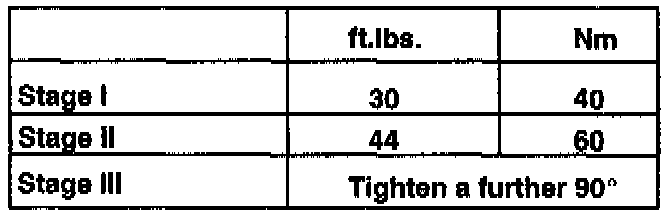

Tightening torques for cylinder head bolts

The new tightening torques can be inserted as appropriate in the following Service Manuals:

^ 900 0:2 Technical Data, M1994-97, page 26

^ 900 2:1 Basic Engine B206/B234/B204 M1994-, pages 022-13, 210-10, 211-4 and 215-4

^ 9000 0 Remaining News M1988-95, page 55

^ 9000 0:2 Technical Data M1985-96, page 022-17 (note that M94- applies to B204/B234 engines)
