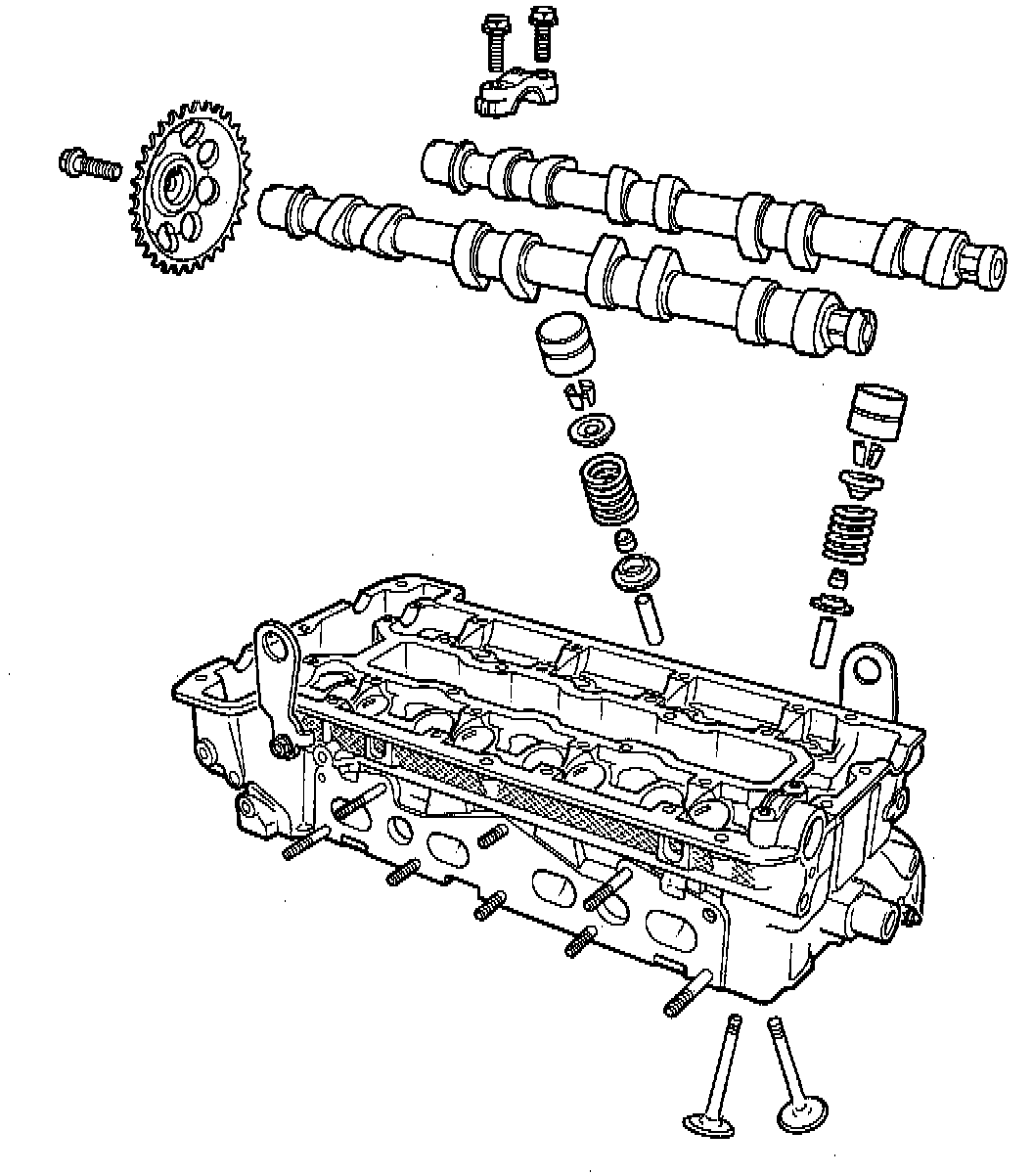

Cylinder Head Assembly: Description and Operation

The cylinder head, a light-alloy precision casting, is bolted onto the block. The combustion chambers are hemispherical with the spark plug in the centre, and there are four valves per cylinder. This design improves the flow of gases in the cylinders, ensuring effective combustion of the fuel-air mixture and so higher efficiency.
