Home >> Saab >> 1994 >> 900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Diagrams >> Splices >> Connection J35 to J53

Connection J35 to J53

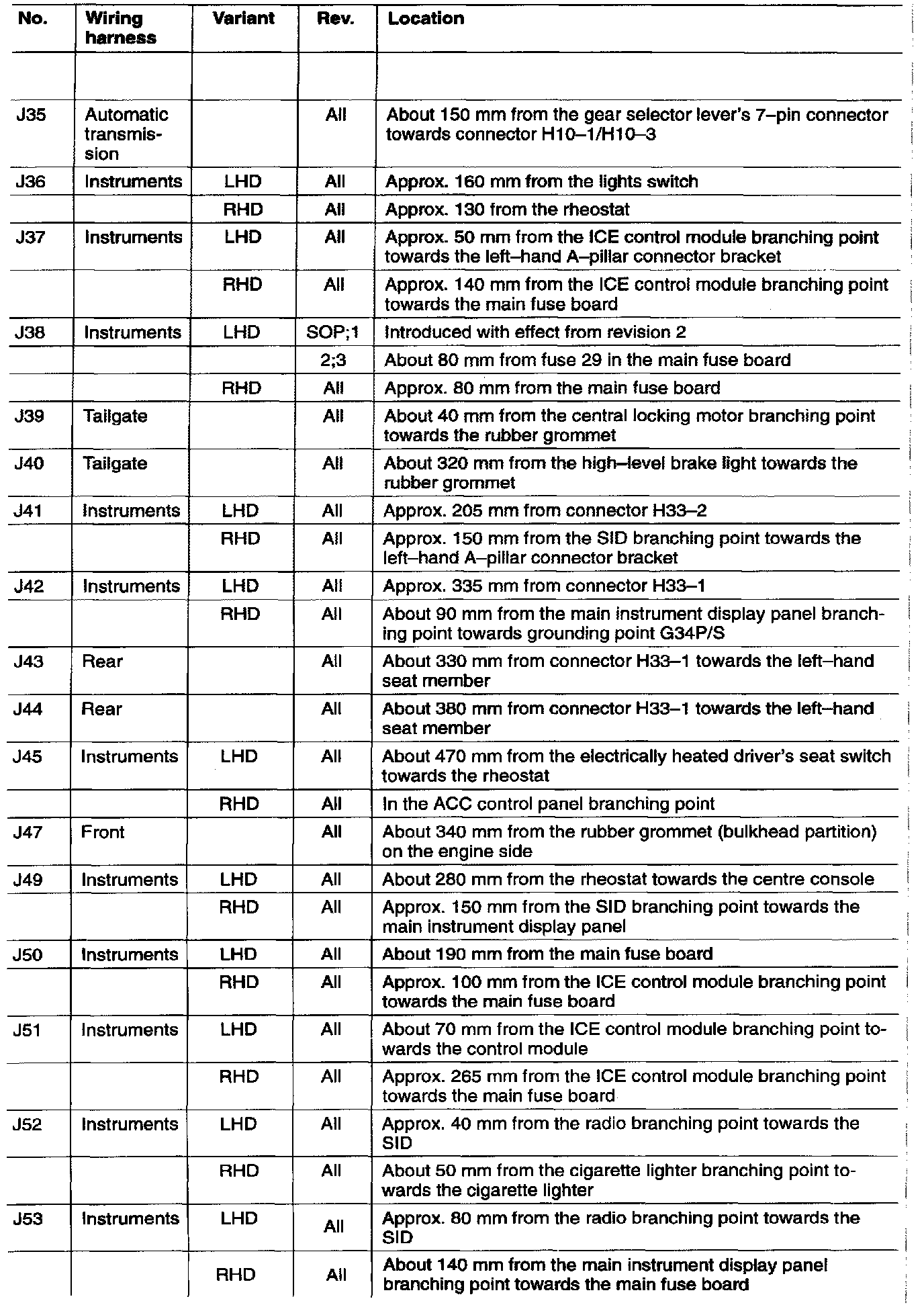

Crimped Connection Location:
