Wind Screen Wiper and Washer

�i�\Windscreen Wipers:

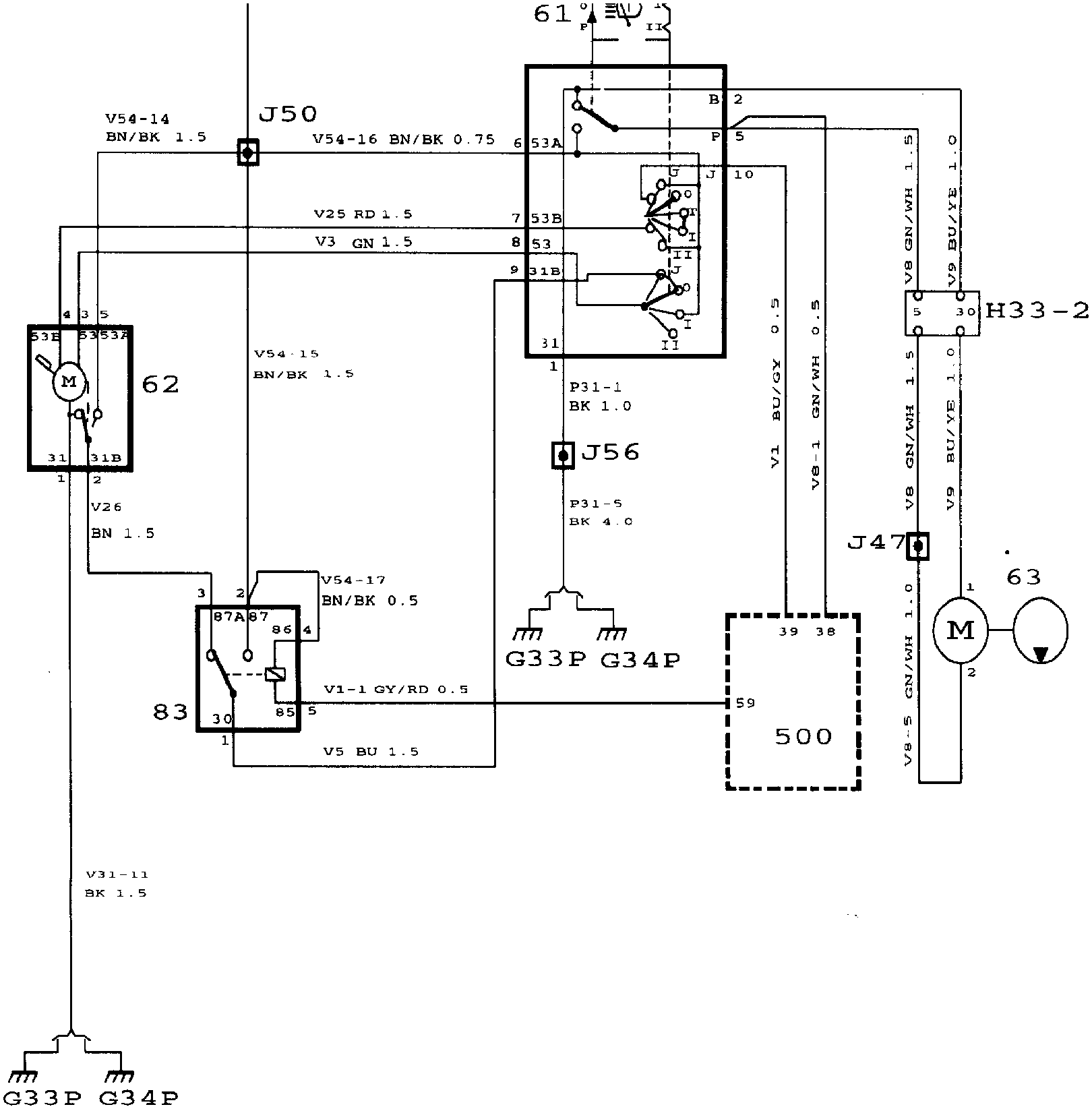

WIRING DIAGRAM

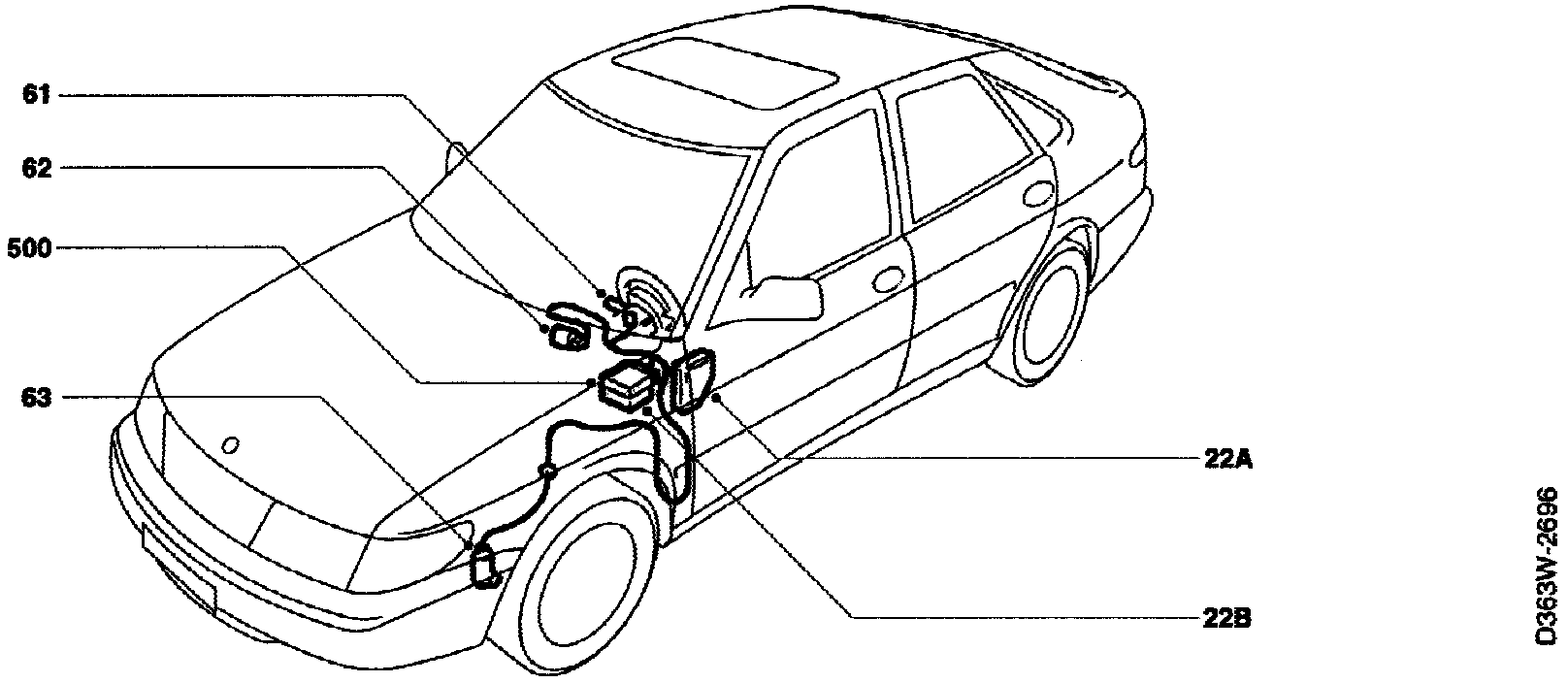

Wind Screen Wipers: Component Location:

COMPONENT LOCATION VIEW

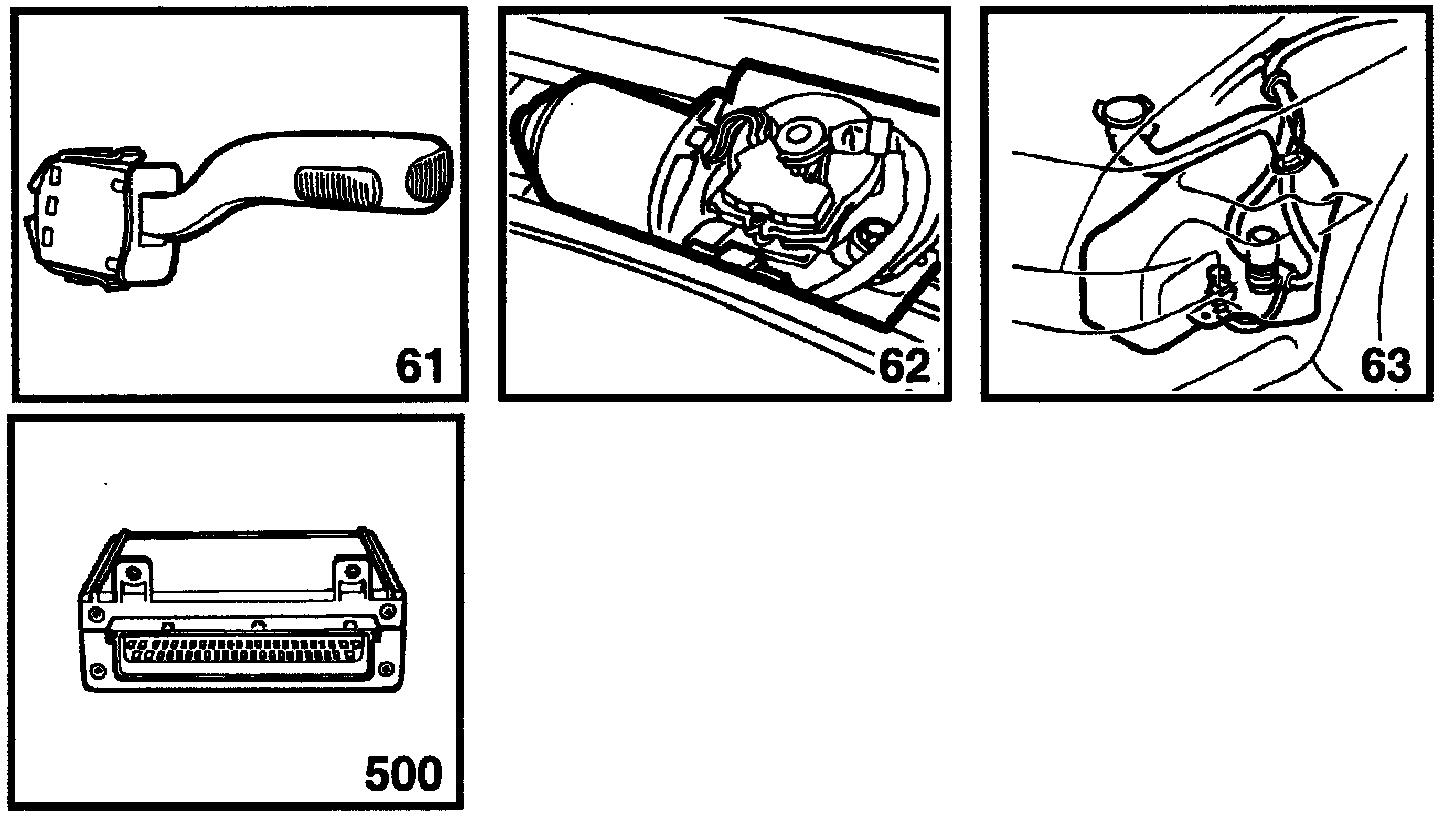

Wind Screen Wipers: Component ID:

COMPONENT ID
22A Main fuse board in the dashboard.
61 Stalk switch for the windshield wipers, on the right-hand side of the steering column.
62 Windshield wiper motor
LHD: in the engine bay on the left-hand side just below the windshield
RHD: in the engine bay on the right-hand side just below the windshield
63 Washer motor on washer fluid reservoir in the left-hand wheel housing.
83 Relay for intermittent operation of the windshield wipers, in the main relay board in the dashboard.
500 ICE control module
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard

33-Pin Connector
H33-2 Black connector on bracket below the left-hand A pillar

Grounding Points
G33P Grounding point, connector bracket (Power) below the left-hand A pillar.
G34P Grounding point, connector bracket (Power) below the left-hand A pillar.

DESCRIPTION OF OPERATION
The car's windshield wipers can run at two speeds and intermittently. The system also includes windshield washers.

When the ignition switch is in the Drive position, current is supplied via fuse 31 to:
^ windshield wiper stalk switch 61
^ relay 83 for intermittent operation
^ windshield wiper motor 62

With the stalk switch in position I, "low speed", current is supplied to pin 3 of the wiper motor from pin 8 of the stalk switch. The motor runs at low speed.

With the stalk switch in position II, current is supplied instead from pin 7 of the stalk switch to pin 4 of the wiper motor. The motor now runs at maximum speed.

With the stalk switch in position J, "intermittent operation", current is supplied from pin 10 of the stalk switch to pin 39 of the ICE control module.

Pin 59 of the ICE control module grounds intermittent operation relay 83 for 0.5 seconds every 8th second.

The wiper motor incorporates a mechanically actuated switch which is supplied with current regardless of the position of the stalk switch.

This switch controls the flow of current in such a way that the wiper motor always returns to the parked position when the current is turned off by the stalk switch.

When the wiper motor reaches the parked position, the mechanically actuated switch cuts off the current and the motor stops.

Washing starts when the spring-loaded stalk is moved towards the steering wheel.

The washer motor and ICE control module are supplied with current from pin 5 of the stalk switch.

The ICE grounds the intermittent operation relay and the wipers sweep the windshield 4 times.

After 8 seconds the ICE grounds the relay again for 0.5 seconds.


FAULT DIAGNOSIS HINTS
The windshield wipers are activated by turning the ignition switch to the Drive position.
1. Check that fuse 31 is intact and supplied with current.
2. Check connectors, wiring and ground connections.
