System Diagram

jI�DElectrically Adjustable Door Mirrors:

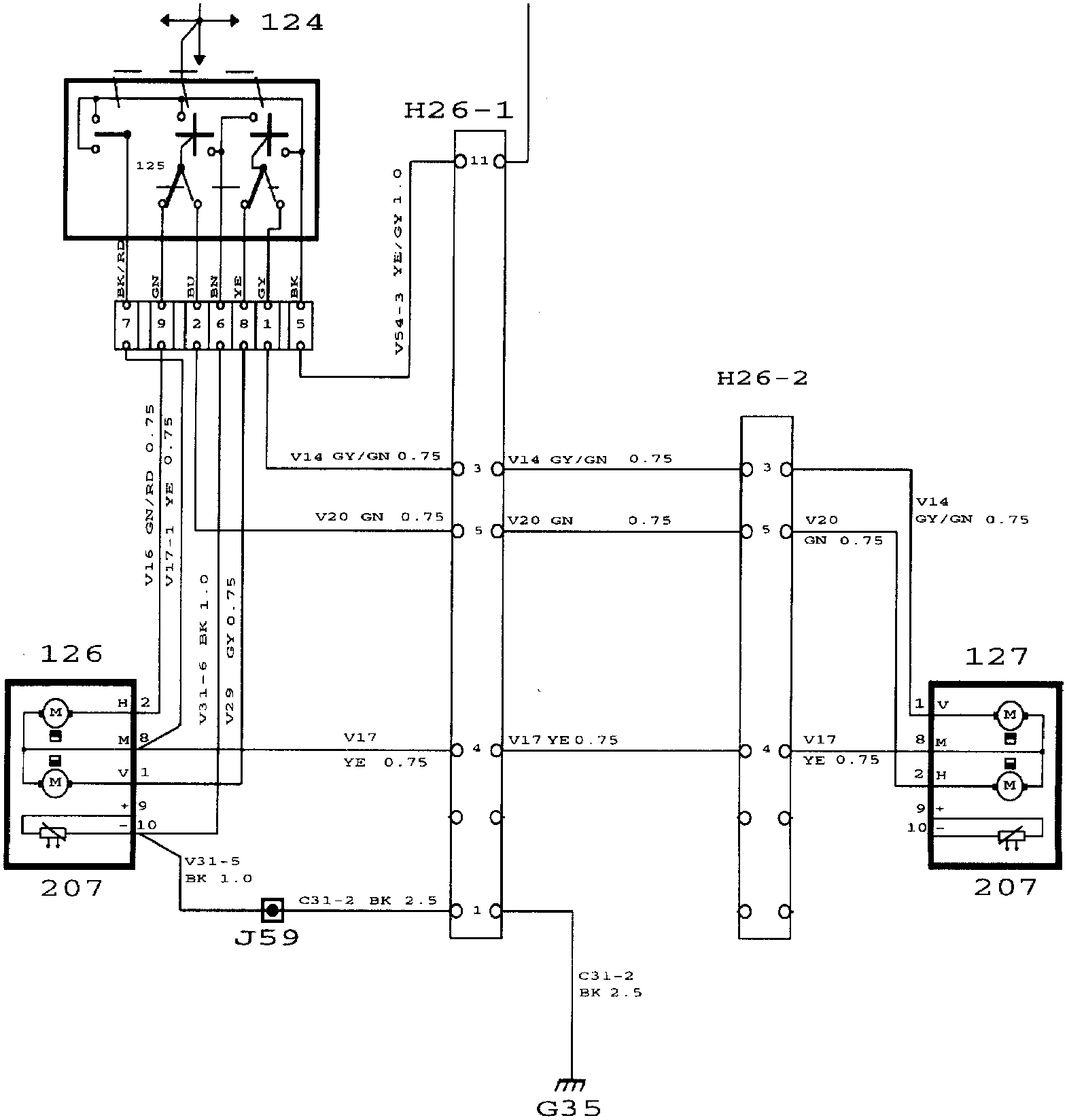

WIRING DIAGRAM

Electrically Adjustable Door Mirrors: Component Location:

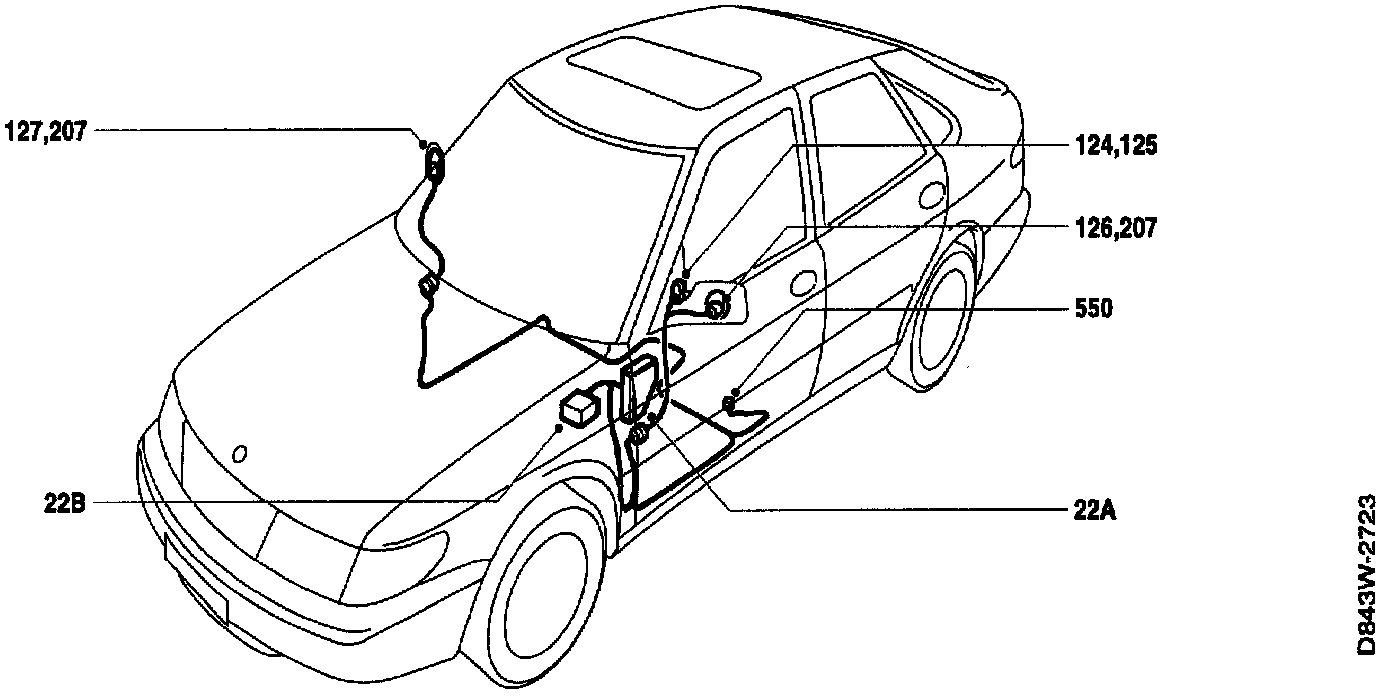

COMPONENT LOCATION VIEW

Electrically Adjustable Door Mirrors: Component ID:

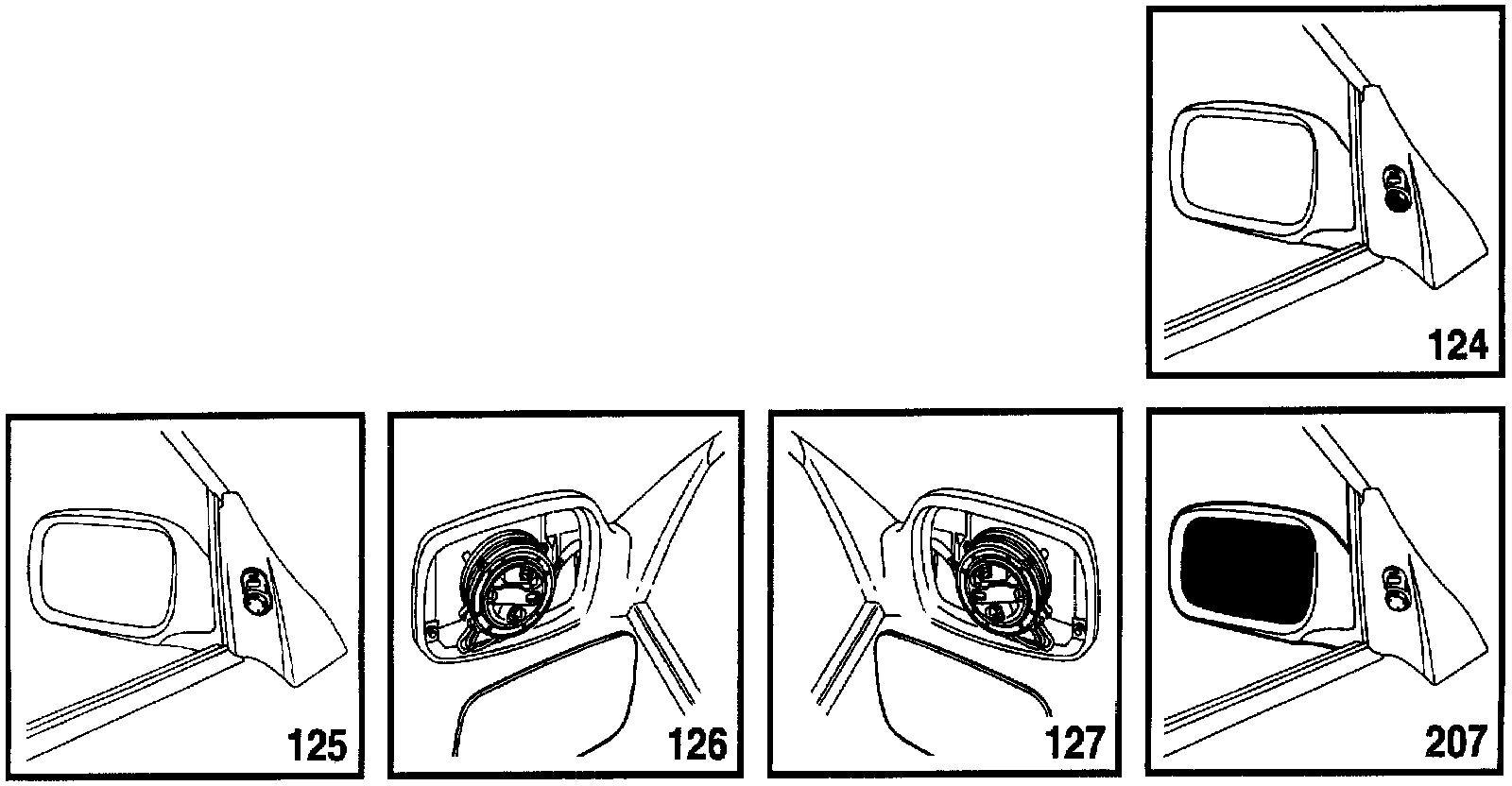

COMPONENT ID
22A Main fuse board in the dashboard.
124 Switch, electrically adjustable door mirror, on the driver's door.
125 Left-right selector switch for the electrically adjustable door mirrors, on the driver's door.
126 Motor for the left-hand electrically adjustable door mirror, in the left-hand front door.
127 Motor for the right-hand electrically adjustable door mirror, in the right-hand front door.
207 Electric heating element in each door mirror.

26-Pin Connectors
H26-1 Connector, left-hand front door.
H26-2 Connector, right-hand front door.

33-Pin Connector
H33-1 Grey connector on the bracket below the left-hand A pillar.

Grounding Points
G24 Grounding point, right-hand front seat member, under the seat.
G35 Grounding point, dashboard, behind the connector bracket below the left-hand A pillar

DESCRIPTION OF OPERATION
The door mirrors are operated with a four-position switch and a selector on the driver's door. Heating for the door mirrors is turned on with the switch for the electrically heated rear window.

Current is supplied via fuse 19 to pin 5 of switch 124, which has four positions.

Selector 125 is used to select the door mirror, left or right, which is to be operated by means of switch 124.

Electrically Heated Door Mirrors 207, See "Electrically Heated Rear Window and Door Mirrors".

FAULT DIAGNOSIS HINTS
The door mirrors will be operative when the ignition switch is in the Drive position.
1. Check that fuses 19 and 20 are intact and supplied with current.
2. Check that current is present on pin 5 of switch 124.
3. Check that current is supplied to motors 126 and 127 by actuating the switch.
4. Check the connectors, wiring harness and ground connections.
