Electric Tailgate Release

��BElectric Liftgate Release:

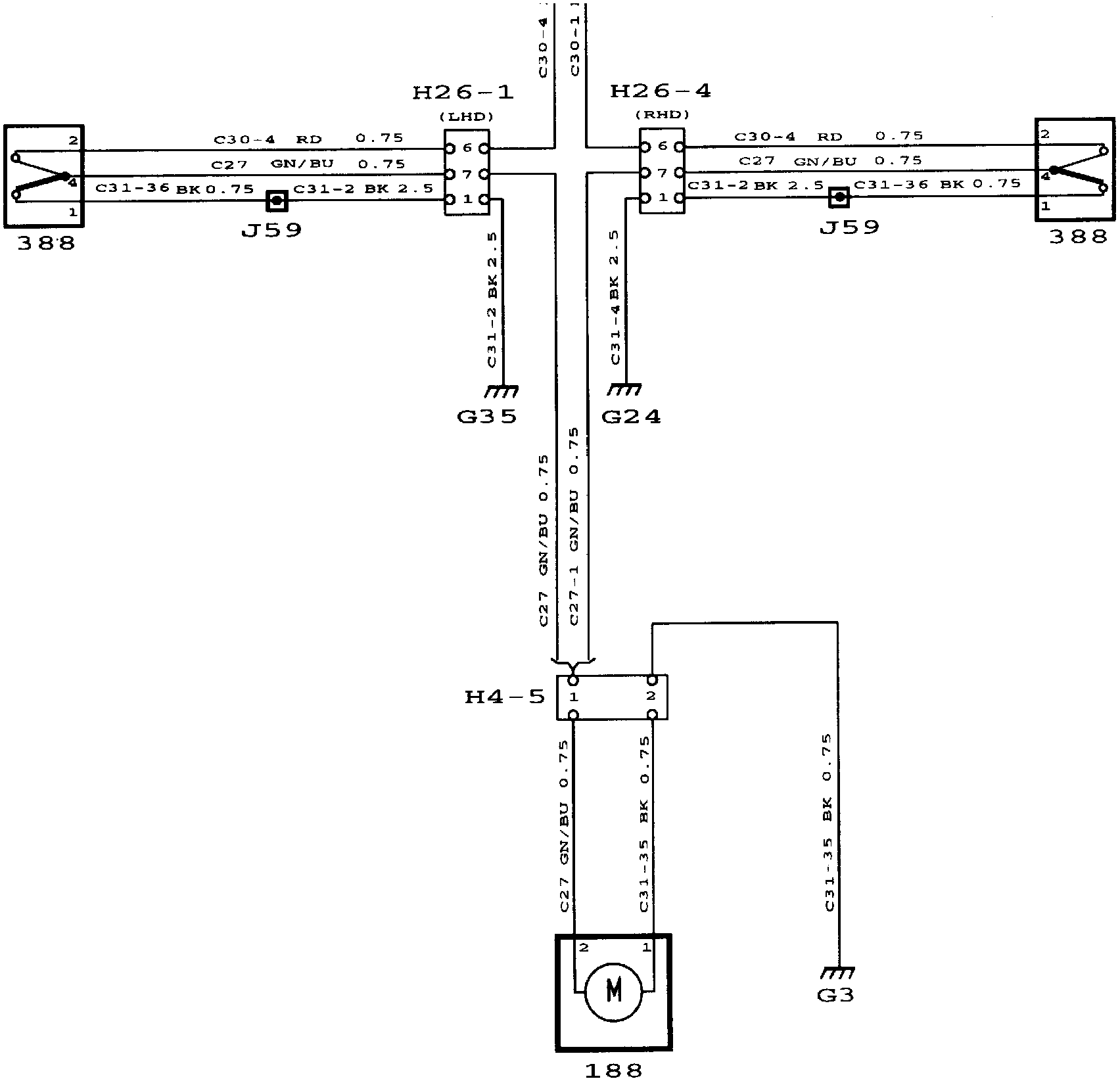

WIRING DIAGRAM

Electric Tailgate Release: Component Location:

COMPONENT LOCATION VIEW

Electric Tailgate Release: Component ID:

COMPONENT ID
22A Main fuse board in the dashboard.
188 Motor, central locking system, in the tailgate.
388 Switch, electrically operated tailgate release, on the driver's door.

4-Pin Connector
H4-5 In the luggage compartment behind the left-hand wheel housing.

26-Pin Connectors
H26-1 Connector, left-hand front door.
H26-2 Connector, right-hand front door.

33-Pin Connector
H33-1 Grey connector on the bracket below the left-hand A pillar.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G24 Grounding point, right-hand front seat member, under the seat.
G35 Grounding point, dashboard, behind the connector bracket below the left-hand A pillar.

DESCRIPTION OF OPERATION
The tailgate can be opened either by means of switch 388 on the driver's door or by using the key.

When the tailgate is opened by means of switch 388, motor 188 is supplied with current (+30 circuit) from the switch via fuse 25.

A spring in motor 188 ensures that it always returns to the locked position.

To avoid bouncing of the motor on its return, it is braked by both sides of it being connected to ground.

FAULT DIAGNOSIS HINTS
1. Check that current is supplied to pin 2 of switch 388.
2. Check that current is supplied to pin 2 of the motor when switch 388 is pressed.
3. Check the connectors, wiring harness and ground connections.
