Parking Lamp

ރ%YParking Lights:

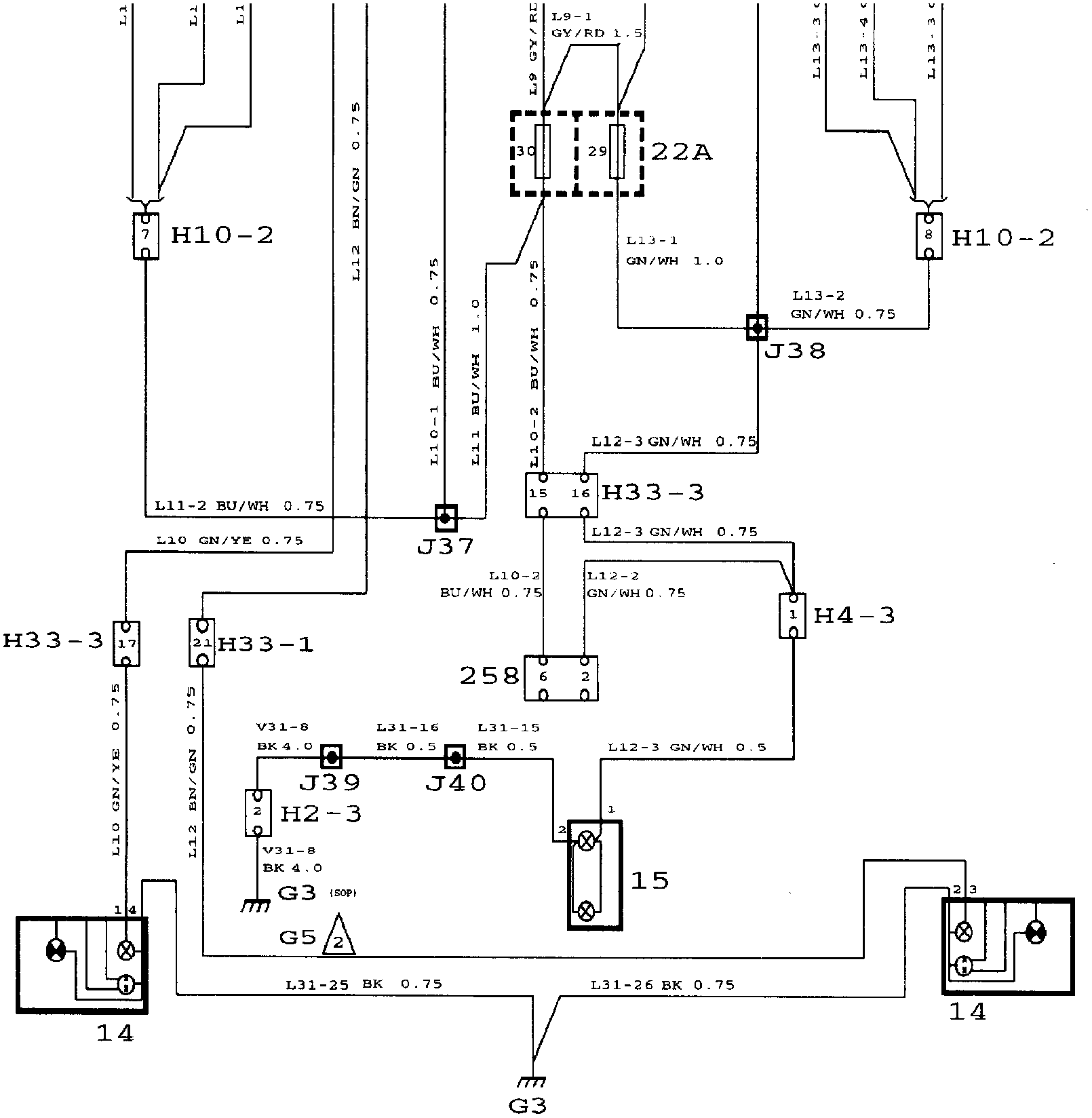

WIRING DIAGRAM

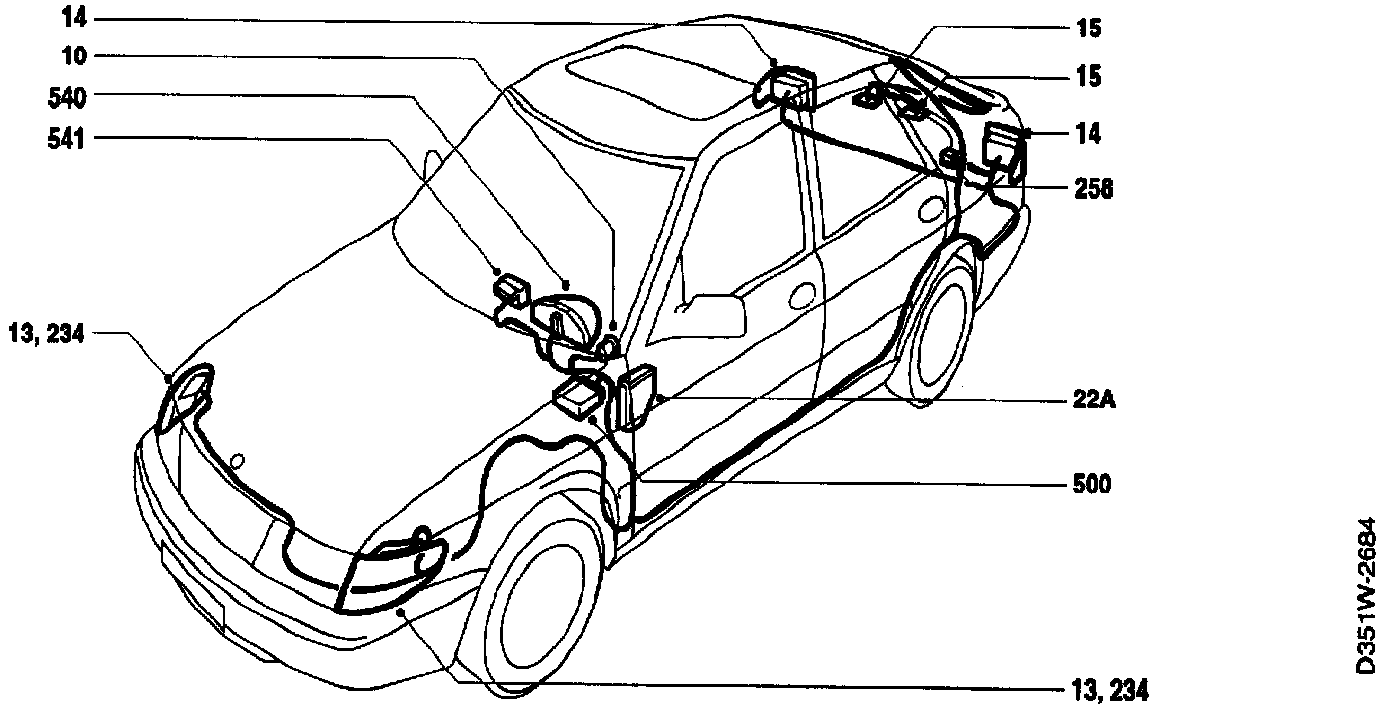

Parking Lights: Component Location:

COMPONENT LOCATION VIEW

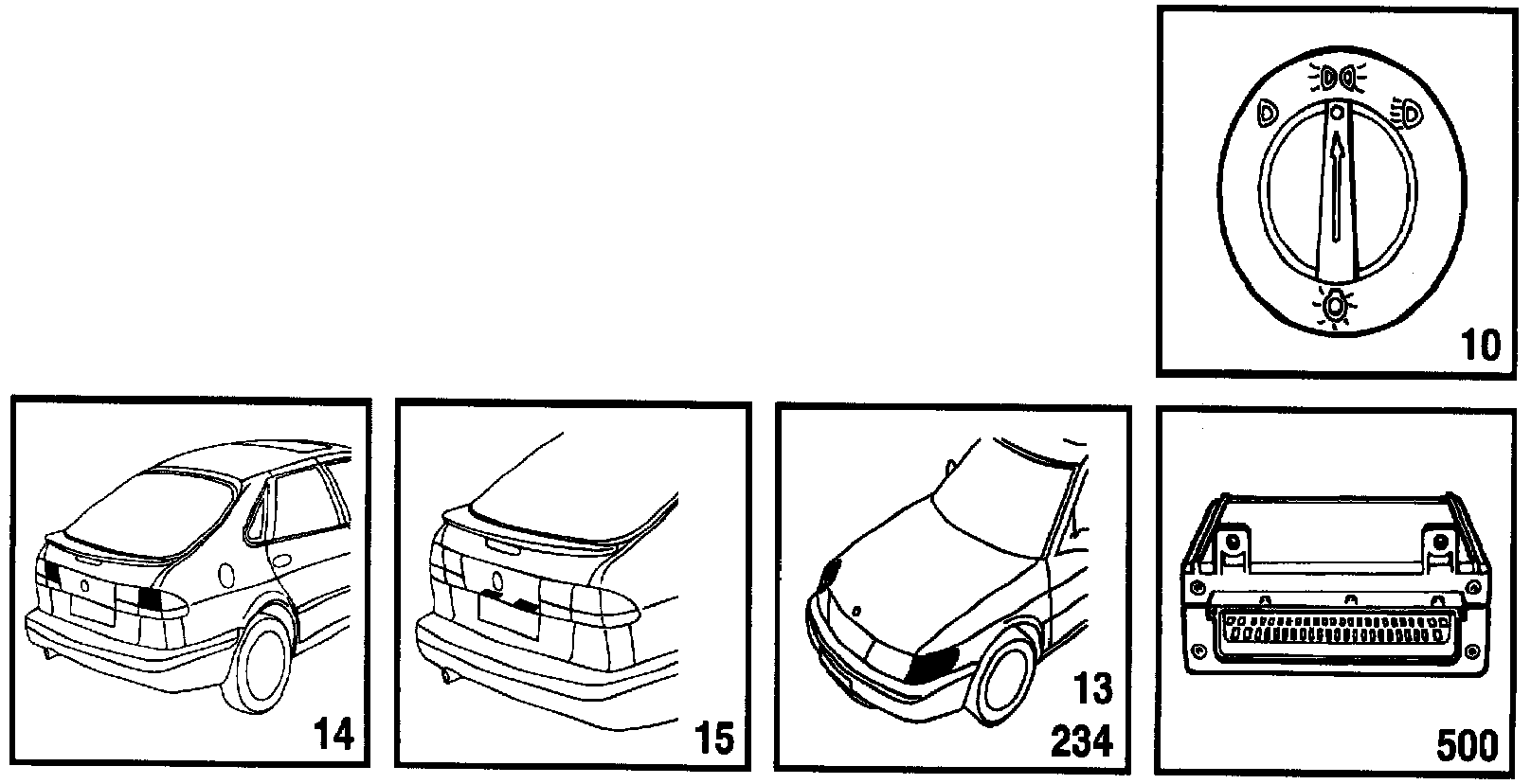

Parking Lights: Component ID:

COMPONENT ID
10 Lights switch on dashboard between steering wheel and driver's door.
13 Parking lights in the front light clusters.
14 Rear lights in the rear light clusters.
15 Number plate lamp on the tailgate.
22A Main fuse board in the dashboard.
234 Side marker lights in the front light clusters.
258 Connection for trailer lighting.
(H8-5)
500 ICE control module
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard

2-Pin Connector
H2-3 In the luggage compartment behind the left-hand wheel housing.

4-Pin Connector
H4-3 In the luggage compartment behind the left-hand wheel housing.

10-Pin connector
H10-2 On the bracket below the left-hand A pillar.

33-Pin connectors
H33-1 Grey connector on the bracket below the left-hand A pillar.
H33-3 Blue connector on the bracket below the left-hand A pillar.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G5 Grounding point under rear seat on the left.
G30 Grounding point, left-hand structural member behind the battery.
G31 Grounding point, right-hand structural member on the right-hand side of the engine bay.

DESCRIPTION OF OPERATION
The parking lights are switched on and off by means of lights switch 10, which is always supplied with current.

When the lights switch is in position 1, current is supplied to parking lights 13 via fuses 29 and 30.

Rear lights 14 are also supplied with current via these fuses but through the ICE control module which monitors them.

If a rear light bulb should fail, the ICE control module sends a signal to pin 8 of the SID unit which lights up the "DEFECTIVE LAMP" indicator lamp or the INFO DISPL lamp in the main instrument display panel at the same time as a message is displayed in the SID unit.

Number plate lamp 15 and the rear lights on a trailer, if any, are always supplied with current when the parking lights are switched on.

The ICE control module monitors these lamps.

The parking lights on the trailer, if any, are supplied with current via connector 258 (H8-5).

Side marker lights 234 are fitted on cars for certain markets.

FAULT DIAGNOSIS
The parking lights are switched on by turning lights switch 10 to drive position 1.
1. Check that fuses 29 and 30 are intact and supplied with current.
2. Check that the bulbs are intact and supplied with current.
3. Check the connectors, wiring harness and ground connections.

IMPORTANT: Whenever it is necessary to change any of the bulbs, always install a bulb of the correct rating. The ICE control module may otherwise sense a state of imbalance and the "DEFECTIVE LAMP" indicator lamp or INFO DISPL lamp will light up in the main instrument display panel.
