Daytime Running Lamp

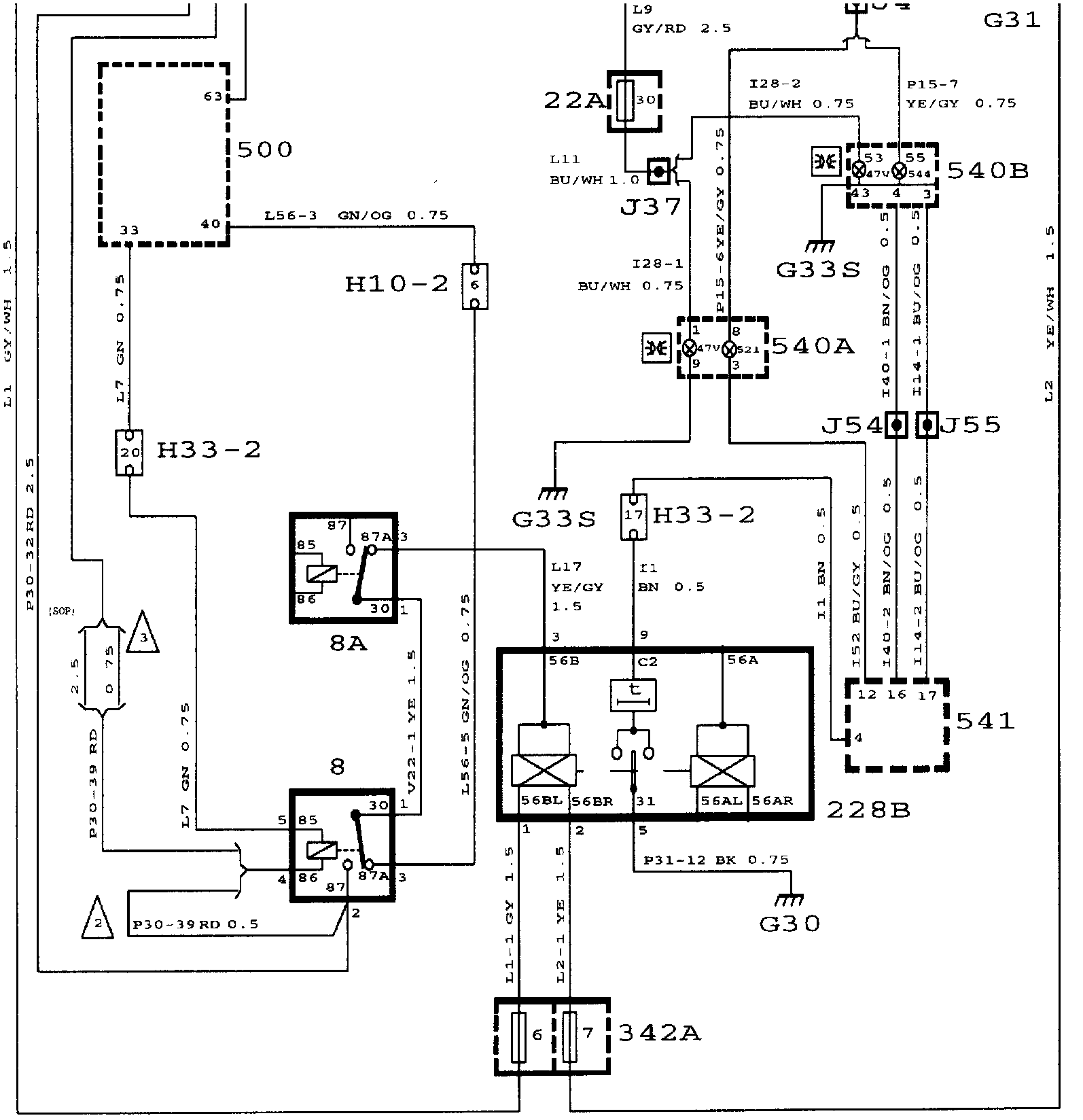

_��WDaylight Driving Lights:

WIRING DIAGRAM

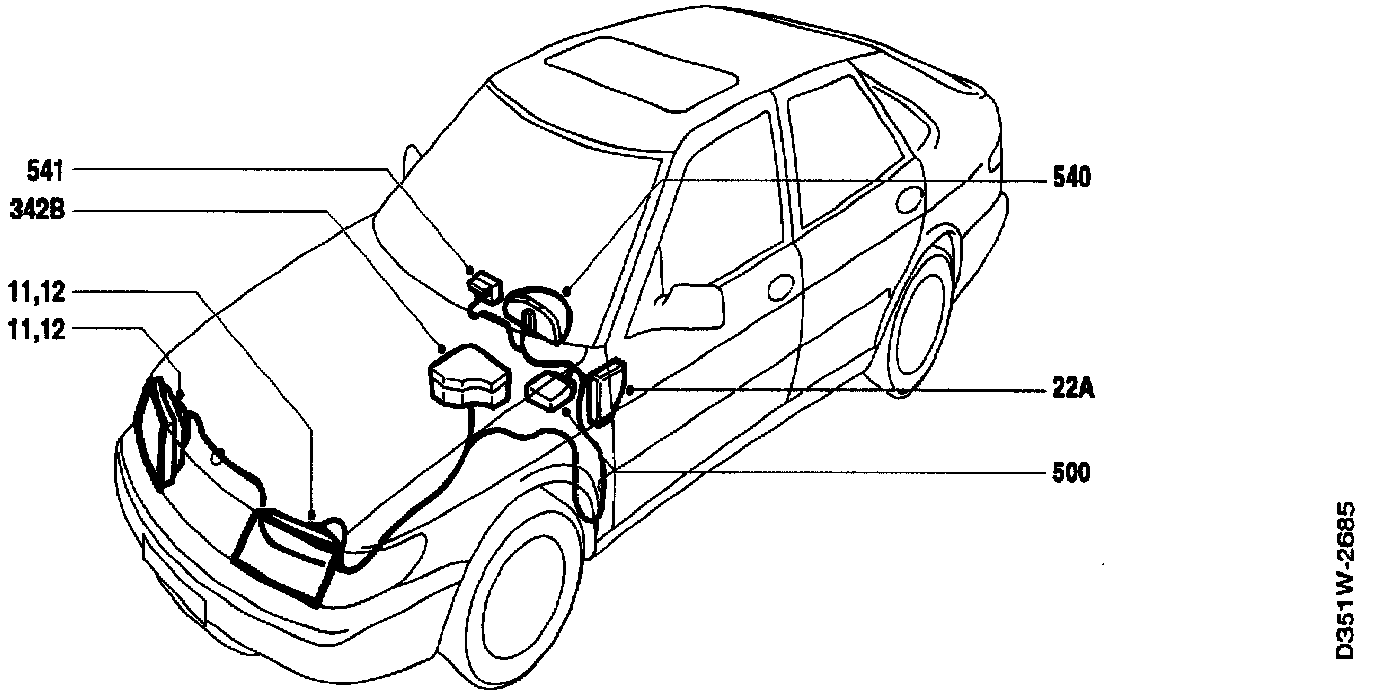

Daylights Driving Lights: Component Location:

COMPONENT LOCATION VIEW

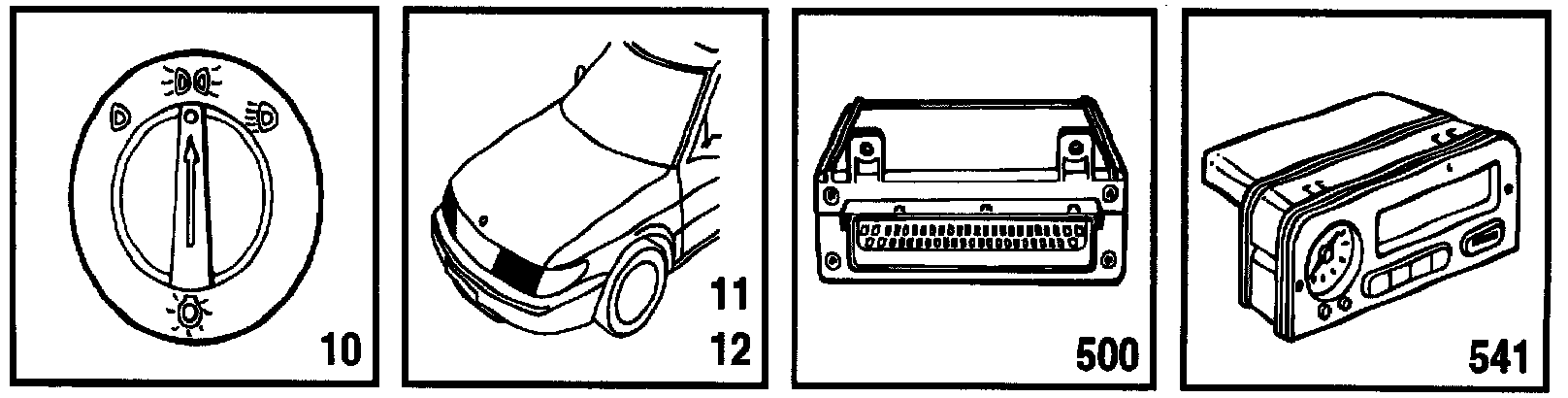

Daylights Driving Lights: Component ID:

COMPONENT ID
8 Headlamp relay on main relay board in the engine bay.
8A Dipswitch relay on main relay board in the engine bay.
10 Lights switch between steering wheel and driver's door.
11 Main beam in LH and RH headlamps.
12 Dipped beam in LH and RH headlamps.
22A Main fuse board in the dashboard.
47V Lights on indicator lamp in the main instrument display panel.
228B Filament monitor, head lamps, on main relay board in the engine bay.
342A Main fuse board in the engine bay.
500 ICE control module
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard
521 "DEFECTIVE LAMP" indicator lamp in main instrument display panel 1.
540 Main instrument display panel on the dashboard.
541 SID unit on the dashboard.
544 "INFO DISPL" indicator lamp in main instrument display panel 2.

1O-Pin Connector
H10-2 On the bracket below the left-hand A pillar.

33-Pin Connector
H33-2 Black connector on bracket below the left-hand A pillar.

Grounding Points
G30 Grounding point, left-hand structural member behind the battery.
G31 Grounding point, right-hand structural member on the right-hand side of the engine bay.
G33S Grounding point, connector bracket (Signal) below the left-hand A pillar.

DESCRIPTION OF OPERATION
On cars for certain markets, the dipped beams serve as daylight driving lights.

Depending on how the ICE control module is programmed, the lamps light up when the ignition switch is turned to the Drive position.

The parking lights, rear lights and number plate lamp will also light up.

Depending on the programming of the ICE control module, dipped beam filaments 12 will be supplied with current when ignition switch 20 is in the Drive position and the lights switch is in position 0 or 1.

Current is supplied to pin 63 of the ICE control module via fuse 15 and lights switch 10 (position 0), with the result that the ICE control module grounds lighting relay 8 and the daylight driving lights come on.

The parking lights are also lit when the daylight driving lights are on, see also the "Parking Lights".

Cars for certain markets have an indicator lamp (47V) which shows when the daylight driving lights are on.

Should one of the dipped beam filaments fail, the dipped beam relay in the filament monitor will operate and terminal C2 will be grounded.

Since pin 4 of the SID unit is grounded, the "DEFECTIVE LAMP" indicator lamp or the INFO DISPL lamp in the main instrument display panel will light up.

FAULT DIAGNOSIS HINTS
The daylight driving lights will be on when ignition switch 20 is in the Drive position and the lights switch is in position 0 or 1 (depending on the market programming of the ICE).
1. Check that fuses 6 and 7 are intact and supplied with current.
2. Check that the bulbs are OK and supplied with current.
3. Check connectors, wiring and ground connections.
