Glove Box Lamp

���WGlove Box Light:

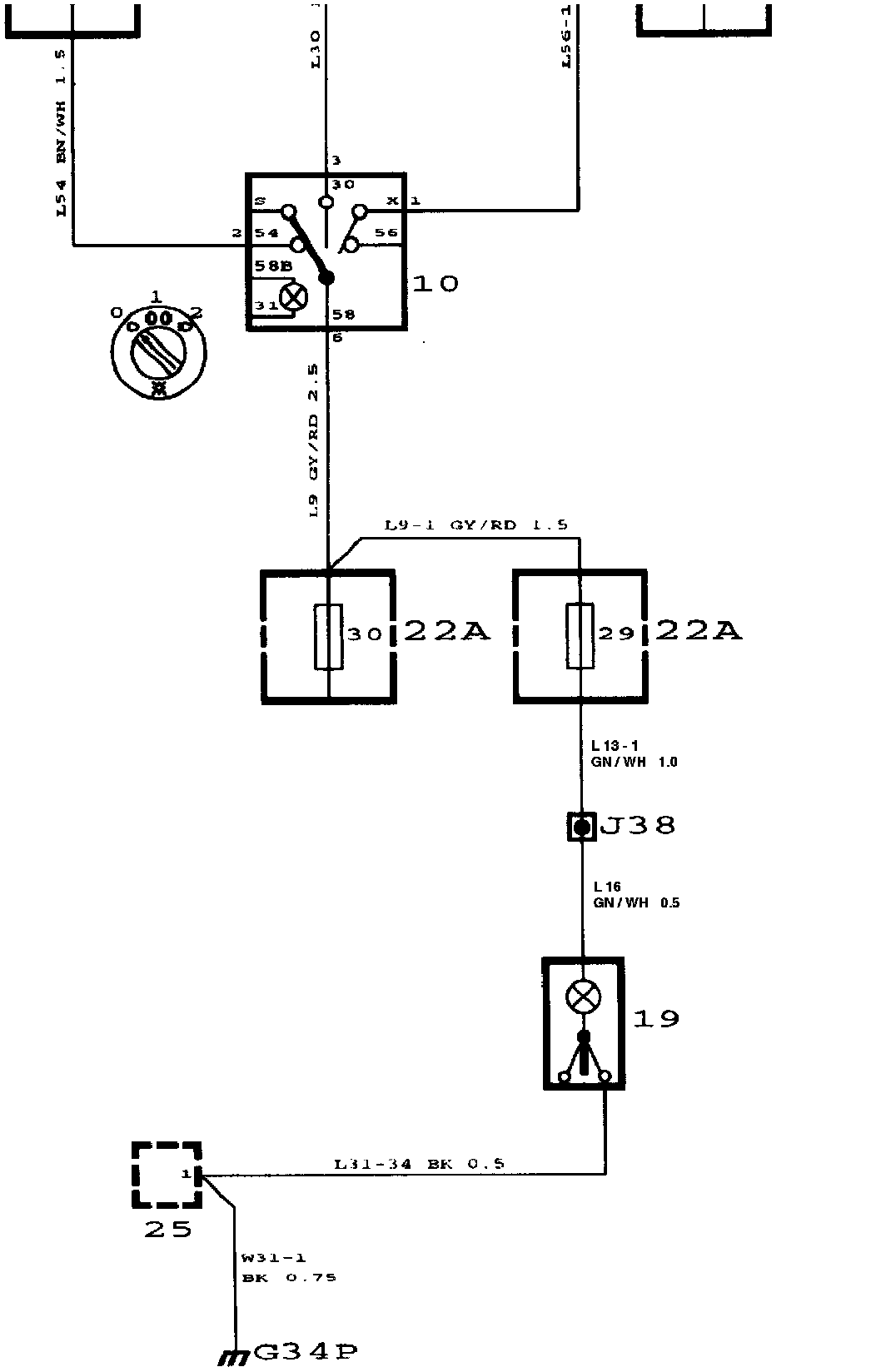

WIRING DIAGRAM

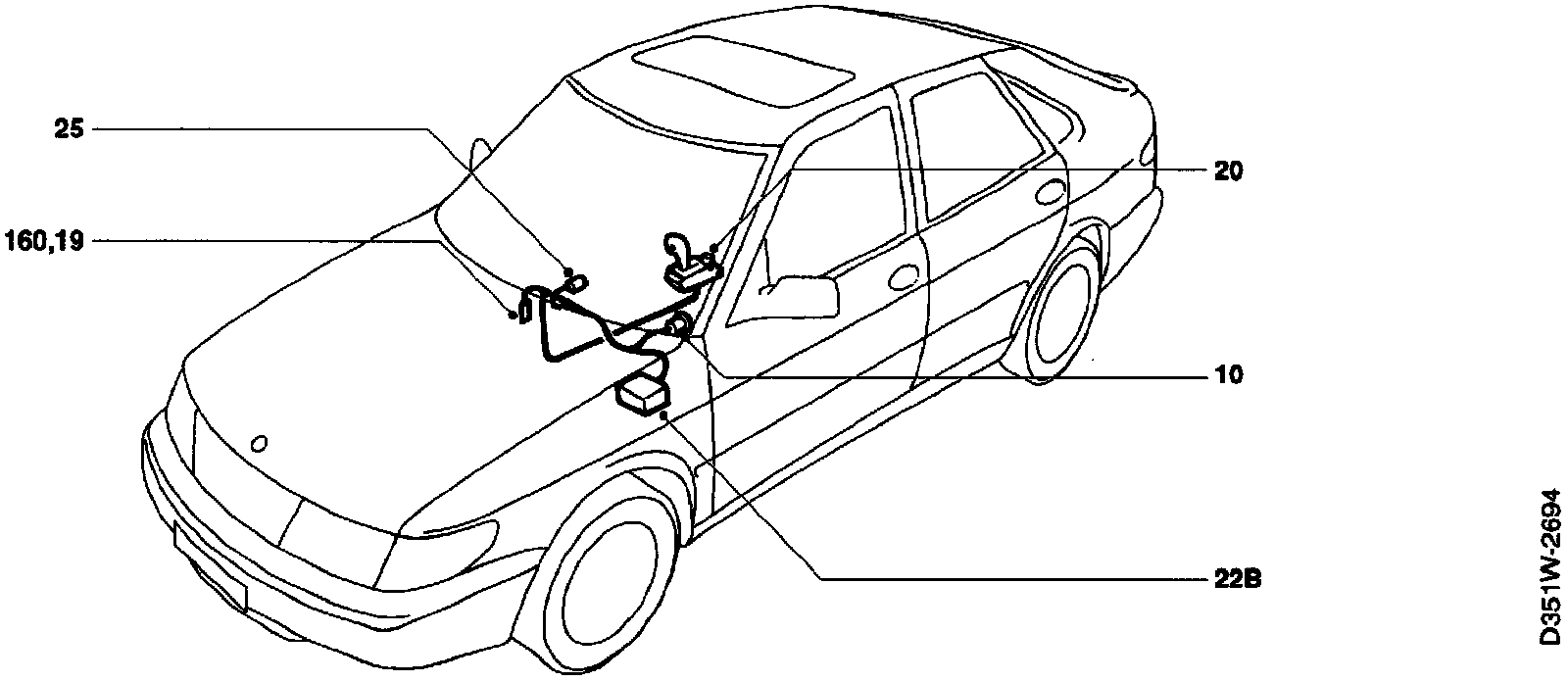

Glove Box Light: Component Location:

COMPONENT LOCATION VIEW

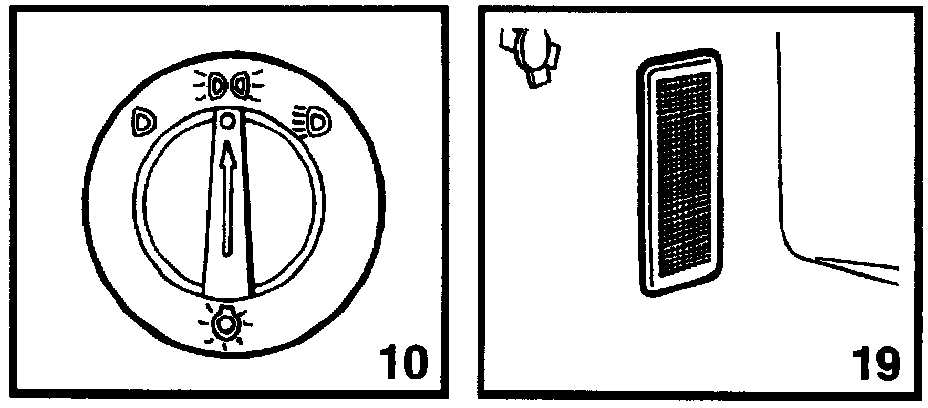

Glove Box Light: Component ID:

COMPONENT ID
10 Lights switch on dashboard between steering wheel and driver's door.
19 Glove box light, in the glove box.
20 Ignition switch on centre console between the front seats.
25 Hazard flashers switch, on the dashboard beside SID unit 541.
501 Main fuse board, maxi fuses, behind the battery.

Grounding Points
G34P Grounding point, control module bracket (Power) below the right-hand A pillar.

DESCRIPTION OF OPERATION
When lights switch 10 is in position 0, current from the +54 circuit is supplied to the glove box.

When the lights switch is in position 1, current from the +30 circuit is supplied to the glove box.

When the lights switch is in position 2, current from the +X circuit is supplied to the glove box.

Current is supplied to the switch in the glove box via fuse 29.

When the glove box lid is opened, the switch closes the circuit to ground and lamp 19 comes on.

FAULT DIAGNOSIS HINTS
1. Check that fuse 29 is intact and supplied with current.
2. Check whether the bulb is OK.
3. Check the connectors, wiring harness and ground connections.
