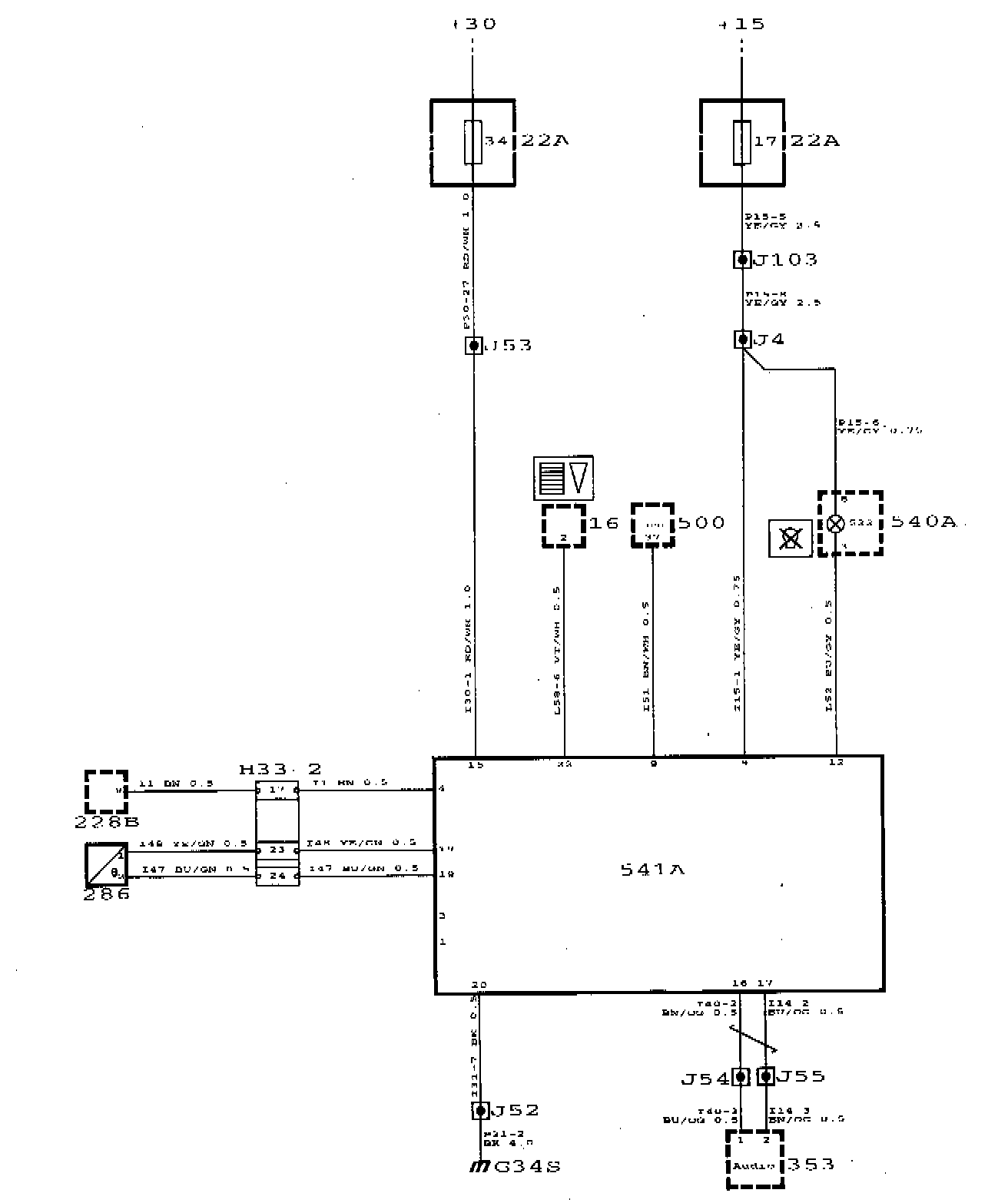

Wiring Diagram, Saab Information Display (SID) 1 or 4, M1994

16 Rheostat on dashboard to left (LHD) or right (RHD) of steering wheel.
22A Main fuse box, behind the cover in the glove box.
195 Washer fluid level switch in the reservoir in LH wheel housing.
216 Climate control unit in the centre console.
228B Front filament monitor in main fuse box in engine bay (pos. F).
242 Coolant level switch in expansion tank.
286 Outside temperature sensor under front bumper in the centre.
353 Radio and cassette player in centre console.
445 Data link connector under dashboard
(H16-1) adjacent to steering wheel.
500 ICE control module on top of relay holder adjacent to steering column.
509 Sensonic control module
521 "BULB FAILURE" indicator lamp in main instrument display panel 1.
540 Main instrument display panel on dashboard.
541 SID unit in centre of dashboard.
547 ABS control module integrated in brake unit in engine bay.
565 TSAS control module
H10-2 On bracket below left-hand A pillar. H33-2 Black 33-pin connector on bracket below left-hand A pillar.
G30 Grounding point, left-hand structural member behind the battery.
G33S Grounding point, connector bracket (Signal) on bracket below left-hand A pillar.
G33P Grounding point, connector bracket (Power) on bracket below left-hand A pillar.
G34S Grounding point, control module bracket below right-hand A pillar.
J4 LHD: About 450 mm from the rheostat towards the centre console (instrument wiring).
RHD: About 240 mm from the rheostat towards the main instrument display panel (instrument wiring).
J49 LHD: About 280 mm from the rheostat towards the centre console (instrument wiring).
RHD: About 400 mm from the SID unit towards the main instrument display panel (instrument wiring).
J52 LHD: About 440 mm from the branch for the main instrument display panel towards the centre console (instrument wiring).
RHD: About 400 mm from the cigarette lighter (instrument wiring).
J53 LHD: About 480 mm from the branch for the main instrument display panel towards the centre console (instrument wiring).
RHD: About 280 mm from the rheostat towards the main instrument panel (instrument wiring).
J54 LHD: About 550 mm from the rheostat towards the main instrument display panel (instrument wiring).
RHD: About 360 mm from the SID unit towards the left-hand side of the connector bracket (instrument wiring).
J55 LHD: About 500 mm from the rheostat towards the main instrument display panel (instrument wiring).
RHD: About 320 mm from the SID unit towards the main instrument display panel (instrument wiring).
J103 About 170 mm from the left-hand front loudspeaker connection (instrument wiring).

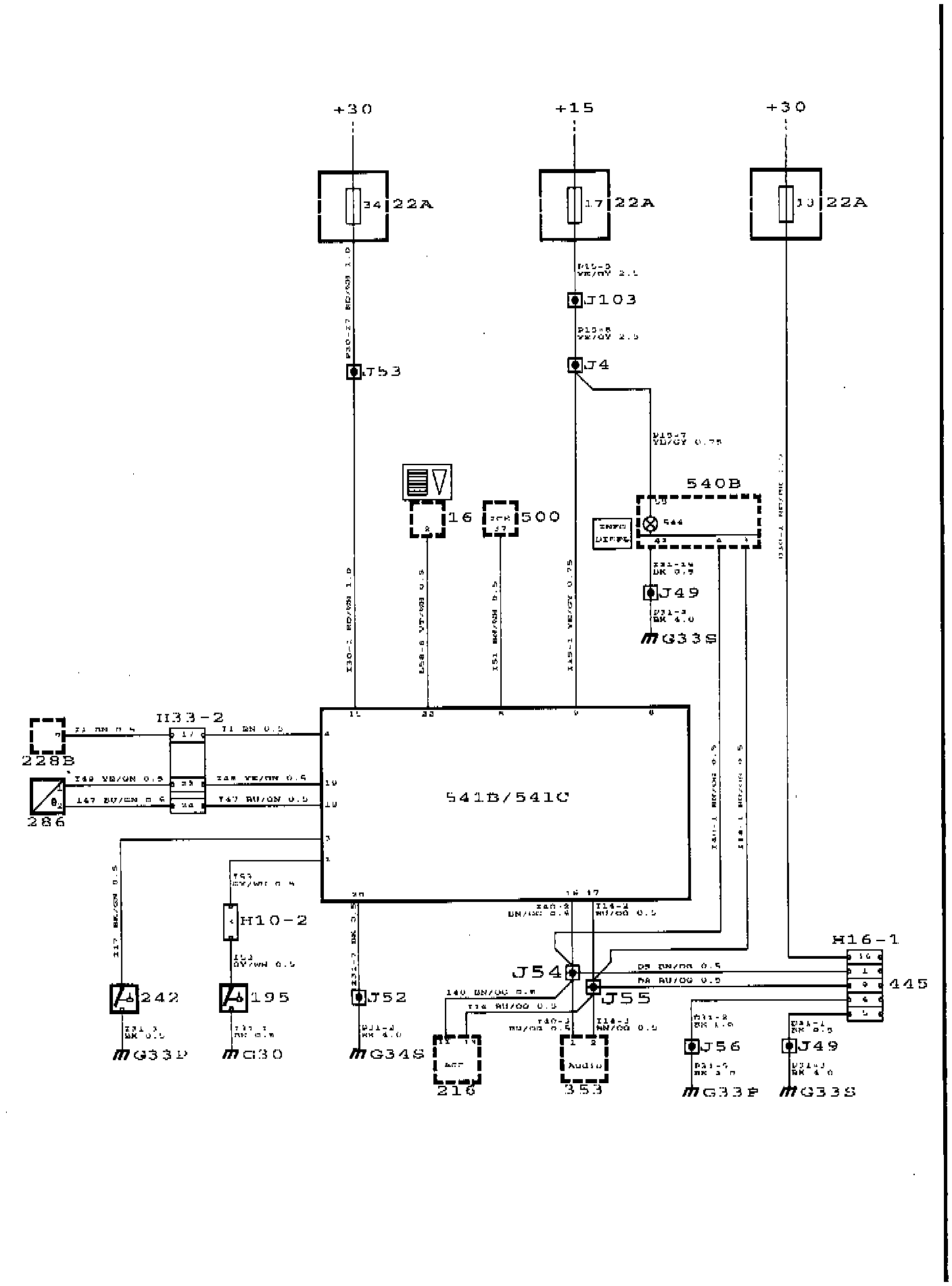

Wiring Diagram, SID 2 or 3, M1994

16 Rheostat on dashboard to left (LHD) or right (RHD) of steering wheel.
22A Main fuse box, behind the cover in the glove box.
195 Washer fluid level switch in the reservoir in LH wheel housing.
216 Climate control unit in the centre console.
228B Front filament monitor in main fuse box in engine bay (pos. F).
242 Coolant level switch in expansion tank.
286 Outside temperature sensor under front bumper in the centre.
353 Radio and cassette player in centre console.
445 Data link connector under dashboard
(H161) adjacent to steering wheel.
500 ICE control module on top of relay holder adjacent to steering column.
509 Sensonic control module
521 "BULB FAILURE" indicator lamp in main instrument display panel 1.
540 Main instrument display panel on dashboard.
541 SID unit in centre of dashboard.
547 ABS control module integrated in brake unit in engine bay.
565 TSAS control module
H10-2 On bracket below left-hand A pillar.
H33-2 Black 33-pin connector on bracket below left-hand A pillar.
G30 Grounding point, left-hand structural member behind the battery.
G33S Grounding point, connector bracket (Signal) on bracket below left-hand A pillar.
G33P Grounding point, connector bracket (Power) on bracket below left-hand A pillar.
G34S Grounding point, control module bracket below right-hand A pillar.
J4 LHD: About 450 mm from the rheostat towards the centre console (instrument wiring).
RHD: About 240 mm from the rheostat towards the main instrument display panel (instrument wiring).
J49 LHD: About 280 mm from the rheostat towards the centre console (instrument wiring).
RHD: About 400 mm from the SID unit towards the main instrument display panel (instrument wiring).
J52 LHD: About 440 mm from the branch for the main instrument display panel towards the centre console (instrument wiring).
RHD: About 400 mm from the cigarette lighter (instrument wiring).
J53 LHD: About 480 mm from the branch for the main instrument display panel towards the centre console (instrument wiring).
RHD: About 280 mm from the rheostat towards the main instrument panel (instrument wiring).
J54 LHD: About 550 mm from the rheostat towards the main instrument display panel (instrument wiring).
RHD: About 360 mm from the SID unit towards the left-hand side of the connector bracket (instrument wiring).
J55 LHD: About 500 mm from the rheostat towards the main instrument display panel (instrument wiring).
RHD: About 320 mmfrom the SID unit towards the main instrument display panel (instrument wiring).
J103 About 170 mm from the left-hand front loudspeaker connection (instrument wiring).
