Cigarette Lighter

Cigarette Lighter:

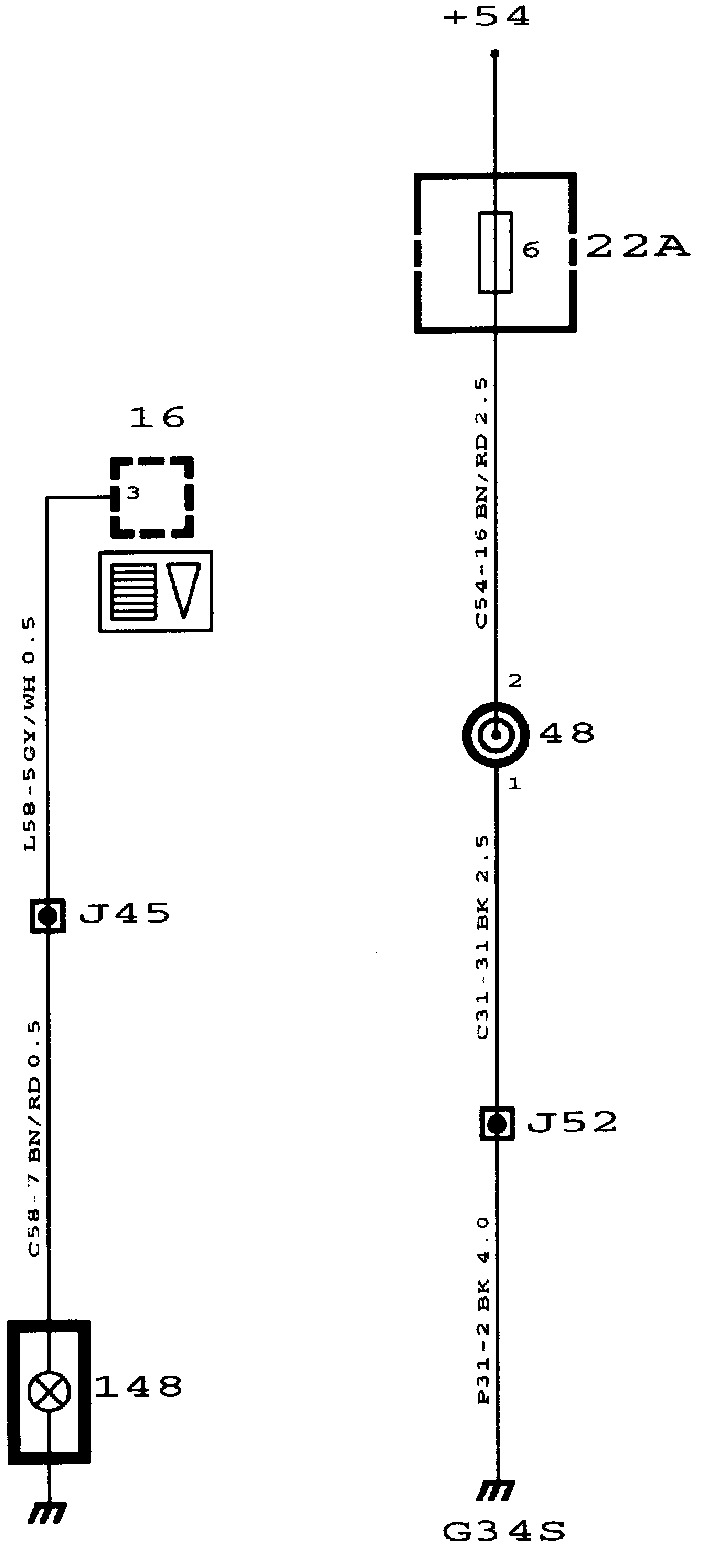

WIRING DIAGRAM

Cigarette Lighter: Component Location:

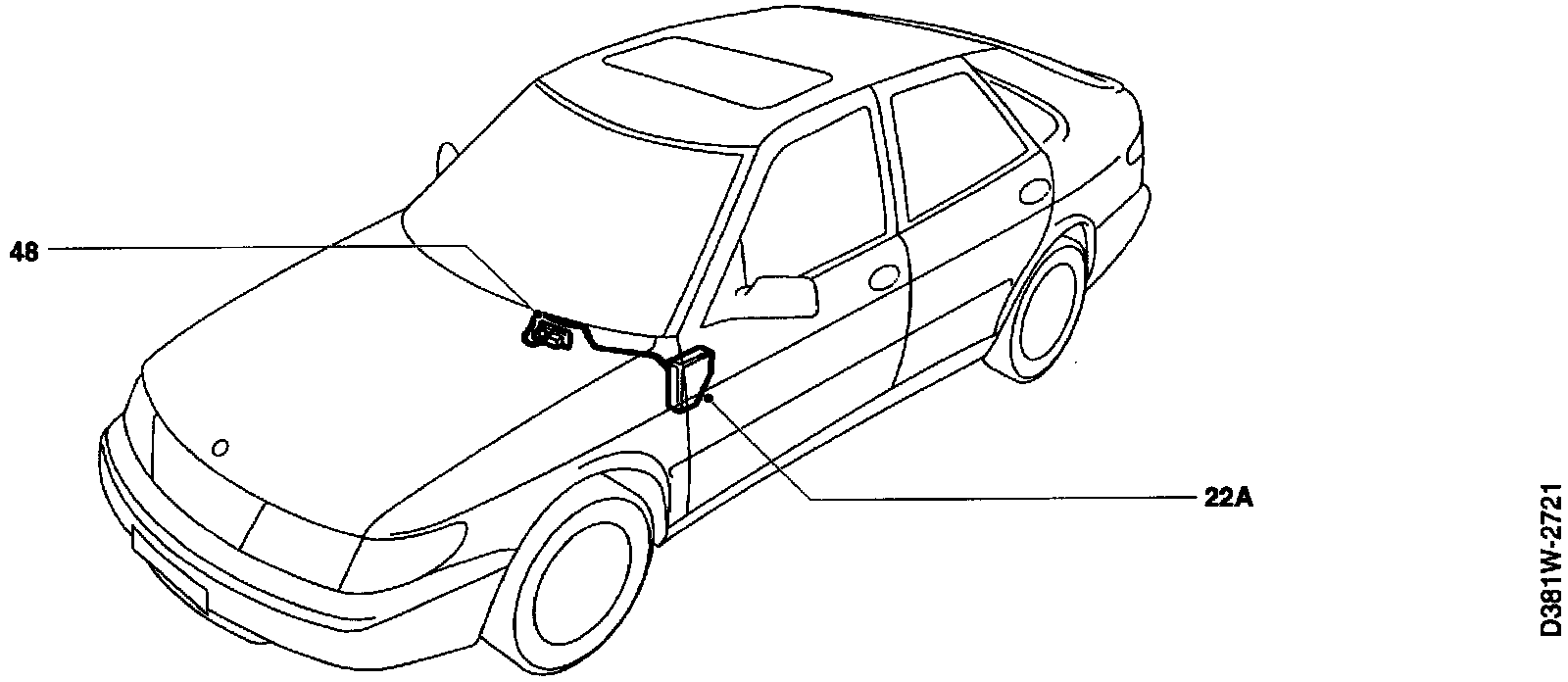

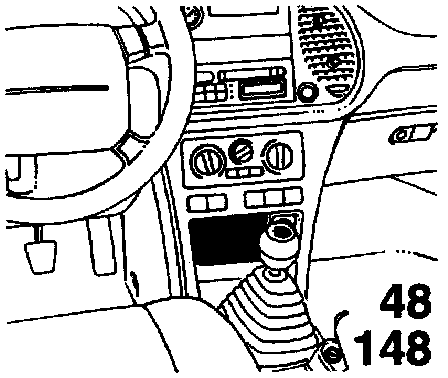

COMPONENT LOCATION VIEW

Cigarette Lighter: Component ID:

COMPONENT ID
16 Rheostat, lighting for controls and instruments, on the dashboard between the steering wheel and driver's door.
22A Main fuse board in the dashboard.
48 Cigarette lighter adjacent to the ashtray at the front of the centre console.
148 Ashtray lighting, front ashtray.

Grounding Points
G34S Grounding point, control module bracket (Signal) below the right-hand A pillar.

DESCRIPTION OF OPERATION
When the ignition switch is in the Drive position, positive voltage is supplied to cigarette lighter 48 via fuse 6.

The circuit closes when the cigarette lighter is pressed in.

FAULT DIAGNOSIS HINTS
1. Check that fuse 6 is intact and supplied with current.
2. Check the cigarette lighter filament.
3. Check the ground connection.
