Checking the Fuses

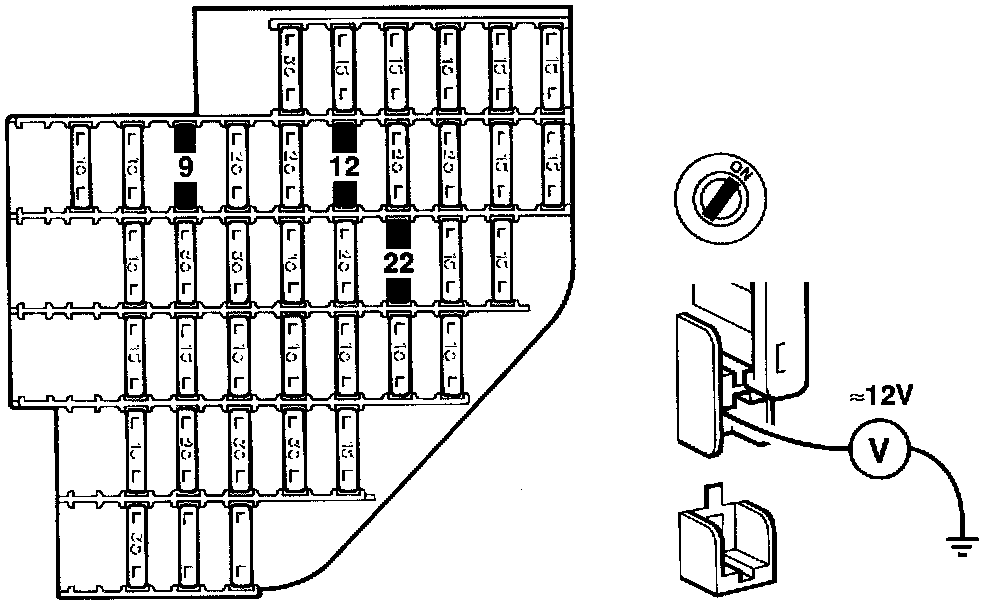

1 Check that the fuse is intact and that a 12 V supply is present across it, as in the table below.

Function Fuse number Amperes Condition
Cruise Control 22 15 A Battery voltage
Power supply Ignition switched on (+54)
Brake light switch 12 15 A Battery voltage (+30)
Selector lever position 9 15 A Battery voltage
Sensor Ignition switched on (+X)
