Hydraulic Control Assembly - Antilock Brakes: Service and Repair

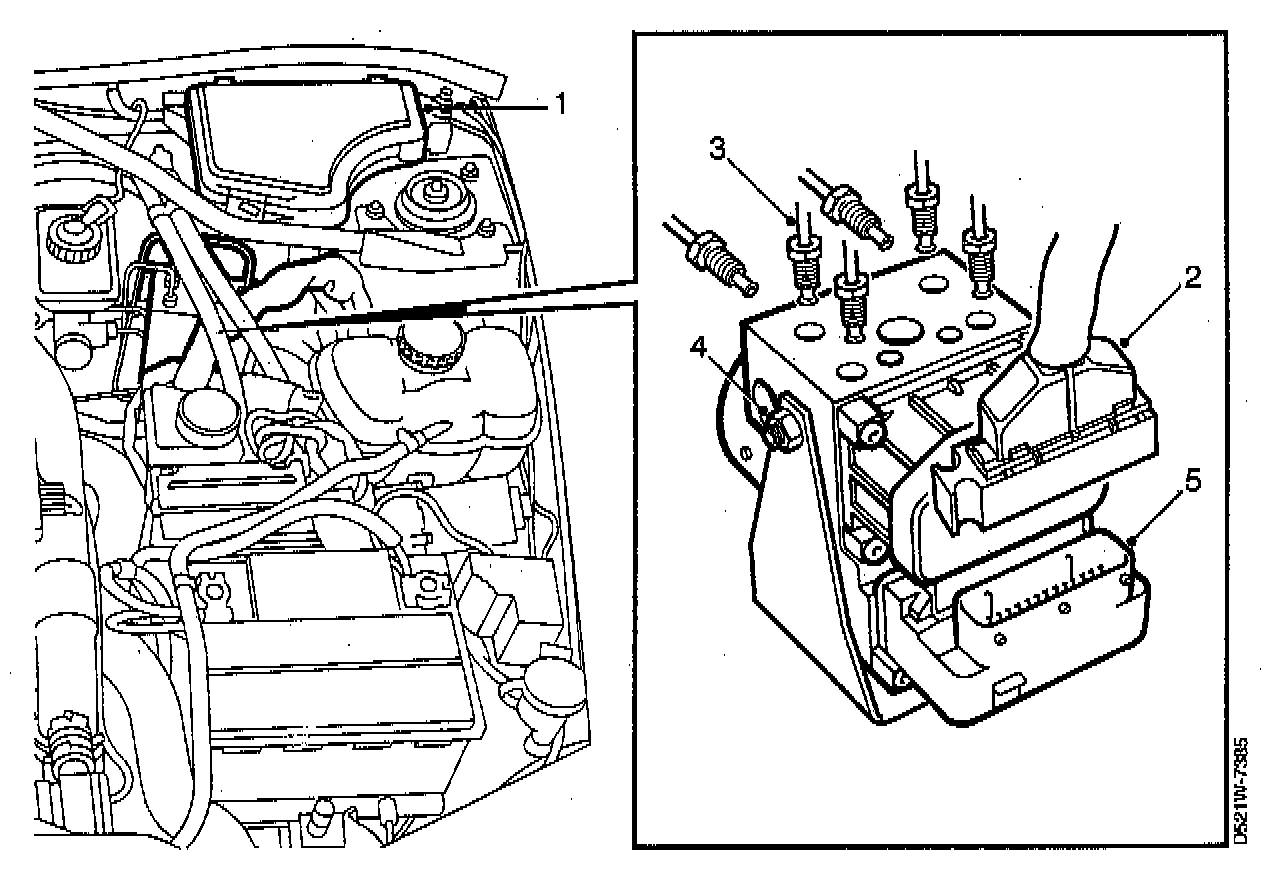

Removal
1. Disconnect and move away the electrical distribution box.
2. Unfasten the electrical glove and move it away.
3. Unscrew the brake pipe connections and plug the holes.
4. Unfasten the two bolts nuts that hold the hydraulic unit onto the bracket.
5. Lift out the hydraulic unit

Installation
1. Place the hydraulic unit in position and tighten up the two nuts.
2. Take away the plugs and reconnect the brake pipes.
3. Install the electrical glove and electrical distribution box.
4. Bleed the brake system.
