Menu

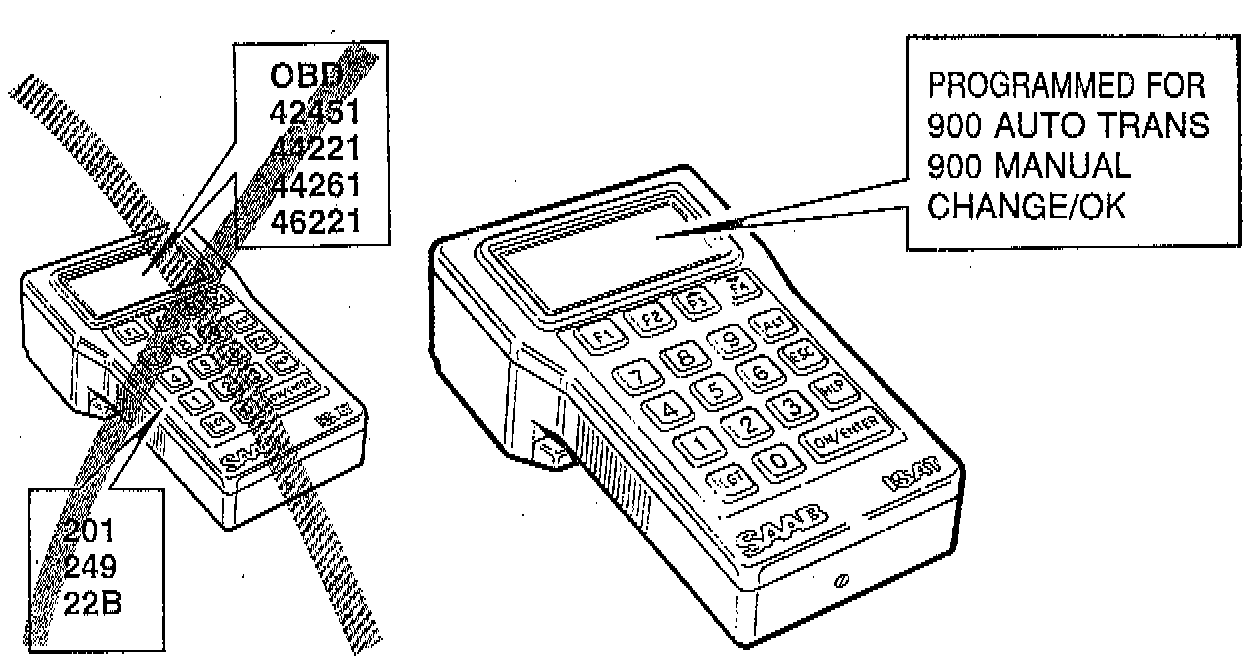

To obtain a readout or activate signals and functions, a three-digit code has previously been used. This has been superseded with effect from M94 by a system in which clear text messages under a number of menu choices make it easy to select the desired command directly from the keyboard.

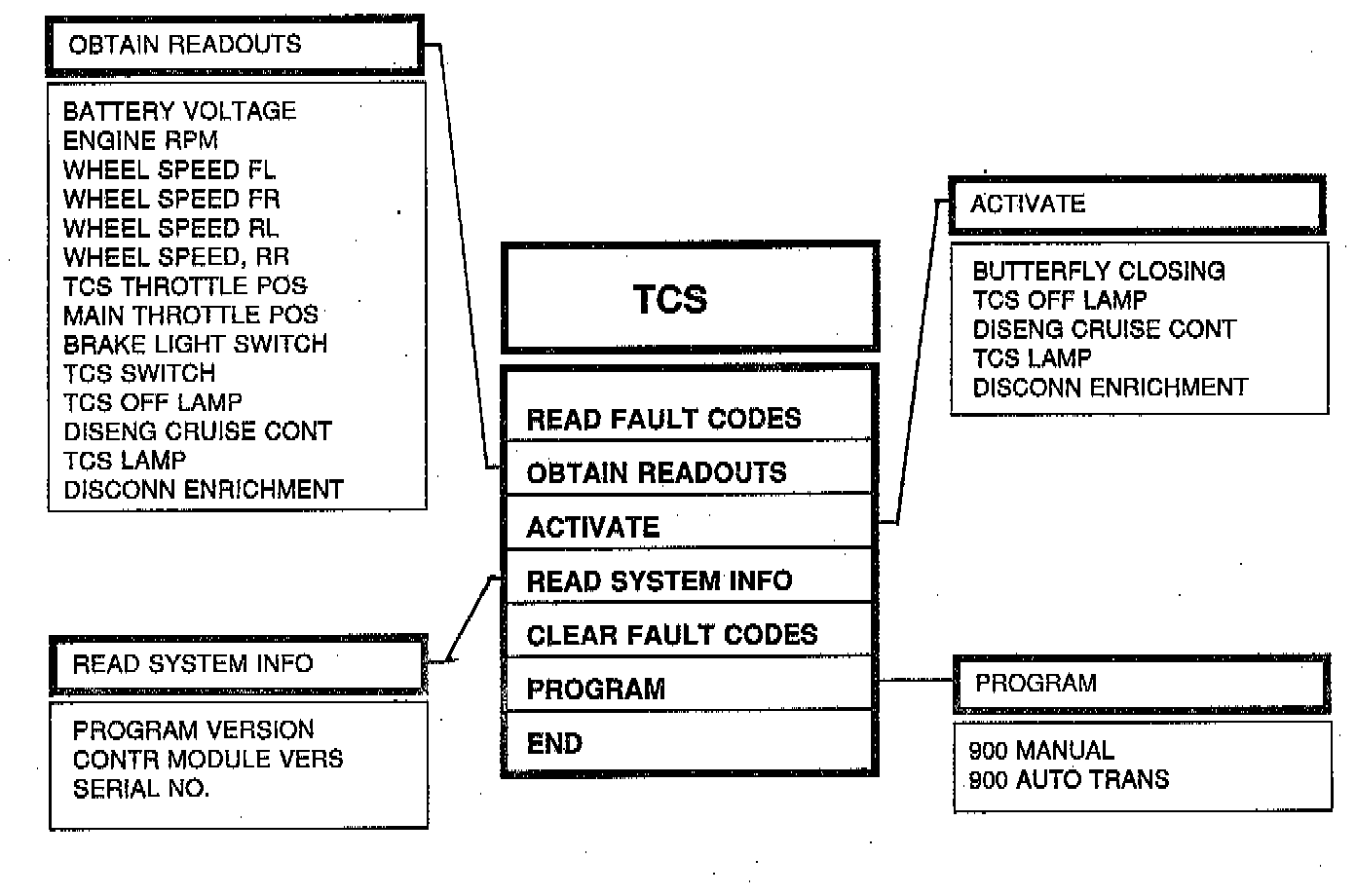

The structure of the TCS system's command menus is shown in the schematic diagram.





There are seven main menus, four of which have a varying number of commands or functions.

These are:
- OBTAIN READOUTS
- ACTIVATE
- READ SYSTEM INFO
- PROGRAM
