Pinout Values and Diagnostic Parameters

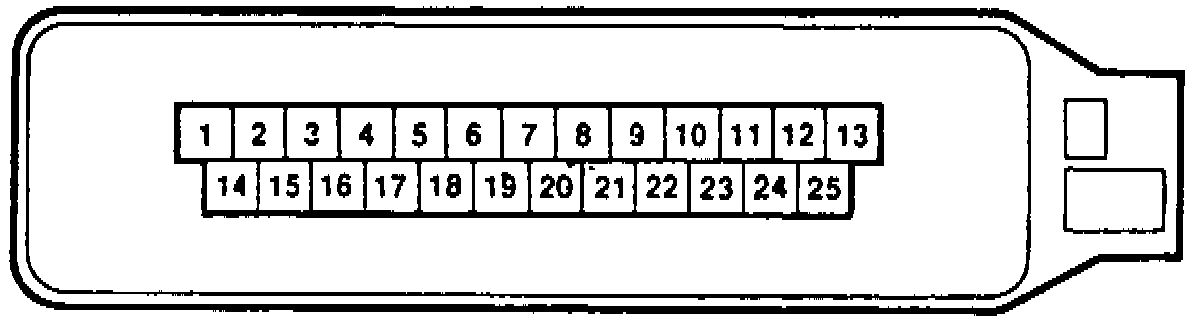

Fig. 6 ABS Control Module Connector View:

Fig. 7 ABS Control Module Connector Pins Measured Data:

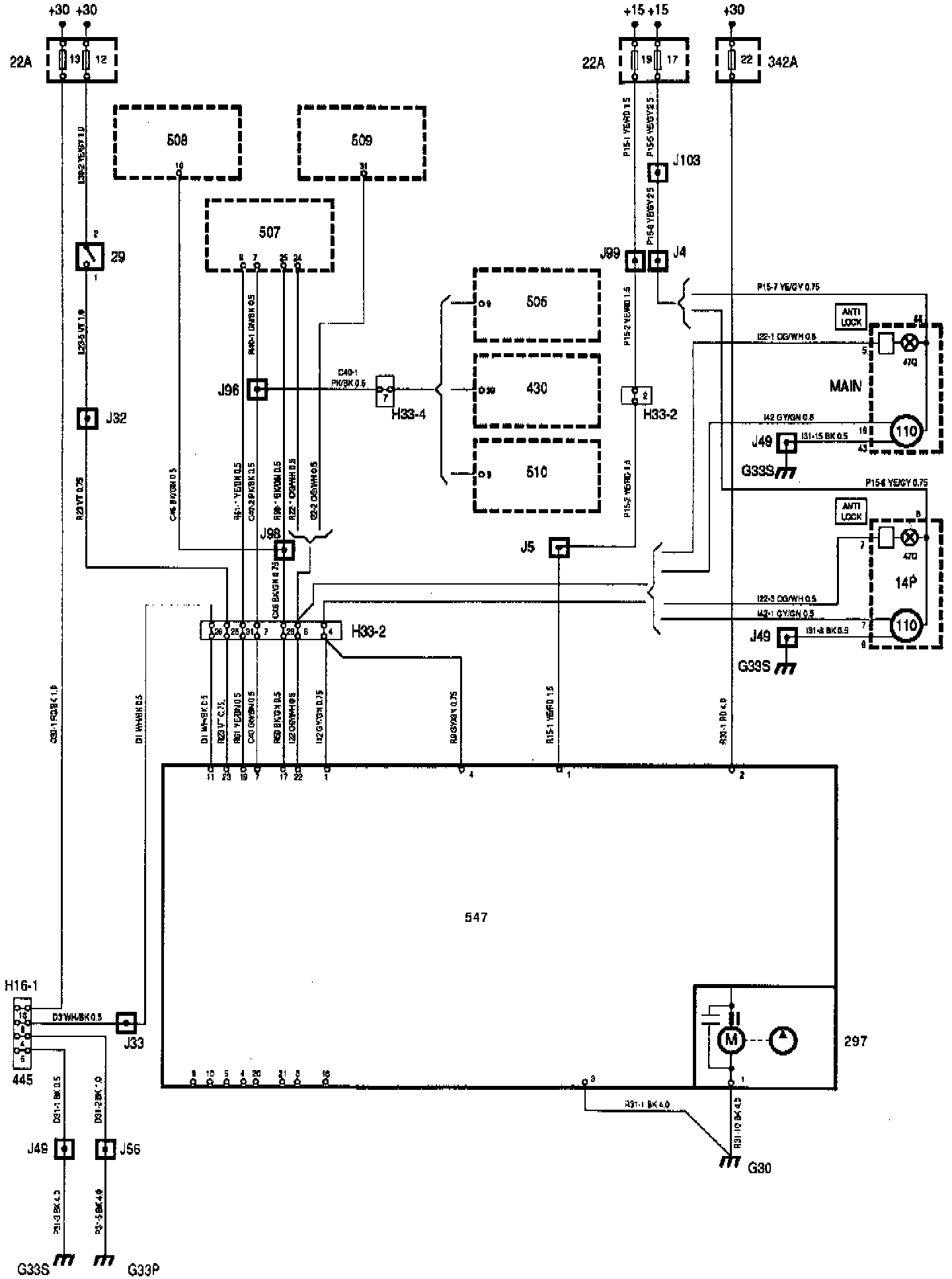

Fig. 8 ABS System Wiring Circuit (part 1 Of 3):

Fig. 8 Part 2 Of 3:

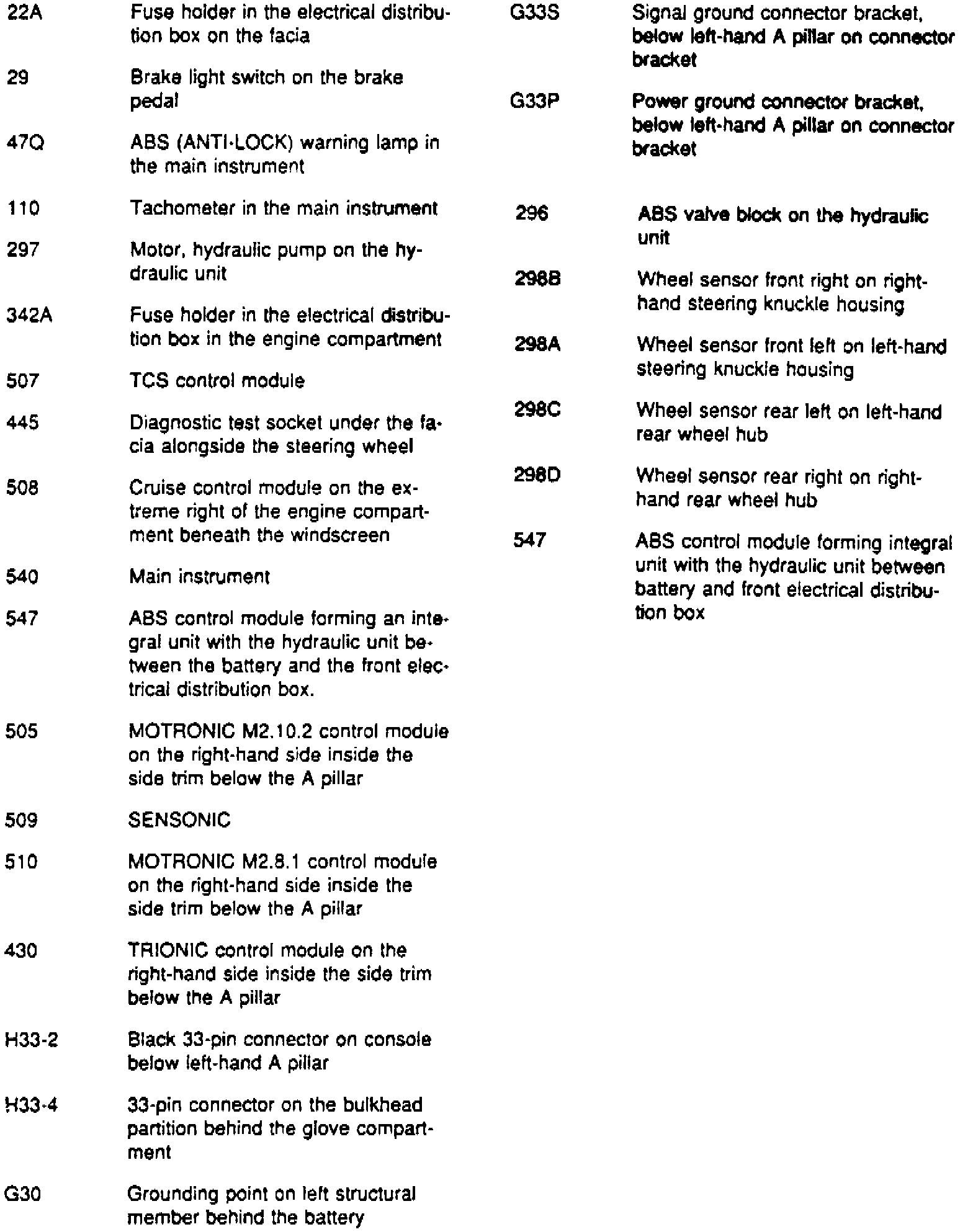

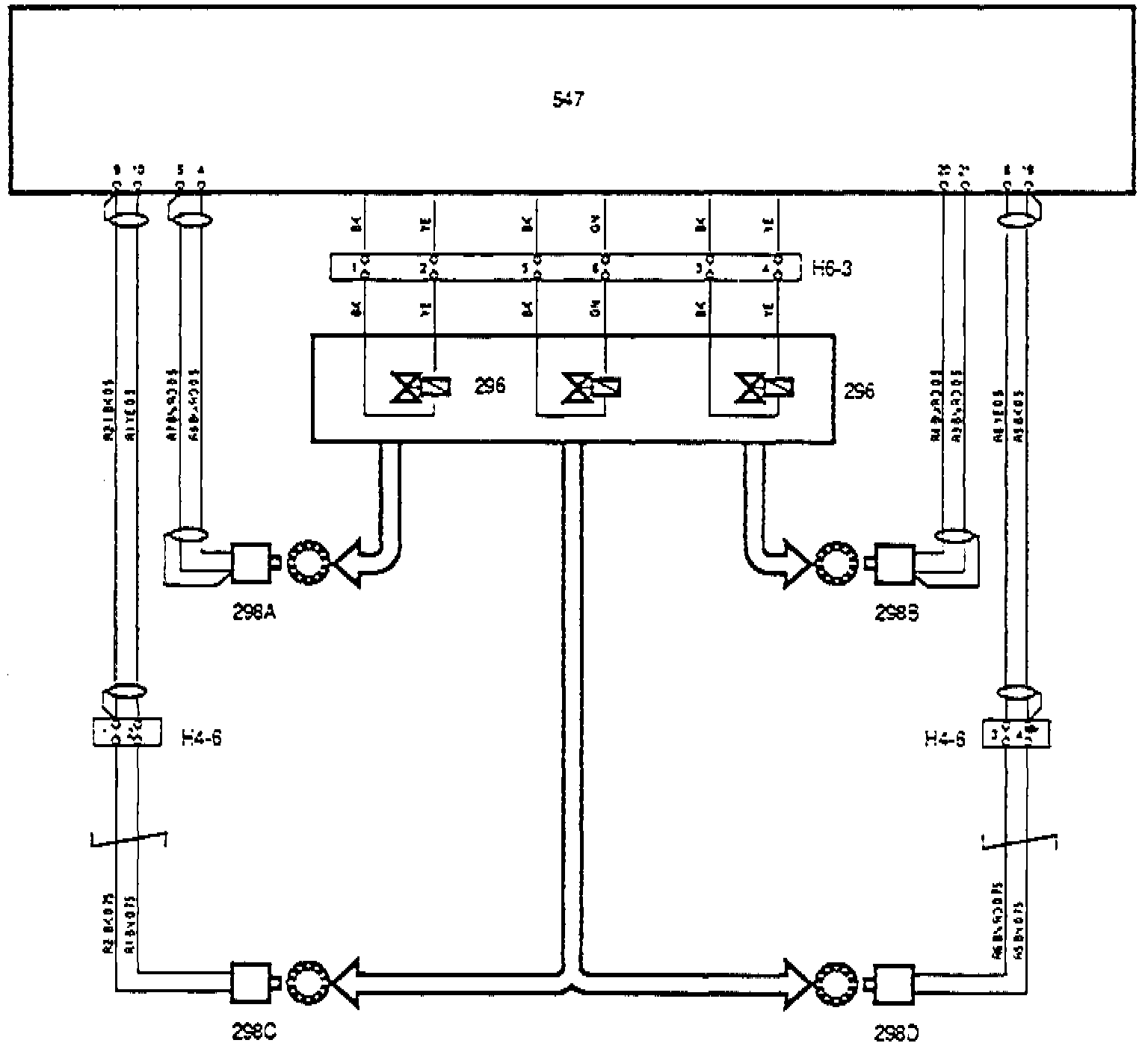

Fig. 8 ABS System Wiring Circuit (part 3 Of 3):

Refer to Fig. 6 and 7 for connector and connector pin identification.
1 Measurements must be performed using Breakout Box (BOB) connected between control module and control module connector.
2. Several voltage levels must be regarded as guide values. Apply common sense in judging whether a measured value is correct or faulty.
3. If any measured value is faulty, use the wiring diagram, Fig. 8, to find out which leads, connectors or components should be checked more closely.
