Service Procedure

Action:

1. Remove the seat as described in Service Manual Section 0 News, M1995.

WARNING
The seat must be in the forward position when it is lifted out of the car. Otherwise. there is a risk of personal injury. If the lateral adjusting handle is touched, the seat runner moves back with great force.

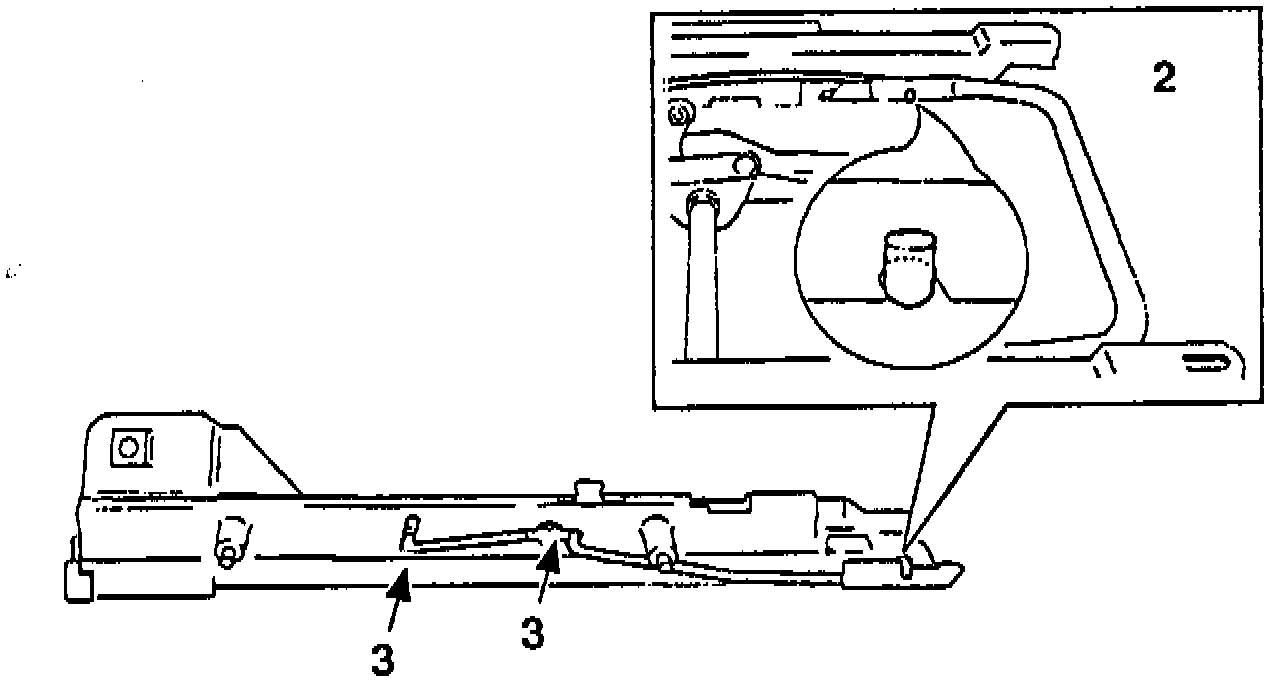

Figure 1. Unhooking And Detaching Springs:

2. Unhook the springs from the lateral adjusting handle. See Figure 1-2.

3. Detach the springs from the seat chassis using a screwdriver. Discard the old springs. See Figure 1-3.
4. Fit the new springs as follows:

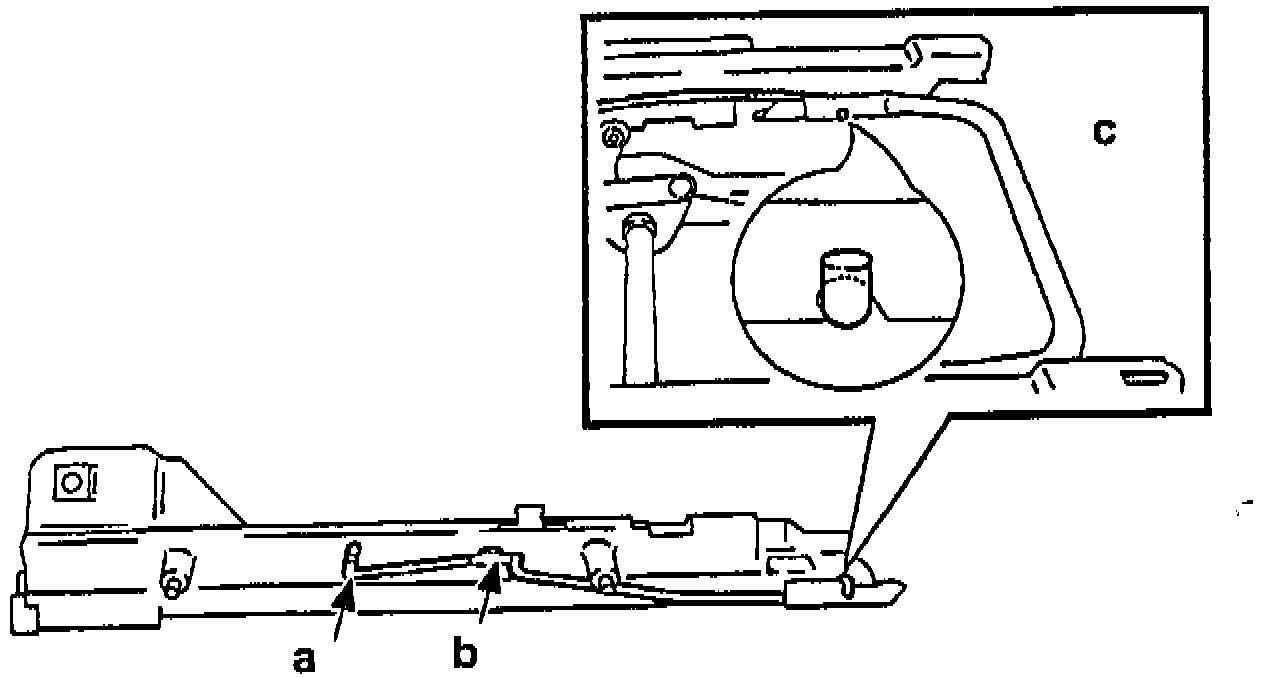

Figure 2. Fitting New Springs:

a. Place the spring bend in the groove on the seat chassis. See Figure 2-a.
b. Pull the U-bend on the spring into the groove on the seat chassis. See Figure 2-b. Lightly tap the spring at the U-bend to ensure that it is properly attached.
c. Hook the ends of the springs into the notches in the lateral adjusting handle. See Figure 2-c.

5. Refit the seat in the car and check its function. See Service Manual Section 0 News, M1995.
