Parts and Warranty Information

Parts:

Spring Kit 4654158
(Kit contains four springs, two for each seat.)

An initial parts order equal to 25% of the vehicles appearing on your Status List will be released automatically to you commencing October 7, 1994. Additional parts should be ordered using VOR ordering procedures.

Warranty Information:

Failure Code: 10290-78-0-05-01
RECALL ACTION CODE (RAC) = 3.
Labor Operation No.: 10290 for 0.6 hrs. (includes 0.2 administrative time).

The following information must be added to your DCS Tables:
Failed Part Code 10290 900 3 Dr. Frt. Spr. Recall 290
Labor Operation 10290 0.6 hrs.
M94-900 only 0.6
Engine type 9
Trans. type B
Begin and End Year 94

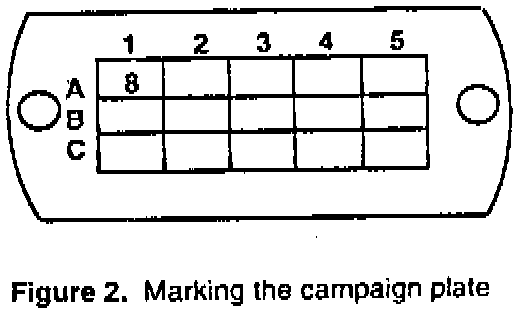

After the car has been modified, mark the campaign plate in position A1 using a numeral "8" (Saab Special Tool P/N 0297713).
