Door Mirrors - Adapting for Tall Drivers
CATEGORYBody
SECTION
8
ISSUE
01/96-0660
PAGE
134
CODE
843
Subject:
Adapting Door Mirrors For Tall Drivers
Application:
1994-900, 1995-900 Convertible
In order to improve the rearward vision of a tall driver, the door mirrors of their 1994 and later 900 model can be modified in the procedure detailed below.
Cars Affected:
1994-900 models
Parts:
Washer (6 required) 84 28 997
Action:

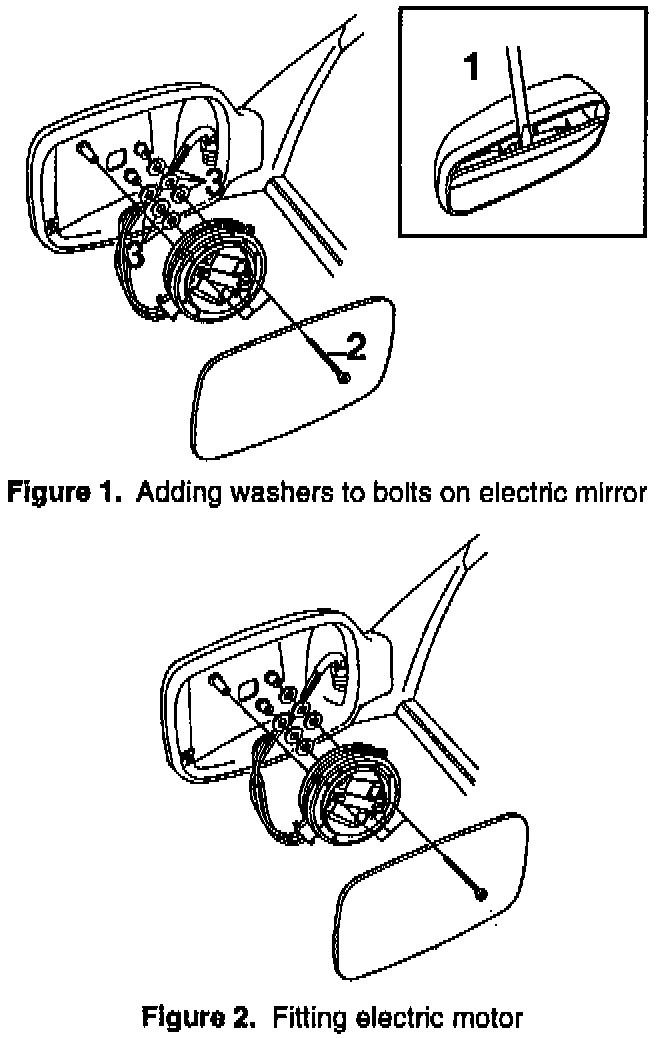

1. Remove the mirror glass, by carefully prying at the top edge of the mirror with a large screwdriver. The glass is secured by a snap fastener. See Figure 1, point 1.
2. Remove the bolts securing the electric mirror. See Figure 1, point 2.
3. Place 3 washers on two of the bolts as shown in Figure 1, point 3.
4. Fit the electric motor in place, first tightening the two bolts fitted with washers. Do not tighten them too hard. Then tighten the last bolt. See Figure 2.
Tightening torque: 13.2 in.lbs. (1.5Nm)
5. Fit the mirror glass by snapping it in place.
6. Check the operation of the mirror.
Warranty Information:
To resolve a customer complaint for a vehicle in warranty, submit a claim using the following information:
Failure code: 84370-79-3/4-05
Labor operation number: 84370 for 0.2 hr.
