Home >> Saab >> 1994 >> 900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

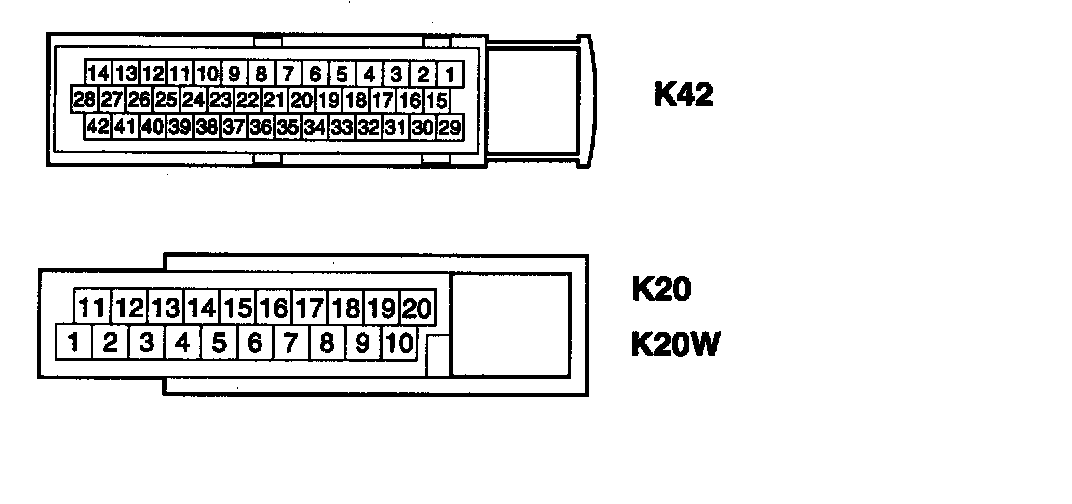

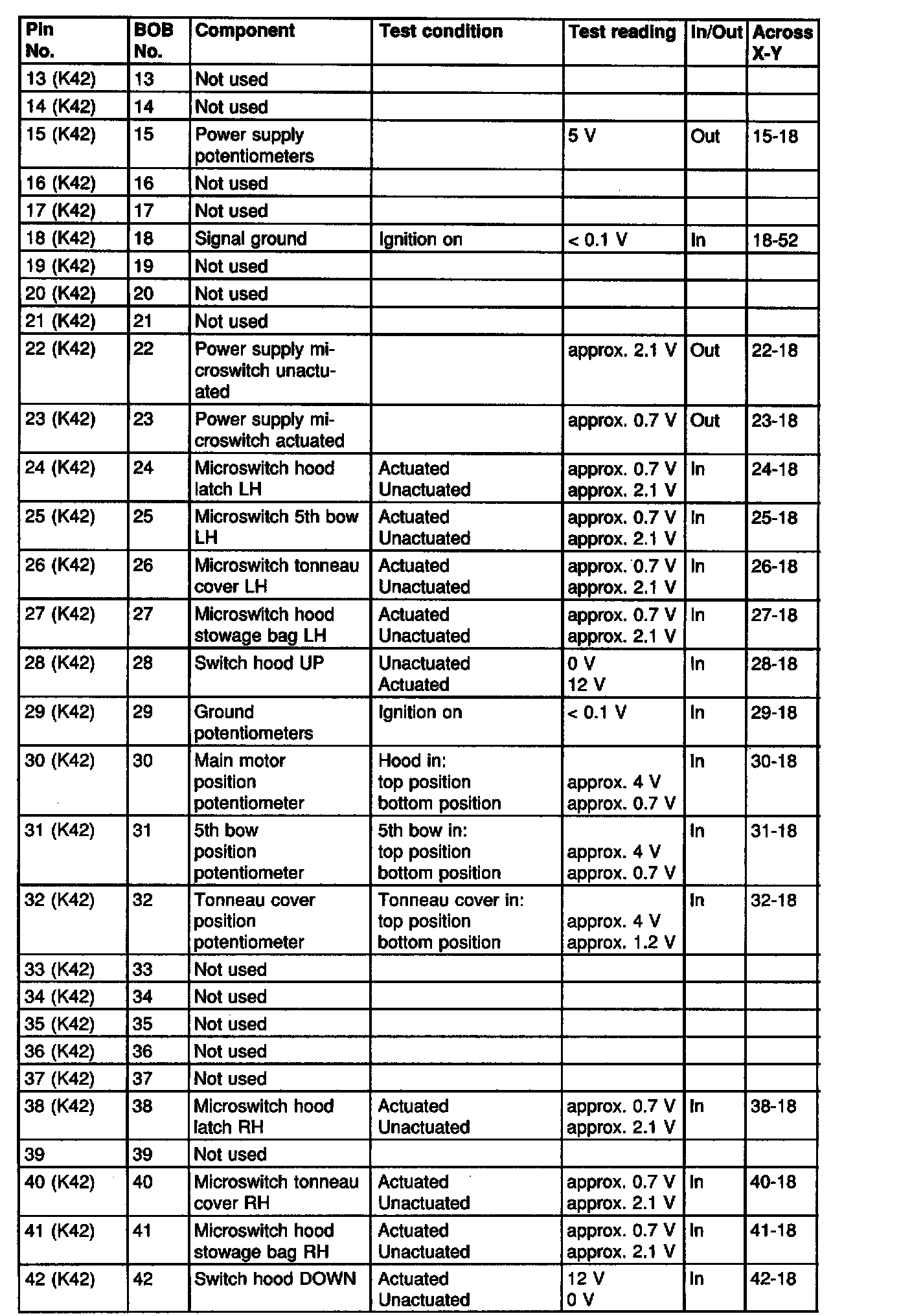

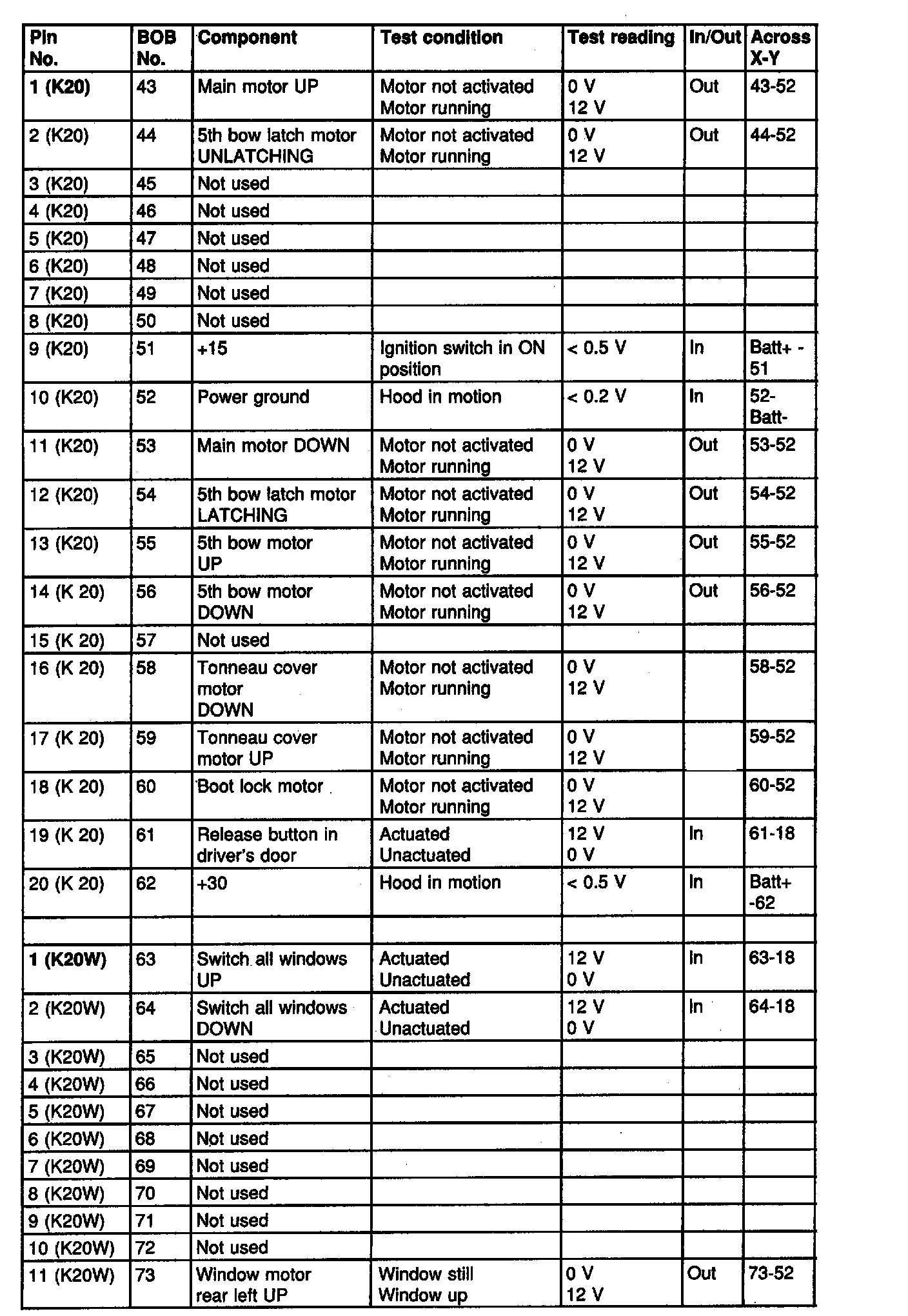

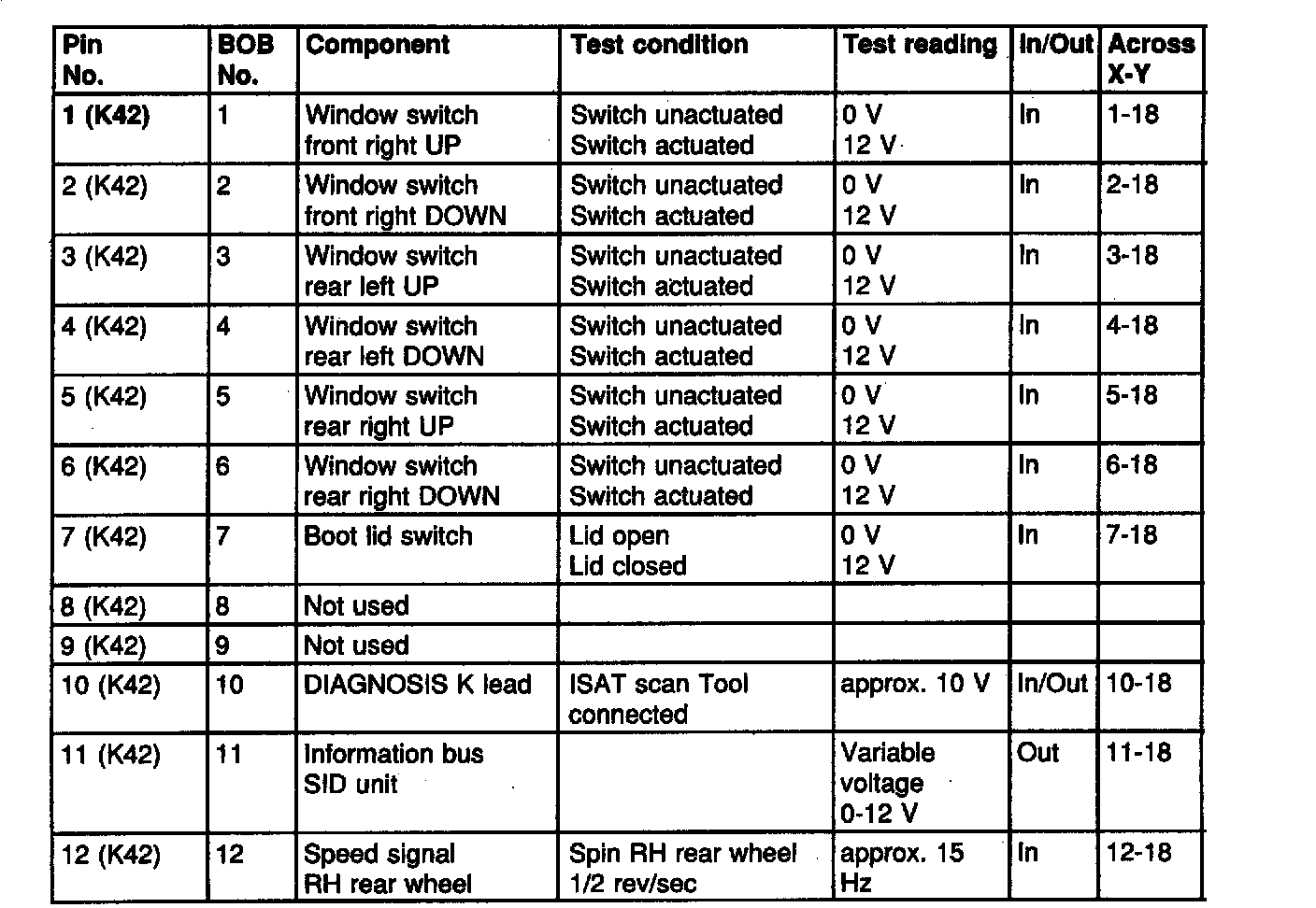

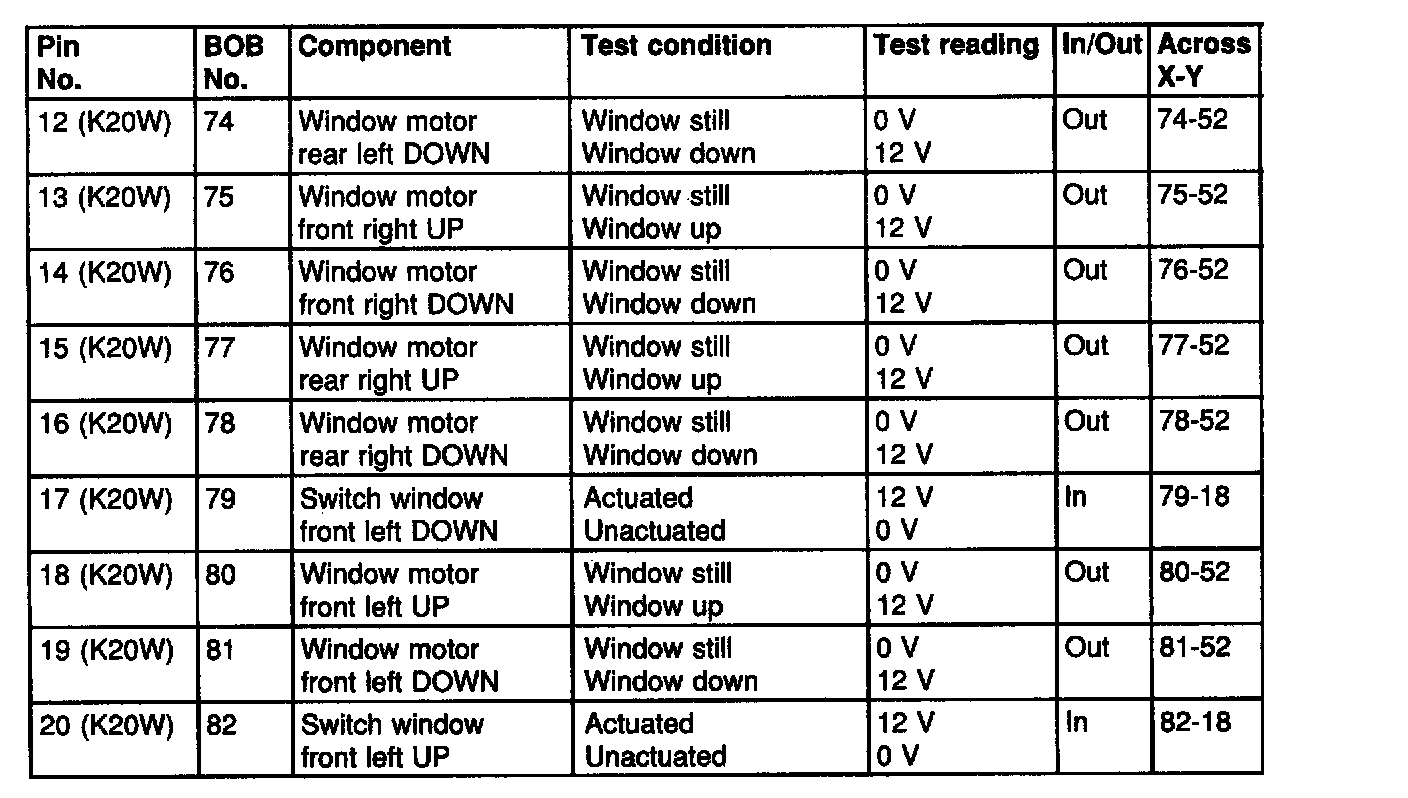

Pinout Values and Diagnostic Parameters



Important: When checking control module connections the control module microprocessor must not be in the idle state. Description and Operation
