Mirrors: Service and Repair

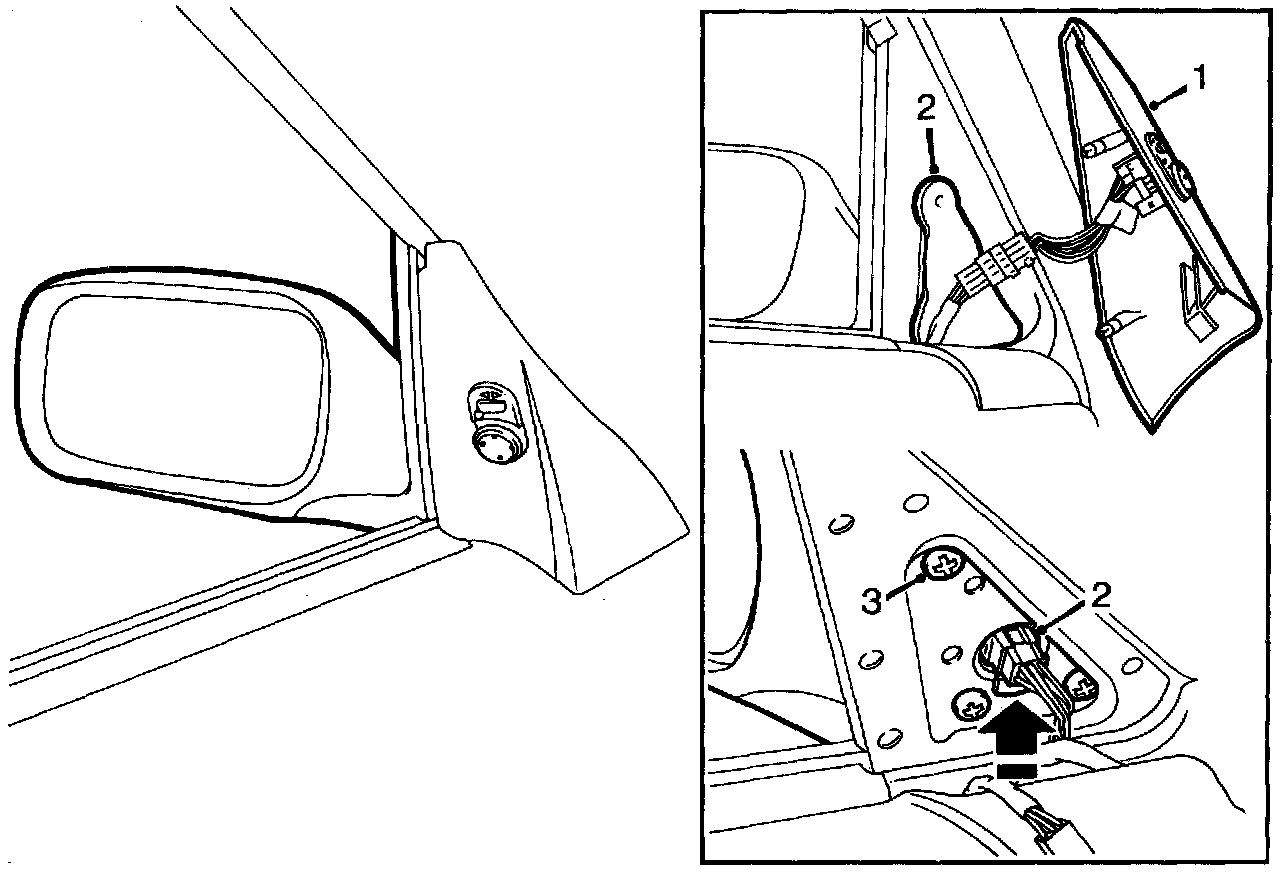

1 Remove the black cover on the inside of the driver's door by the door mirror.
2 Unplug the connector from the door mirror motor.
3 Remove the screws and lift away the mirror.
Install in reverse order.
