d��BElectrically Heated Rear Window And Door Mirrors-LHD:

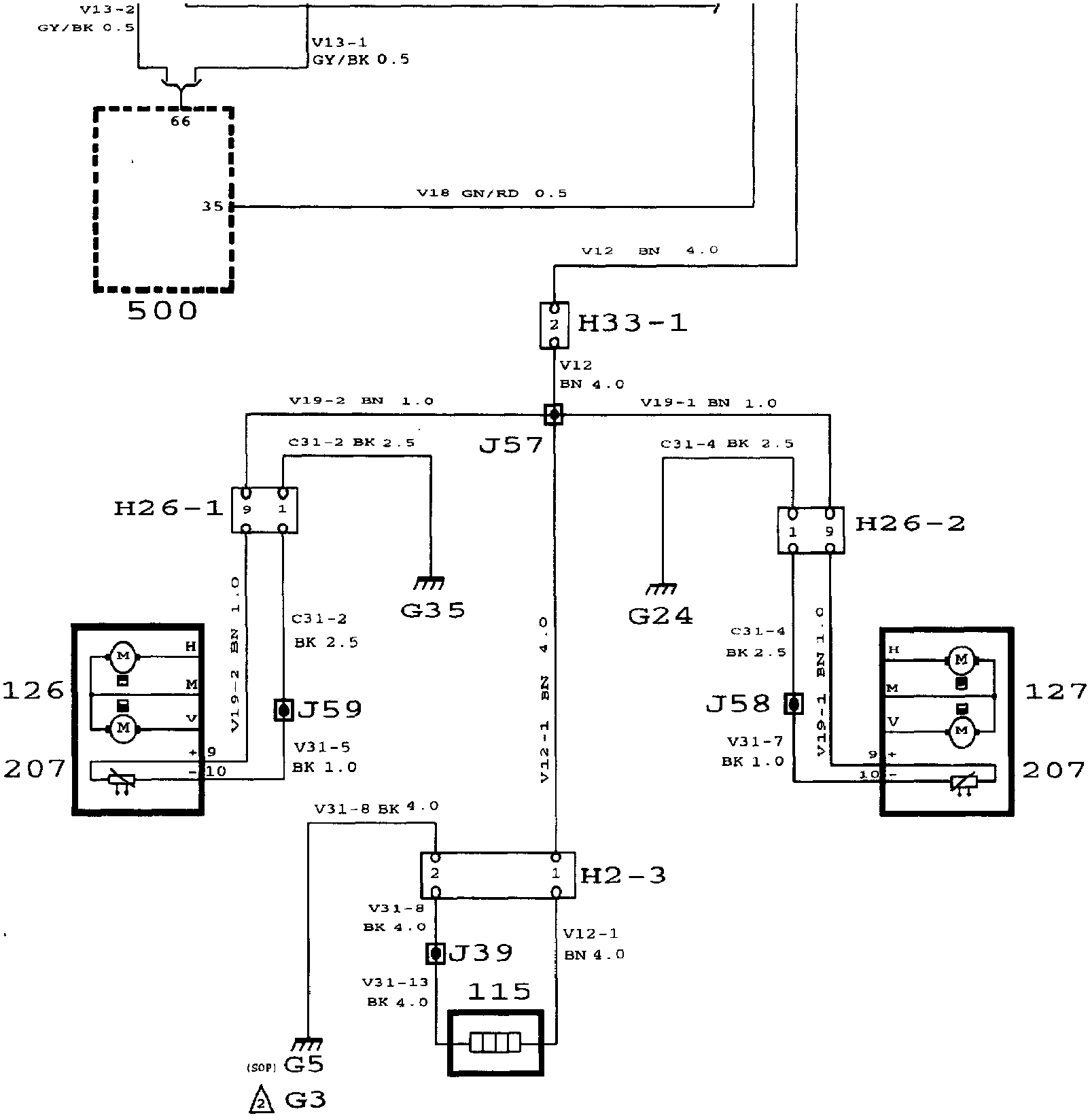

WIRING DIAGRAM

Electrically Heated Rear Window And Door Mirrors: Component Location:

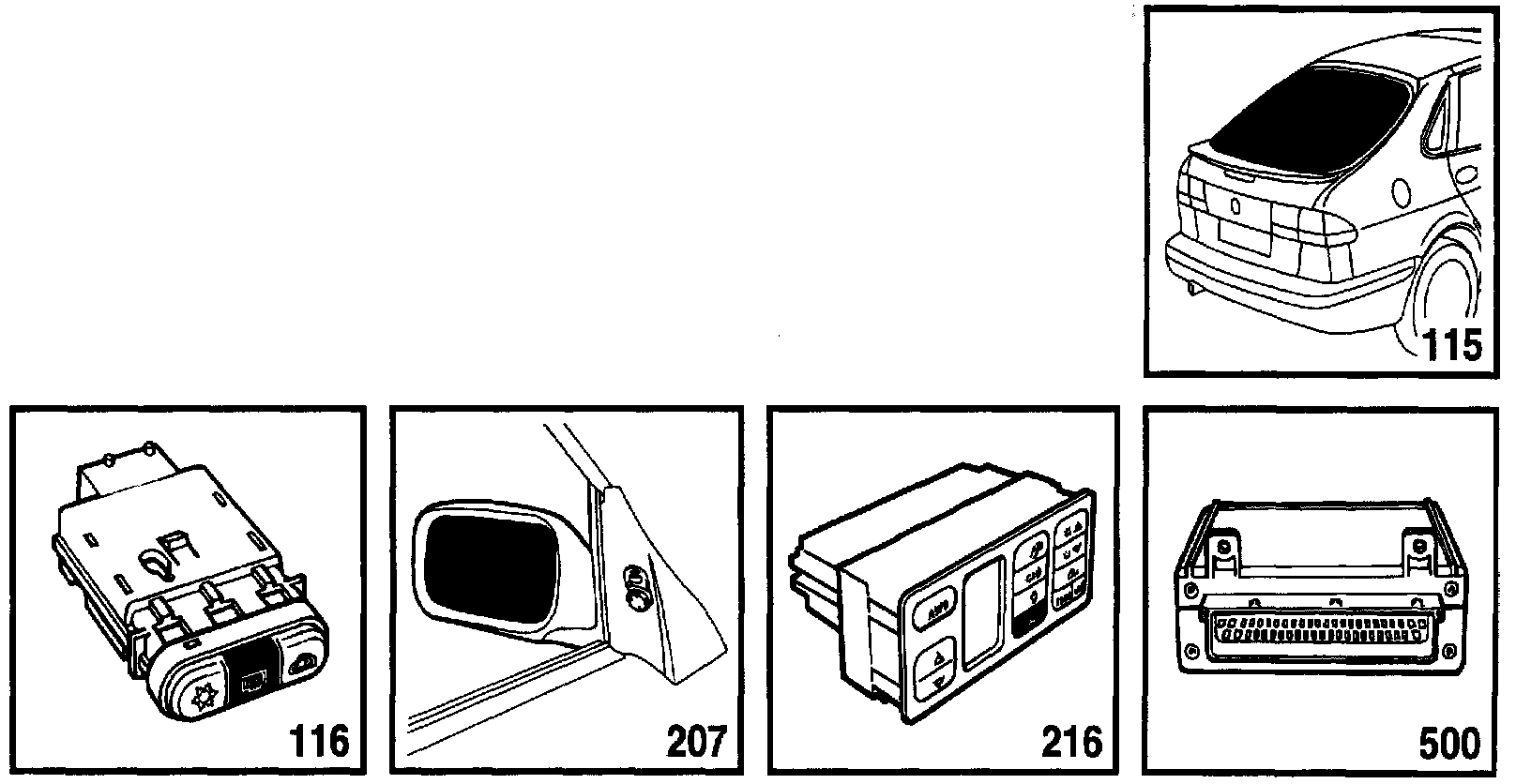

COMPONENT LOCATION VIEW

Electrically Heated Rear Window And Door Mirrors: Component ID:




COMPONENT ID
22A Main fuse board in the dashboard.
113 Relay, electrically heated rear window, on main relay board in the dashboard.
115 Electrically heated rear window.
116 Switch, electrically heated rear window, on heating and ventilation control panel.
126 Motor, electrically adjustable door mirror, driver's side.
127 Motor, electrically adjustable door mirror, passenger side.
207 Heating elements in the door mirrors.
216 ACC control module in centre of dashboard.
500 ICE control module
LHD: above main relay board in dashboard
RHD: behind main relay board in dashboard

2-Pin Connector
H2-3 In the luggage compartment behind the left-hand wheel housing.

26-Pin Connectors
H26-3 Connector, right-hand front door.
H26-4 Connector, left-hand front door.

33-Pin Connector
H33-1 Grey connector on the bracket below the left-hand A pillar.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G14 Grounding point, left-hand front seat member, under the seat.
G35 Grounding point, dashboard, behind the connector bracket below the left-hand A pillar.

DESCRIPTION OF OPERATION
The electrically heated rear window and door mirrors can be switched on and off by means of switch 116 on the heating and ventilation control panel.

At the same time as the electrically heated rear window is switched on, current is also supplied to elements 207 in the electrically heated door mirrors 126 and 127.

Current is supplied via fuse 1 to pin 30 of relay 113. When the ignition switch is in the Drive position, current is also supplied via fuse 21 to spring-loaded switch 116.

When the switch is depressed, current is supplied to pin 66 of the ICE control module. The ICE control module grounds pin 85 of the relay and the bulb in the switch is supplied with current at the same time.

From pin 87 of the relay the circuit is then connected to ground via electrically heated rear window 115 and the electrically heated door mirrors.

The ICE control module grounds the relay for 12 minutes but checks the battery voltage every three minutes. Should the battery voltage drop below a certain level, the ICE control module will stop grounding the relay.

FAULT DIAGNOSIS HINTS
The electrically heated rear window and door mirrors are activated by turning the ignition switch to the Drive position.
1. Check that fuses 1 and 21 are intact and supplied with current.
2. Check connectors, wiring and ground connections.
