Electrically Tailgate Release

Electric Tailgate Release: Component Location:

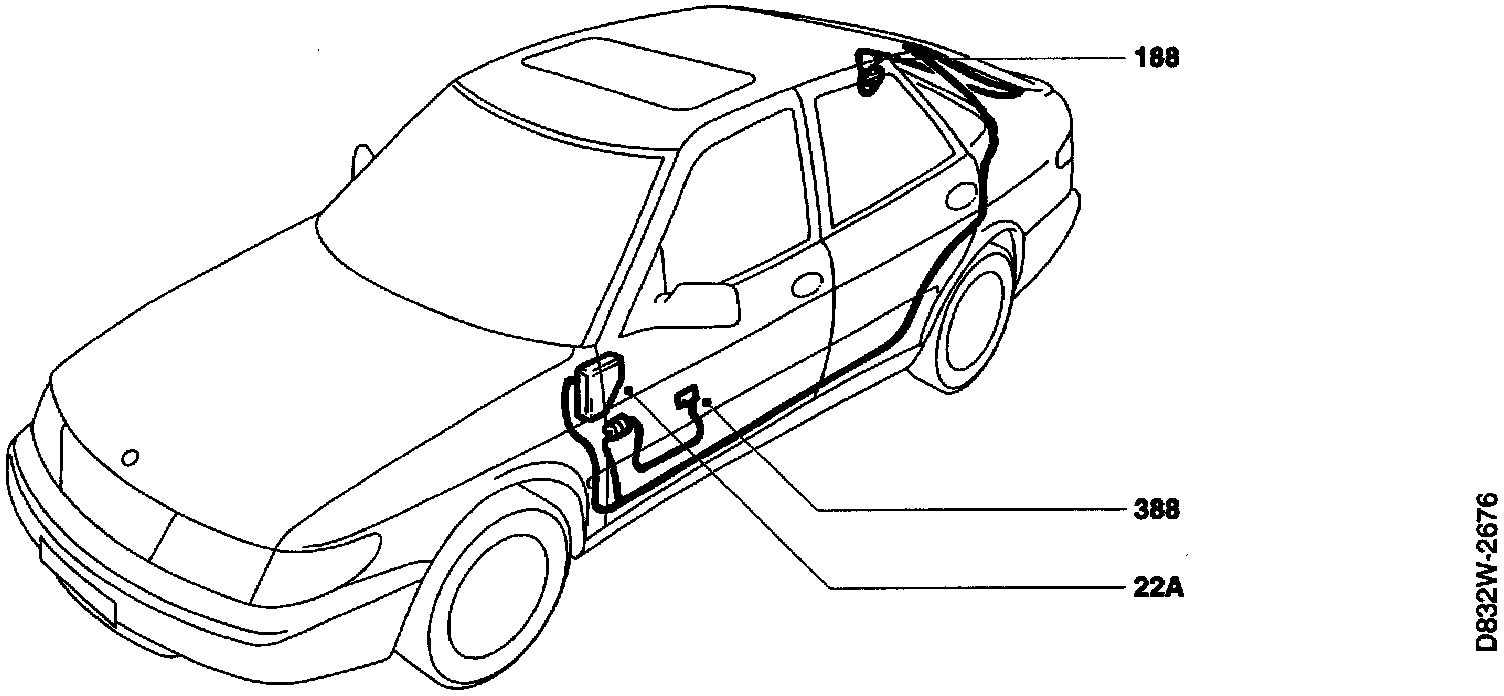

COMPONENT LOCATION VIEW

Electric Tailgate Release: Component ID:

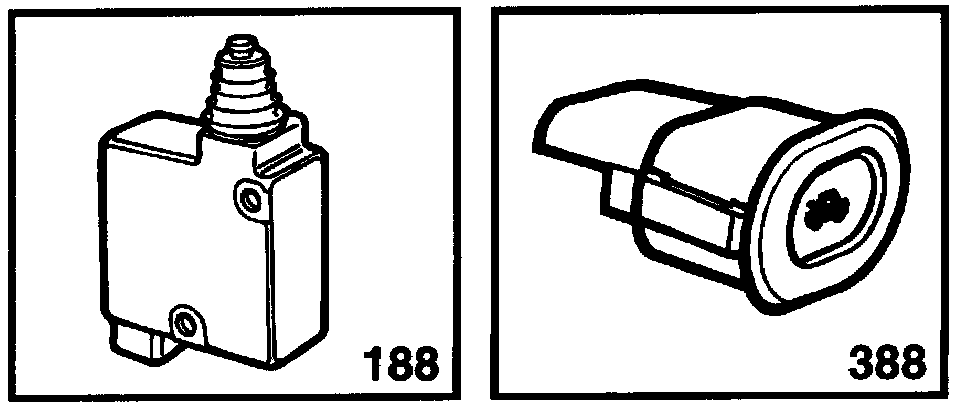

COMPONENT ID
22A Main fuse board in the dashboard.
188 Motor, central locking system, in the tailgate.
388 Switch, electrically operated tailgate release, on the driver's door.

4-Pin Connector
H4-5 In the luggage compartment behind the left-hand wheel housing.

26-Pin Connectors
H26-1 Connector, left-hand front door.
H26-2 Connector, right-hand front door.

33-Pin Connector
H33-1 Grey connector on the bracket below the left-hand A pillar.

Grounding Points
G3 Grounding point, luggage compartment, below left-hand rear light cluster.
G24 Grounding point, right-hand front seat member, under the seat.
G35 Grounding point, dashboard, behind the connector bracket below the left-hand A pillar.
